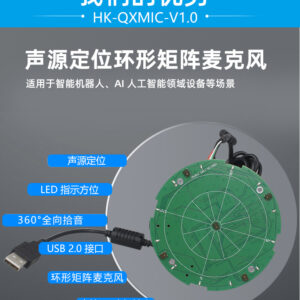

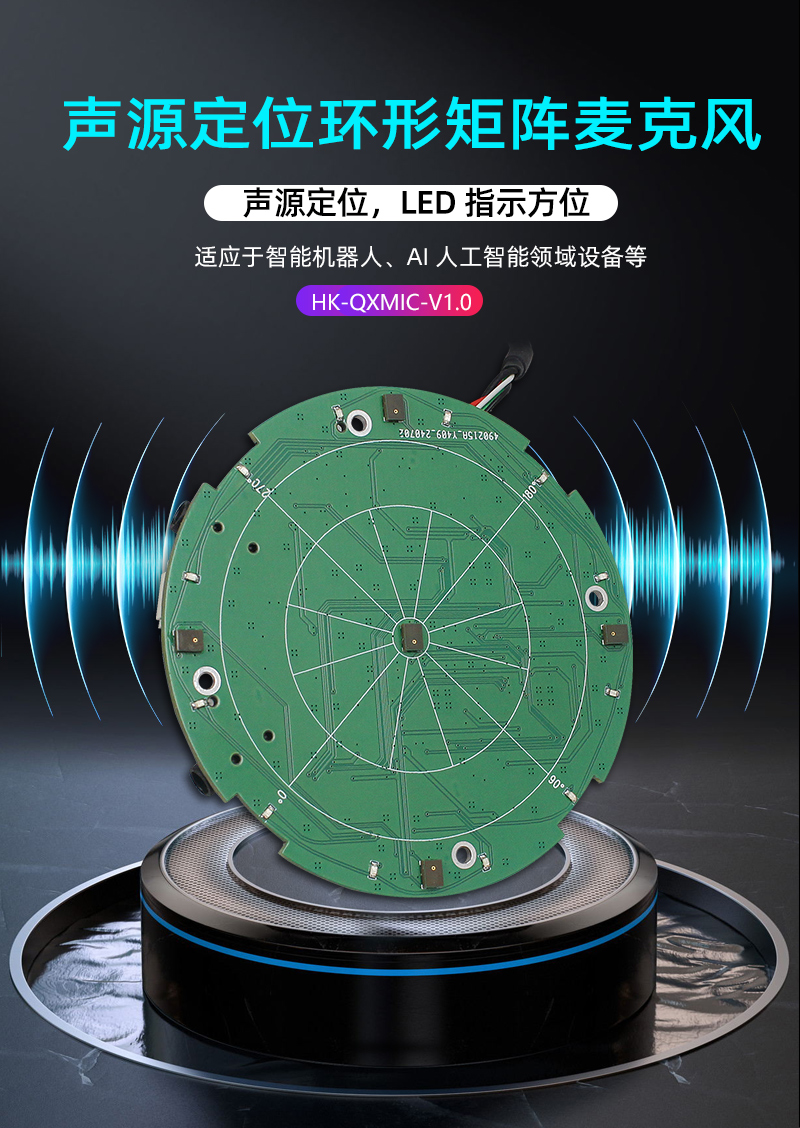

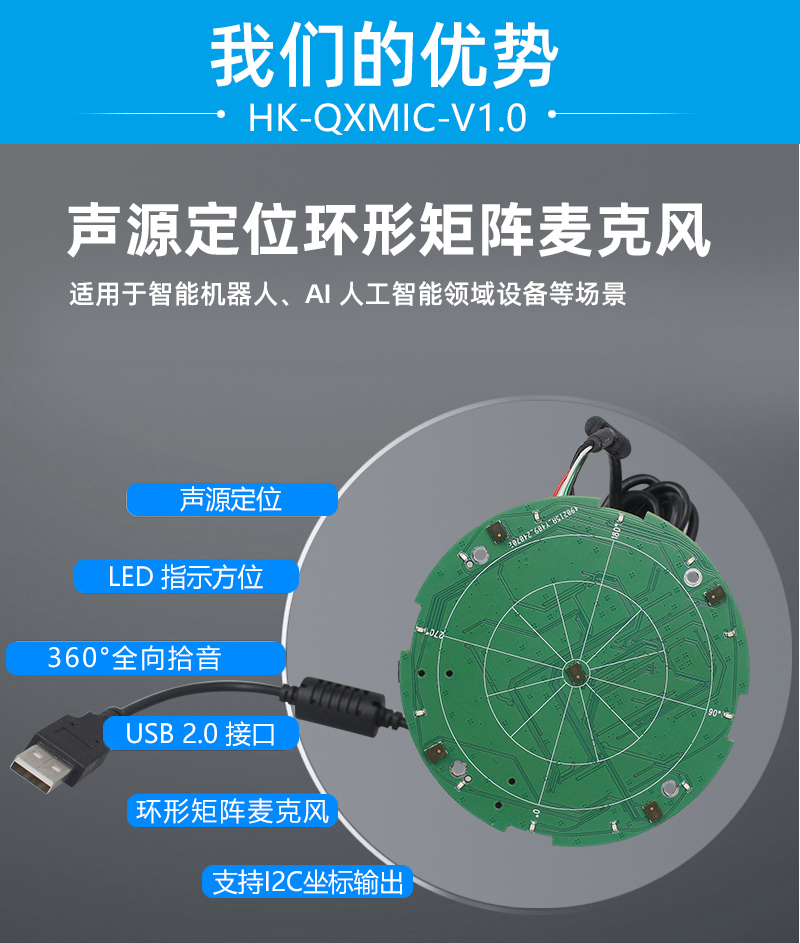

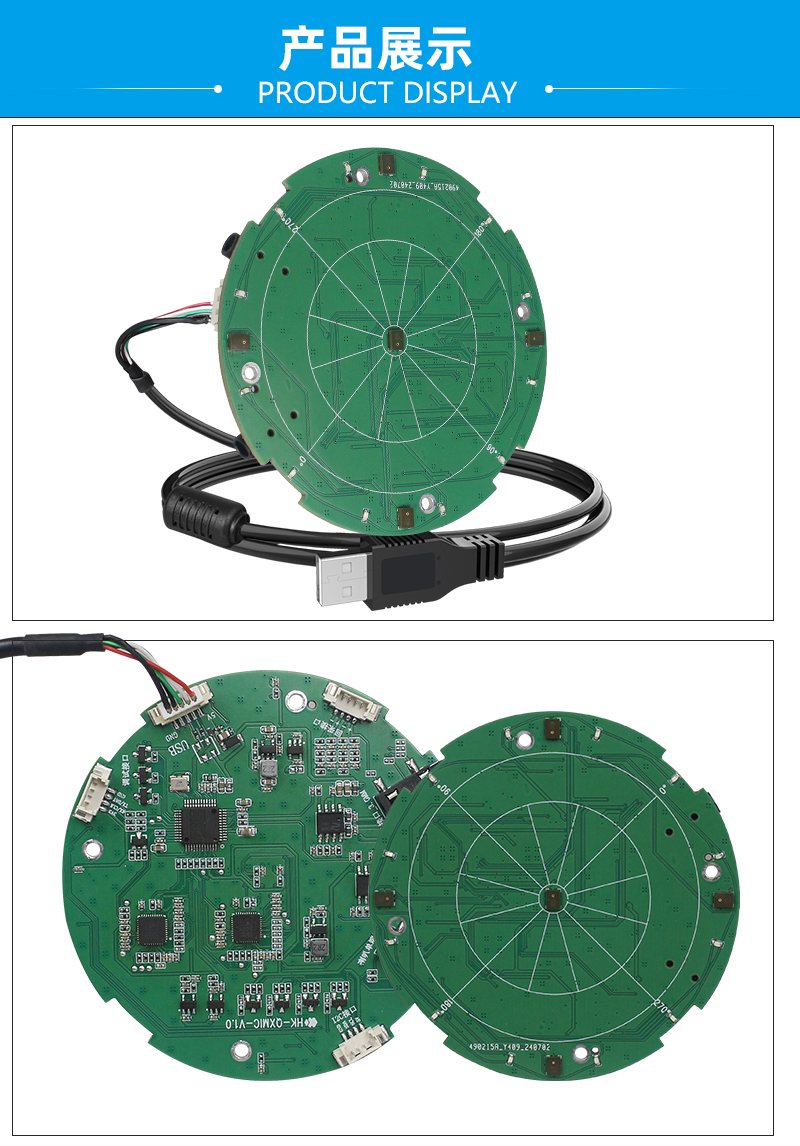

Sound source positioning the ring matrix microphone
Product description:
USB 2.0 interface;
Ring matrix microphone;

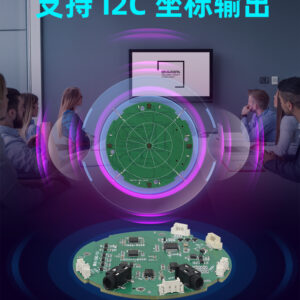

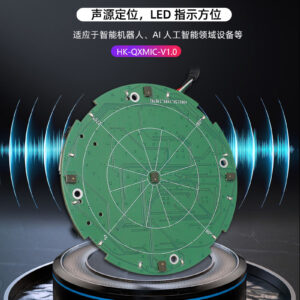

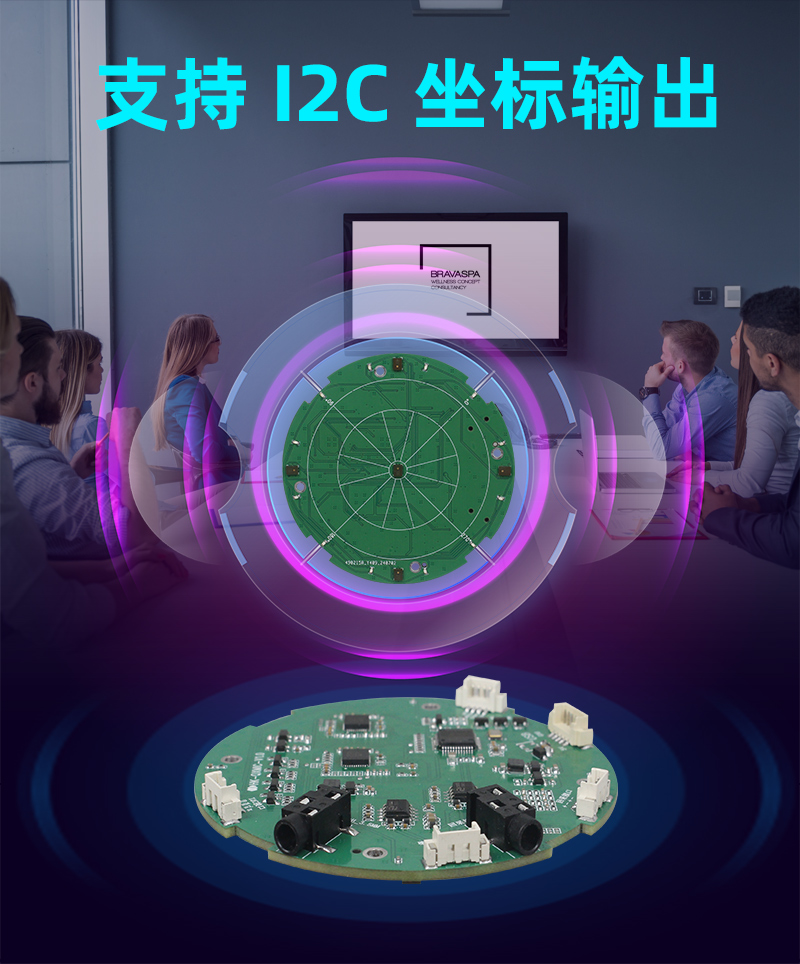

360° omnidirectional sound pickup; sound source positioning, LED indication direction; support 12C coordinate output;
Suitable for intelligent robots, AI artificial intelligence equipment and other scenarios:

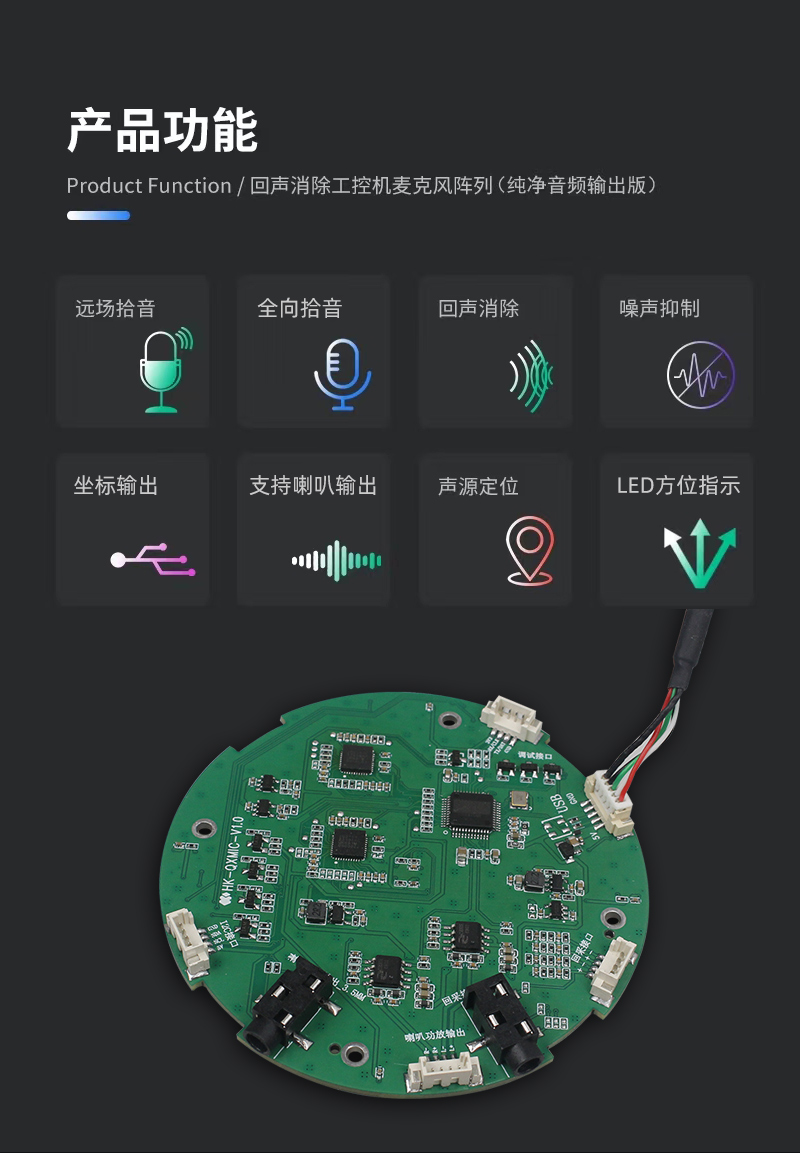

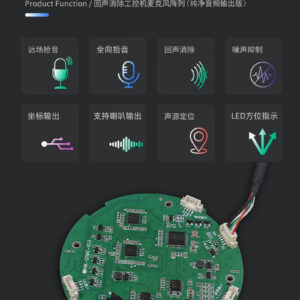

The array microphone board has a built-in circular 5-way microphone array algorithm, including echo cancellation, speech enhancement, sound source localization, noise suppression and automatic gain algorithms. It can realize omnidirectional sound source localization and calculate the angle and azimuth coordinates of the human voice, which is very suitable for the sound pickup function requirements of application fields such as human-computer interaction and AI smart devices.
| Microphone type | Omnidirectional ring array microphone |
| Number of digital wheat | 5MIC array microphone |
| The farthest pick-up distance | 2 meters is best |
| Audio capture rate | 48KHz @16bit
|
| Sensitivity | -26±1dB |
| SNR | 65 dB（A） |
| AOP | 120 dB SPL
|
| Directivity
|
Omnidirectional 360° |
| supporting function
|
（AEC）
（The sound of man is enhanced） （Positioning of sound sources ） （Noise Suppression） （Automatic Gain Control TBD dB)
|
| Hardware characteristics
|

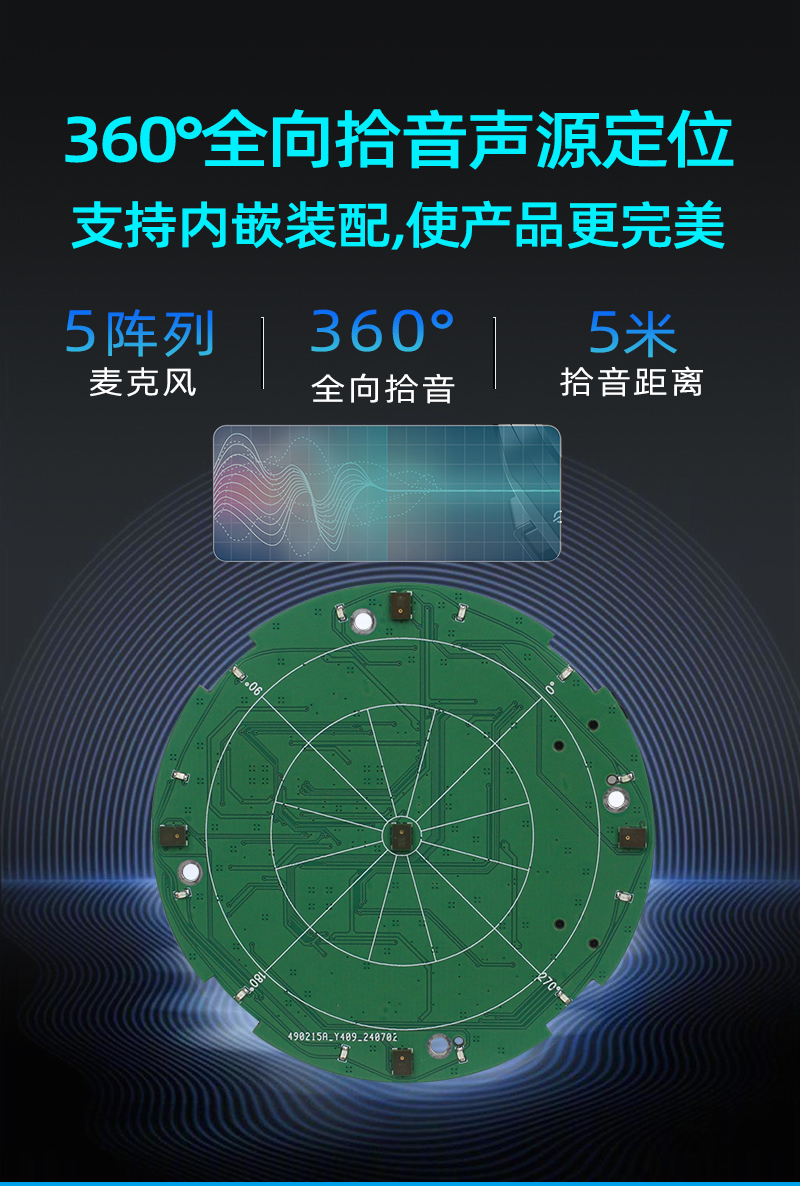

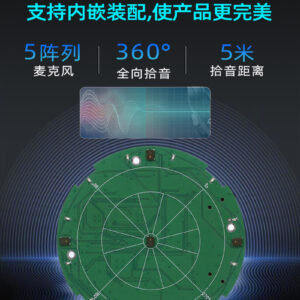

360° omnidirectional sound pickup

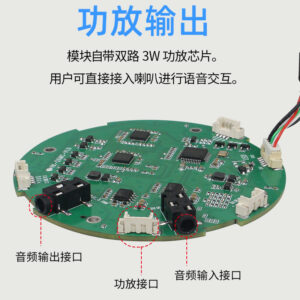

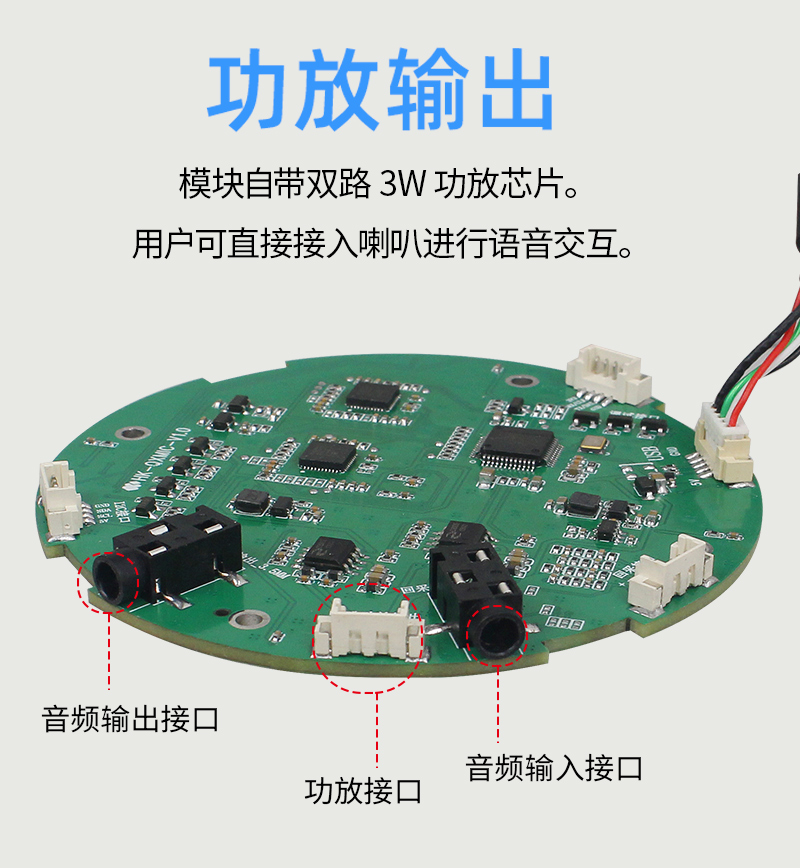

Supports USB Audio Class 1.0 (UAC 1.0) Supports speaker amplifier output (dual 4Ω5W) Ring-shaped 5-way microphone array Supports indicator light to indicate the direction of the sound source and output coordinates |
| Algorithm features
|
(AEC)
（PSS） (NS) (AGC)
|
| Connect the interface
|
1*USB-5pin-1.25mm
|
| USB power supply voltage
|
5V±5%
|
| Power Consumption
|
Regular work ：1W5V, 220mA（Max）
|
| structure size
|
Dia :77MM
|
