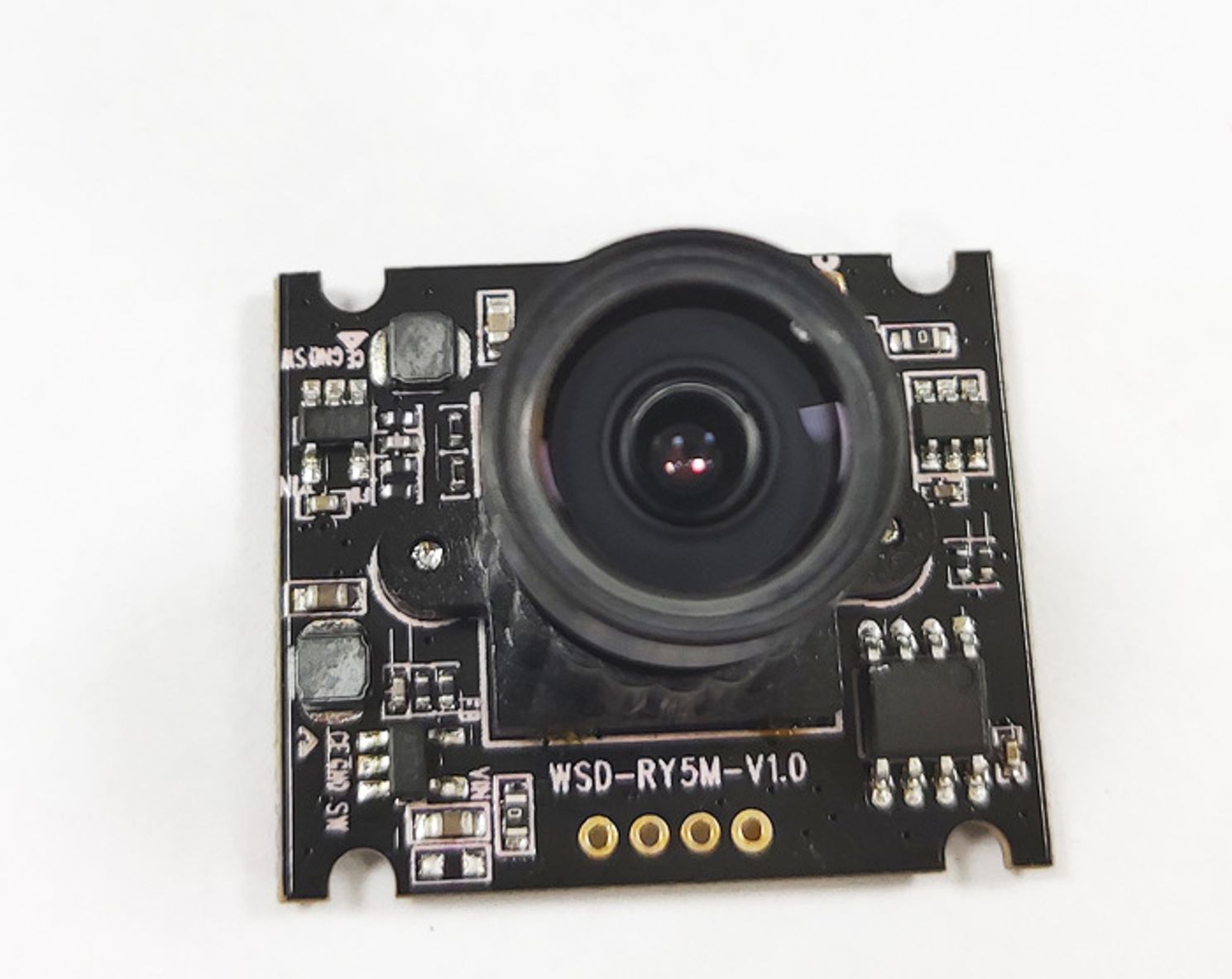

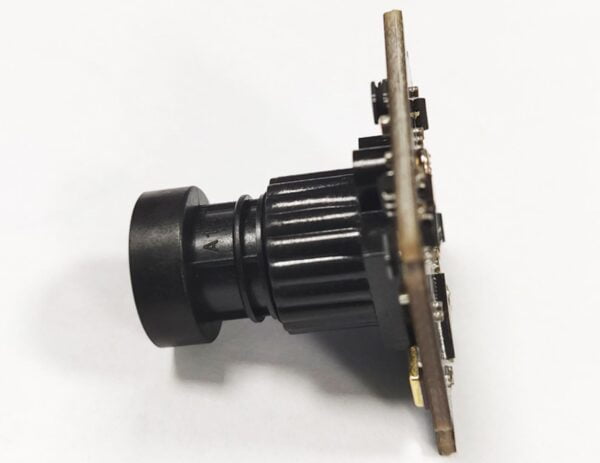

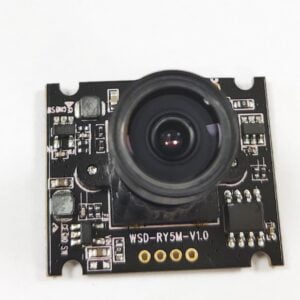

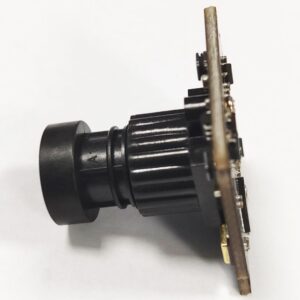

Ultra HD 4208*3120 30FPS 13MP MIPI camera module with Sony IMX377
- Ultra-High Definition Imaging: Equipped with Sony IMX377 sensor, delivering stunning Ultra HD 4208*3120 resolution for crisp, vibrant visuals that immerse viewers in every frame.
- High-Speed Burst Capture: Captures moments at 30FPS (Frames Per Second), enabling seamless capture of fast-moving objects or continuous action scenes, ensuring no moment is missed.
- 13MP Imaging Power: Boasting a 13-Megapixel (13MP) camera module, it ensures superior clarity and resolution in both photos and videos, catering to professional photography and demanding applications.
- Efficient MIPI Interface: Utilizes MIPI interface for swift and stable data transmission, minimizing latency and interference, enhancing shooting efficiency and image quality.
- Versatile Applications: Designed for flexibility, this camera module finds applications across security surveillance, machine vision, drone aerial photography, medical equipment, and more, meeting the diverse needs of various industries for high-definition imaging.
Detail Information
| Type: | MIPI Camera Module | Sensor: | 1/2.3’’ sony imx377 |
|---|---|---|---|
| Resolution: | 3840*2880 | Dimensions: | Customizable |
| Lens FOV: | FOV95°(optional) | Focus Type: | Fixed Focus |
| Interface: | mipi | Feature: | Lens |
Key Feature:
13MP resolution with SONY IMX377 CMOS sensor

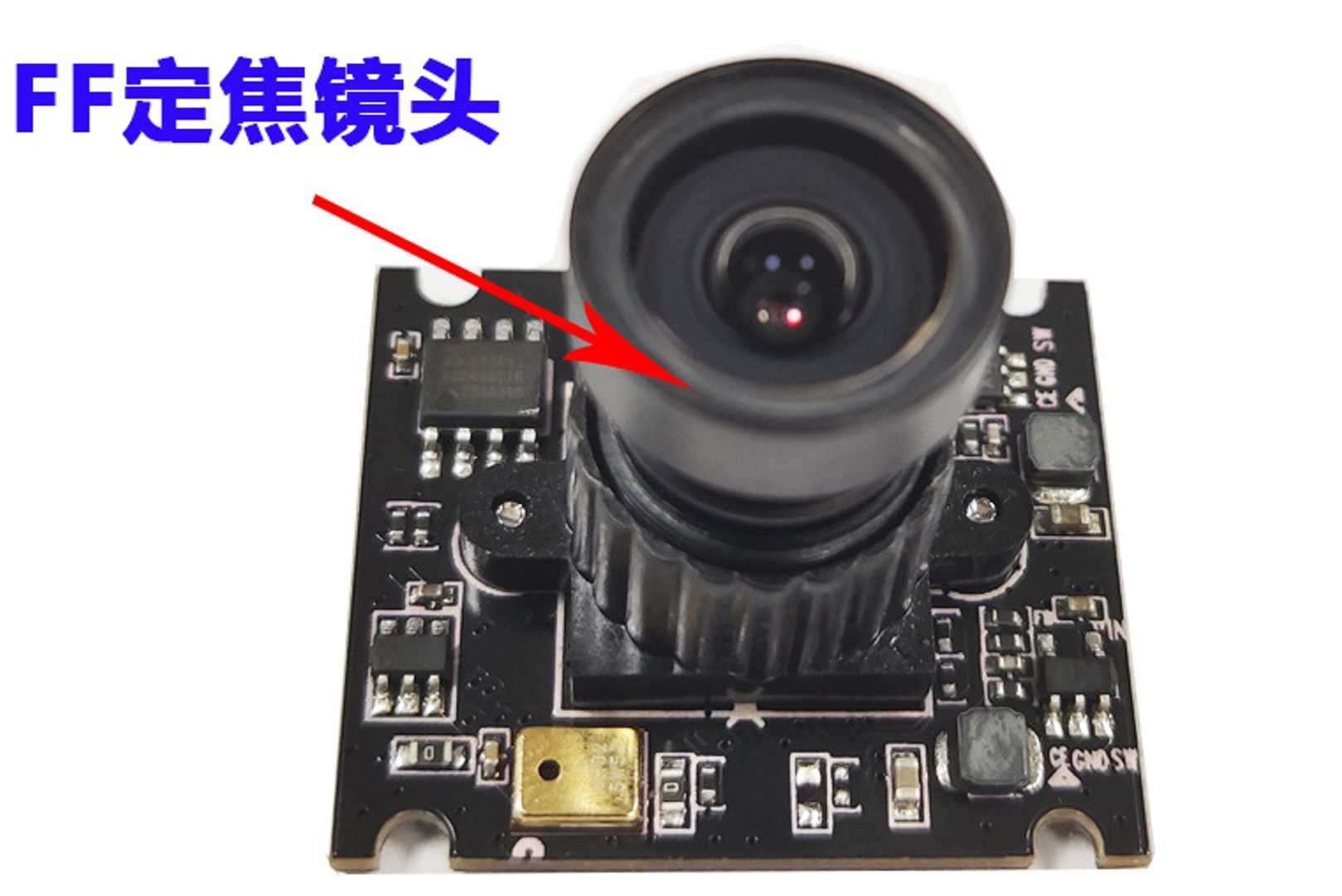

Fixed Focus
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
3840*2880 15fps 3840*2160 15fps
2592*1944 15FPS 2048*1536 15fps
1920×1080 15fps 1600*1200 15fps
1280*960 15fps 1280*720 15fps
1024*768 15fps 960*720 15fps
800*600 15fps 640*480 15fps
320*240 15fps
Specification
| Model No | hstd-13MP-imx377-FF-mipi |
| Sensor | 1/2.3’’ SONY IMX377 CMOS |
| Pixel | 13 Mega Pixel |
| Most effective pixels | 3840*2880 |
| Pixel Size | 1.55µm x 1.55µm |
| Focus type | Fixed Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|

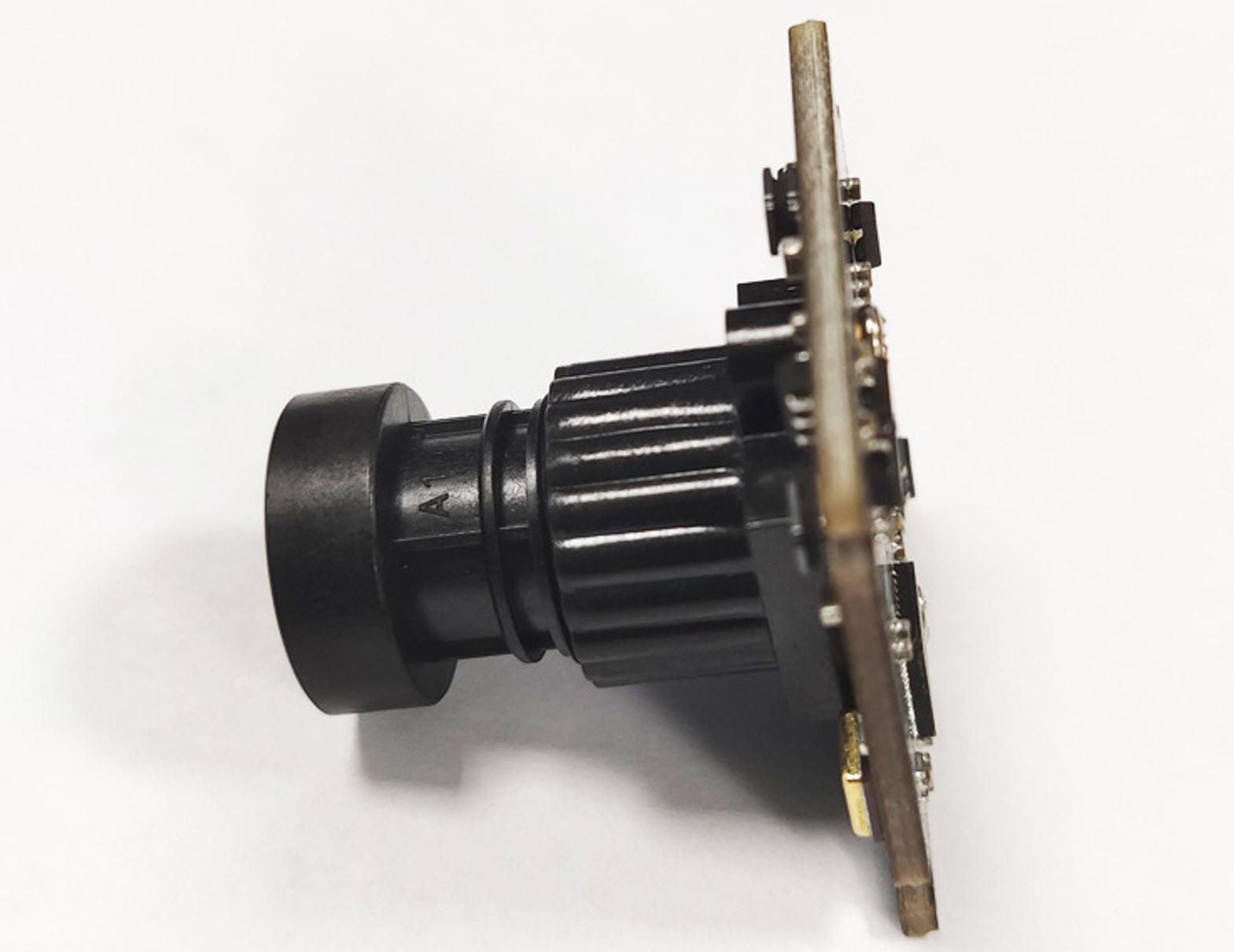

Lens |
H FOV: 95° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
#telecommunications #iot #robotics #ai #embedded #hardware #medicaldevice #drone #artificialintelligence #security #surveillance #video #imaging #3d #facialrecognition #camera #electronics #robot #consumerElectronics #machinevision #deeplearning #vr #ar #virtualreality #accesscontrol #tablet #smartphone
Shenzhen HSTD Import and Trade Co., Ltd.,

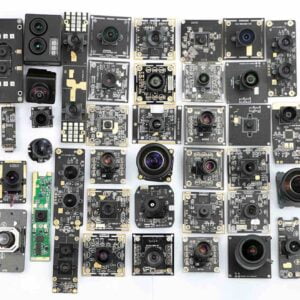

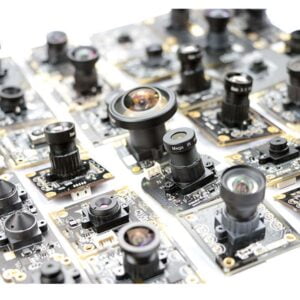

We customize all kinds of AHD /USB /MIPI /DVP /IPC camera module from 1 MP to 48 MP as per your request
