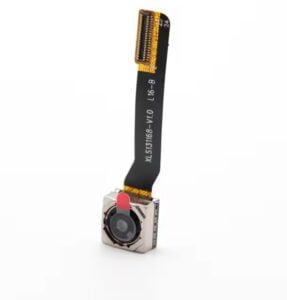

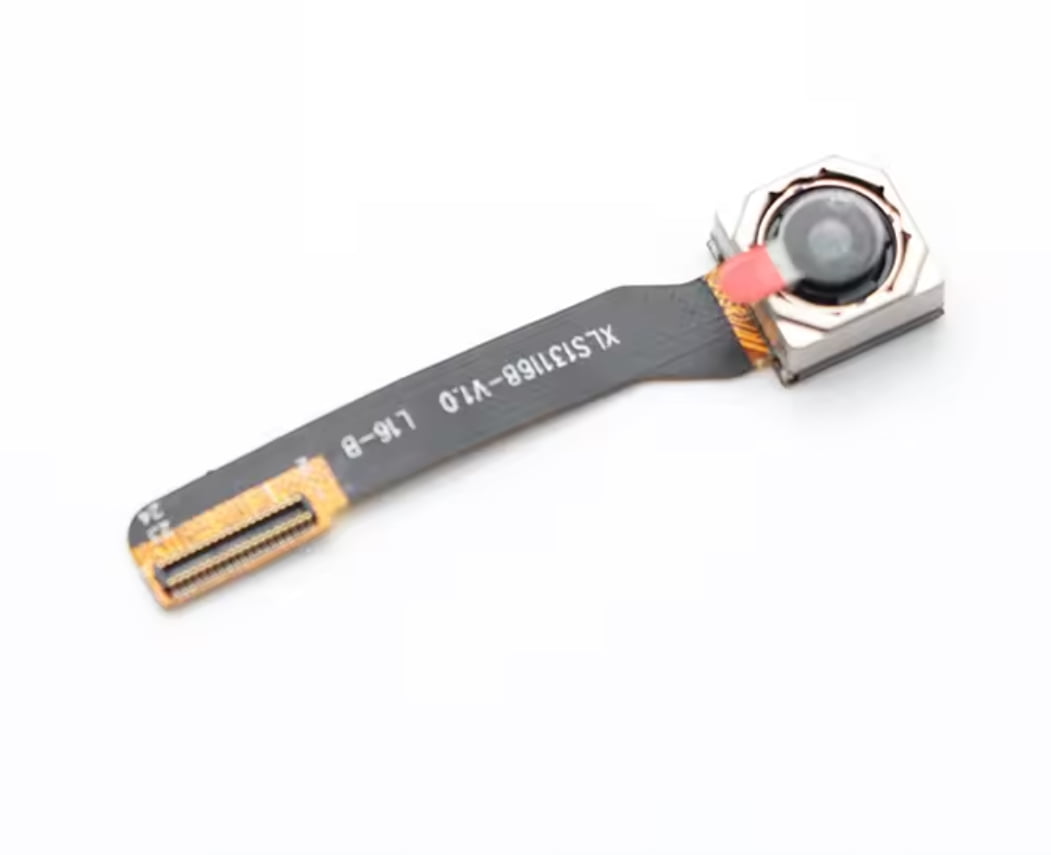

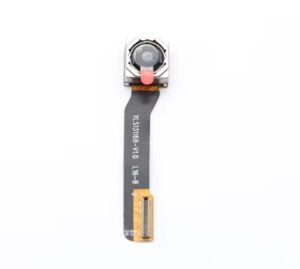

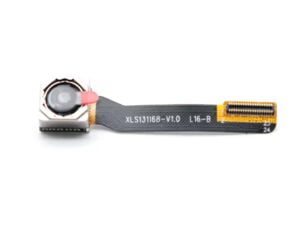

Samsung S5K3L2 13MP Mobile Phone Auto Focus for front or rear
- High-Definition Imaging, Extreme Detail Clarity: Equipped with a 13MP sensor, it captures vividly clear pictures, preserving every moment’s true colors and intricate details, be it selfies or portraits.
- Instant Auto Focus, Effortless Capture: Boasting an efficient auto-focus system, it swiftly locks onto the subject, ensuring precise and error-free shooting, be it still landscapes or moving people.
- Versatile Application, Front & Rear Compatibility: Tailored for mobile phones, it seamlessly integrates with both front and rear camera positions, catering to diverse photography needs.
- Compact & Lightweight, Space-Saving Design: Its sleek profile facilitates easy portability and installation, adding no extra bulk to your phone, allowing you to enjoy high-quality photography anytime, anywhere.
- Universal Compatibility, Hassle-Free Experience: Compatible with a wide range of smartphone models, it’s plug-and-play, eliminating complex setups, and enabling users to start capturing moments with ease and joy.
Detail Information
| Type: | MIPI Camera Module | Sensor: | 1/3.06’’ Samsung S5K3L2 |
|---|---|---|---|
| Resolution: | 4208*3120 | Dimensions: | Customizable |
| Lens FOV: | 78°(optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Lens |
Key Feature:
13MP resolution with Samsung S5K3L2 CMOS sensor
Auto Focus
Dimensions: 17.6*10.8
1.12µm x 1.12µm
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
4208*3120 30FPS 3840*2160 30fps 2592*1944 30fps
2048*1536 30fps 1920×1080 60fps 1280×720 120fps 800×600 120fps 640×480 240fps 320×240 240fps
Specification
| Model No | hstd-13MP-Samsung S5K3L2-AF-mipi |
| Sensor | 1/3’’ Samsung S5K3L2 CMOS |
| Pixel | 13 Mega Pixel |
| Most effective pixels | 4208*3120 30FPS |
| Pixel Size | 1.12um*1.12um |
| Focus type | Auto Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
#telecommunications #iot #robotics #ai #embedded #hardware #medicaldevice #drone #artificialintelligence #security #surveillance #video #imaging #3d #facialrecognition #camera #electronics #robot #consumerElectronics #machinevision #deeplearning #vr #ar #virtualreality #accesscontrol #tablet #smartphone
Shenzhen HSTD Import and Trade Co., Ltd.,
We customize all kinds of AHD /USB /MIPI /DVP /IPC camera module from 1 MP to 48 MP as per your request
Your most trusted partner for camera module solutions
