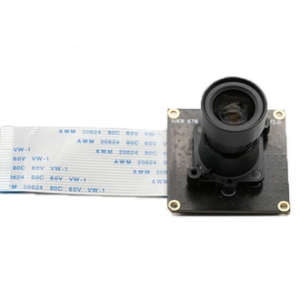

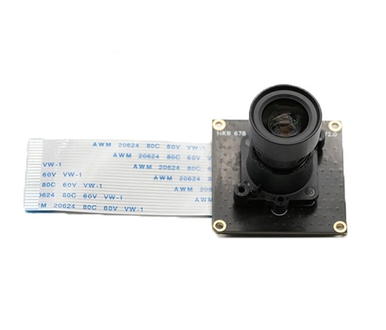

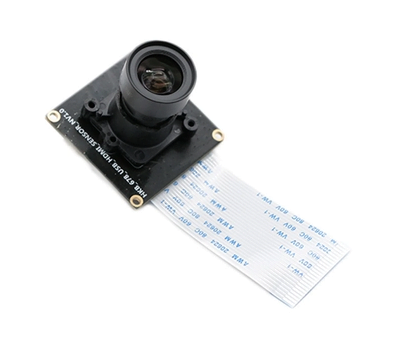

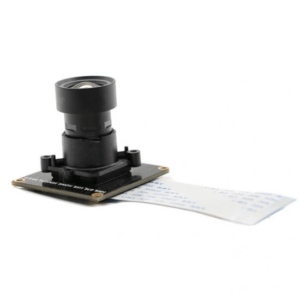

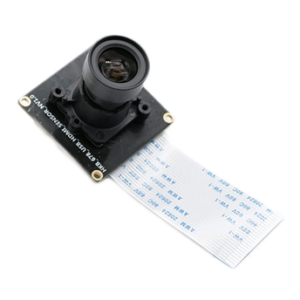

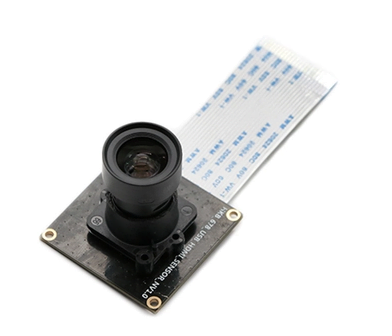

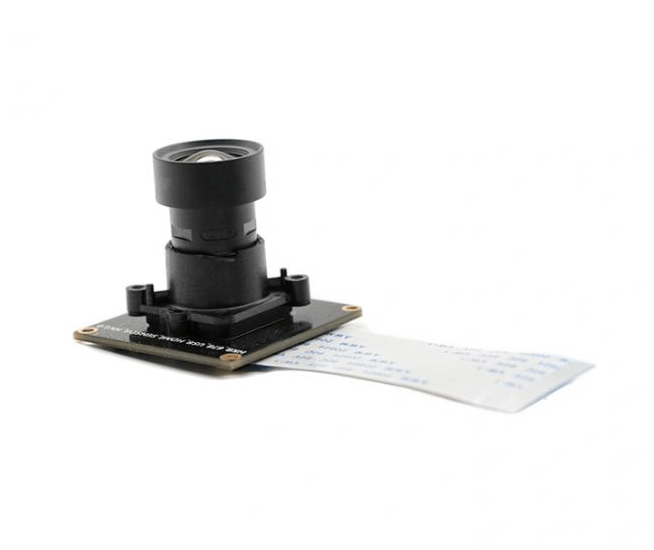

5 MP OV5647 Camera Module for Raspberry Pi 2B/3B/B+
This camera module offers excellent performance and wide compatibility, making it an ideal choice for many projects. The following is a detailed introduction:
1. **High resolution and superior sensor**:
– **5MP Resolution**: Provides clear and sharp images, suitable for various application scenarios, from video surveillance to image processing.
– **Omnivision 1/4” OV5647 Sensor**: This is a high-performance image sensor capable of capturing rich details and accurate colors for applications requiring high image quality.
2. **Fixed focus design**:
– **Fixed focus**: No need to adjust the focus, which simplifies the use process and is suitable for monitoring and shooting of fixed scenes.
3. **Wide Compatibility**:
– **Supports Raspberry PI 2B/3B/B+**: Compatible with popular Raspberry Pi models, suitable for developers and enthusiasts, easy to integrate into various DIY projects and experiments.
4. **High quality image output**:
– **High-quality images**: Whether it is photos or videos, the camera can provide high-quality image output to meet high-standard visual needs.
5. **Interface and physical dimensions**:
– **SCI interface**: standardized connection interface to ensure the stability and speed of data transmission.
– **Dimensions: 25mm x 24mm x 16mm**: Small and compact design, easy to install in various equipment and environments.
6. **High frame rate support**:
– **30FPS Frame Rate**: Smooth video capture, suitable for real-time monitoring and video recording.
– **Multiple resolutions and frame rates supported**:
– **1080P@30FPS**: HD resolution video capture, suitable for high-quality video needs.
– **720P@60FPS**: Higher frame rate video capture ensures that fast-moving scenes can be recorded smoothly.
– **640 x 480P@60/90FPS**: High frame rate capture at low resolution, suitable for fast-moving scenes and real-time processing needs.
This camera module is excellent in terms of image quality, compatibility and performance, making it an ideal choice for many embedded systems and DIY projects.
Detail Information
| Type: | raspberry pi Camera Module | Sensor: | 1/4’’ Omnivision OV5647 |
|---|---|---|---|
| Resolution: | 8MP | Dimensions: | Customizable |
| Lens FOV: | 70°(optional) | Focus Type: | Fixed Focus |
| Interface: | raspberry pi /mipi | Feature: | Lens |
Key Feature:
5MP resolution with Omnivision 1/4” OV5647 sensor
Fixed Focus
Support Raspberry PI 2B/3B/B+
High quality image
SCI interface
Dimension: 25mm*24mm*16mm
Frame rate: 30FPS
Support 1080P&30FPS, 720P&60FPS, 640*480P&60/90FPS
Customization is fully supported
https://www.raspberrypi.com/products/camera-module-v2/
It supports the below resolution & frame rate:
MJPG:
1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
YUY2:
1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
Specification
| Model No | HSTD-5MP-RP-OV5647 |
| Sensor |
1/4’’ Omnivision OV5647 |
| Pixel | 5 Mega Pixels |
| Most effective pixels | 2592 x 1944 |
| Pixel Size | 1.4 um x 1.4 um |
| Focus type | Fixed focus |
| FOV | 120° |
| Image format | VGA |
| Frame rate | 30fps |
| Focal length | 3.6mm and adjustable |
| Aperture | F1.8 |
| Operating temperature | -20°C to 70°C |
| Dimension | 25mm x24mm |
| Voltage | 1.7V-3.0V |
| Pin Number | 15 Pin |
| Resolution | 1080P&30FPS, 720P&60FPS, 640*480P&60/90FPS |
| Application | Raspberry PI 2B/3B/B+ |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
