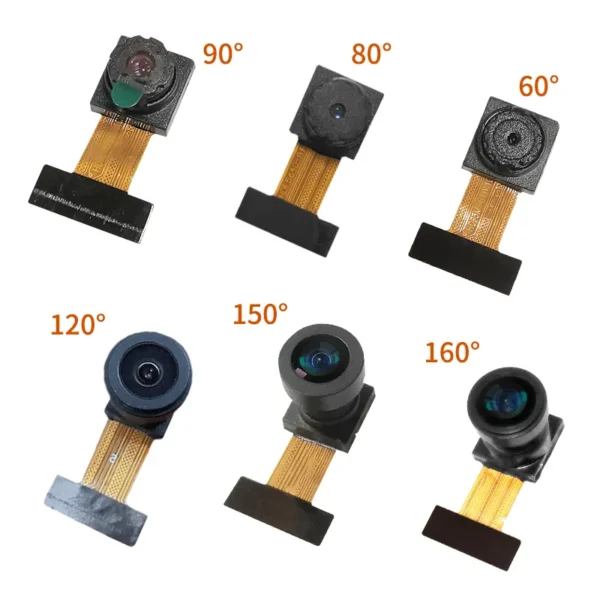

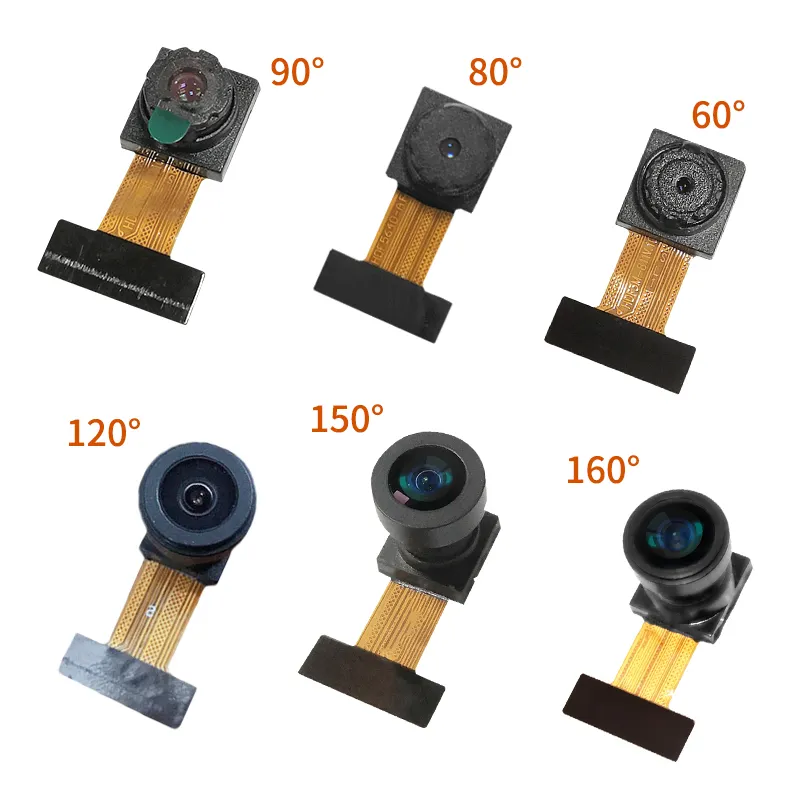

OV2640 Sensor Wide Angle 60 80 90 120 150 160 degree 2MP DVP Camera Module 24pin for ESP32
- HD Wide-Angle Lens：Equipped with the OV2640 sensor, offering a wide range of wide-angle options from 60 to 160 degrees to capture a broader view.
- 2MP Imaging Quality：High-definition 2MP image output with clear and detailed presentation to meet high-quality imaging requirements.
- DVP Parallel Interface：Supports the DVP (Digital Video Port) parallel interface for stable and efficient data transmission, enhancing shooting smoothness.
- 24-Pin Design：Adopting a 24-pin package for easy connection with microcontrollers such as ESP32, featuring high integration and simple installation.
- ESP32 Platform Compatibility：Designed specifically for development platforms like ESP32, plug-and-play for reduced development difficulty and accelerated product development
Detail Information
| Type: | Dual Camera Module | Sensor: | 1/2.9’’ ov2640 |
|---|---|---|---|
| Resolution: | 1920*1080 | Dimensions: | Customizable |
| Lens FOV: | 120°(optional) | Focus Type: | Auto Focus/Fixec Focus |
| Interface: | USB | Feature: | Lens |
Key Feature:
2MP resolution with 1/2.9’’ ov2640 CMOS sensor
Auto Focus
3.0µm x 3.0µm
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
1920×1080 120fps
It supports the below resolution & frame rate:
MJPG:
1920×1080 120fps 1280×720 30fps
800×600 30fps 640×480 30fps
320×240 30fps
