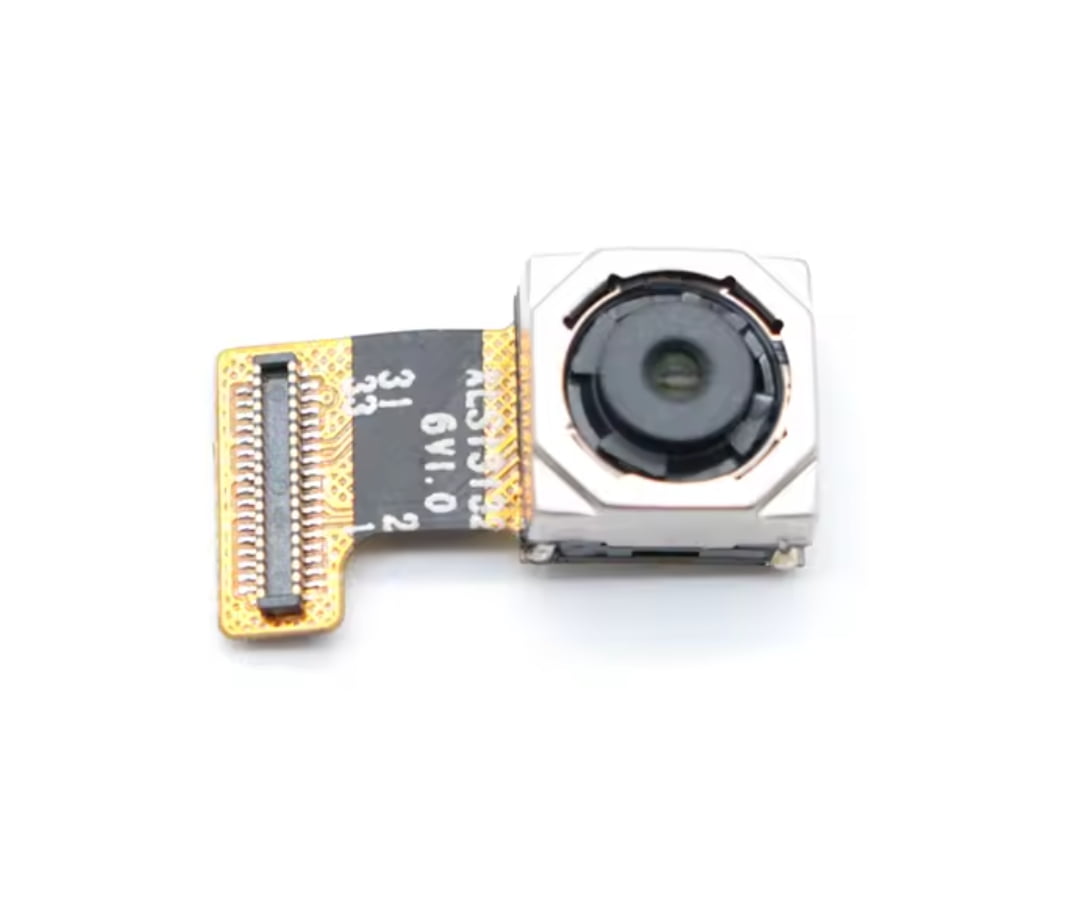

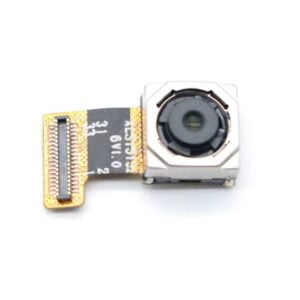

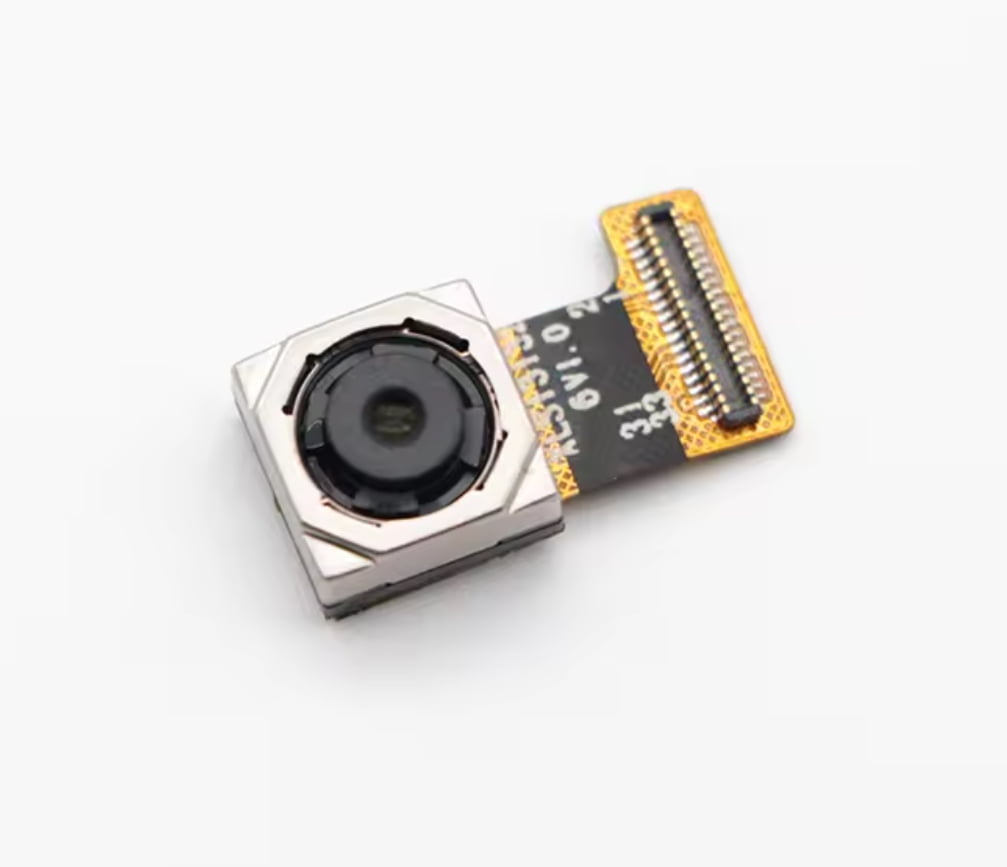

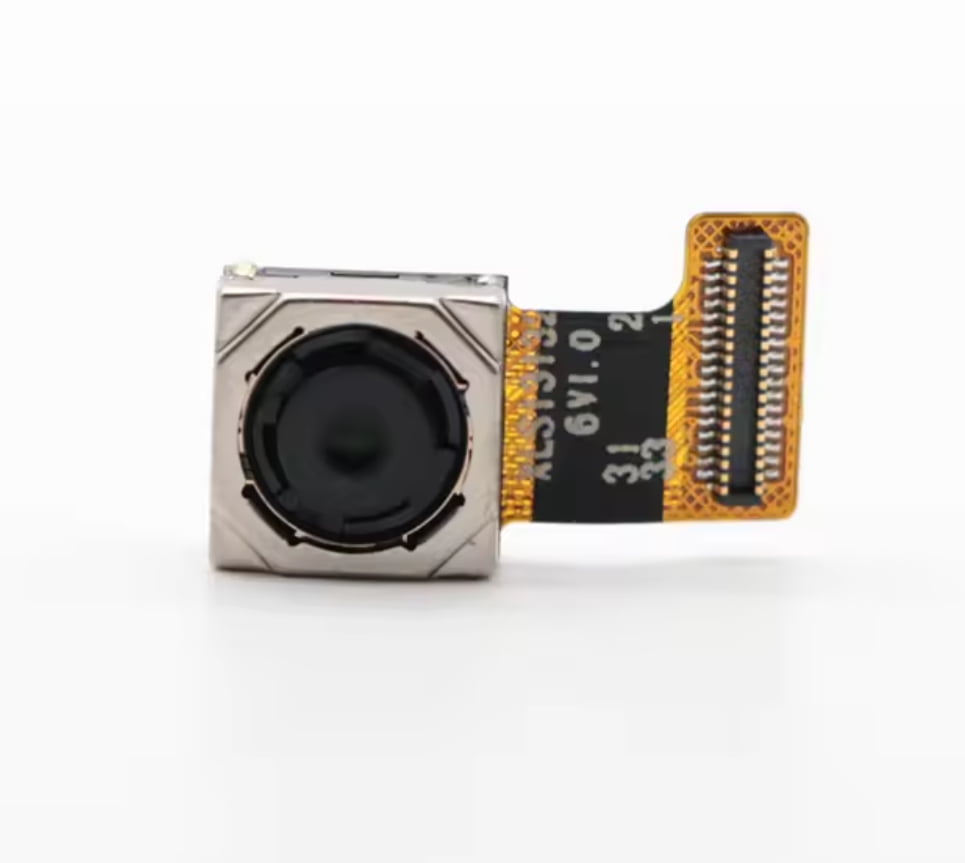

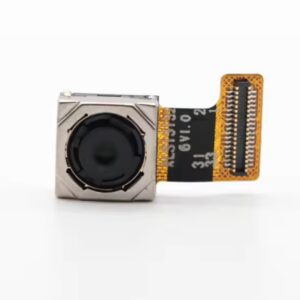

OV13853 Auto Focus MIPI camera module
- High-definition Auto Focus Technology: Equipped with advanced auto-focus system, it guarantees sharp and clear images, capturing intricate details and breathtaking landscapes alike, ensuring every moment is vividly preserved.
- Efficient MIPI Interface for Data Transmission: Featuring a MIPI interface, it facilitates high-speed, low-latency transmission of image data, supporting various demanding applications and enhancing overall operational efficiency and user experience.
- Compact and Lightweight for Easy Integration: The module boasts a compact design with a slim profile, making it effortless to integrate into various smart devices, expanding design possibilities for manufacturers.
- Low Power Consumption Design: Adopting a low-power circuit design, it significantly extends device battery life, ideal for extended monitoring, photography, and other applications, promoting energy efficiency and environmental friendliness.
- Stable Performance with Strong Compatibility: Rigorously tested for reliability, the product offers stable performance and seamless compatibility with multiple operating systems and development environments, catering to the diverse needs of users and developers alike.
Detail Information
| Type: | MIPI Camera Module | Sensor: | 1/3.06’’ OV13853 |
|---|---|---|---|
| Resolution: | 4208*3120 | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Lens |
Key Feature:
13MP resolution with SONY IMX214 CMOS sensor
Auto Focus
1.12µm x 1.12µm
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
4208*3120 30FPS 3840*2160 30fps
2592*1944 30fps2048*1536 60fps
1920×1080 60fps 1280×720 120fps
800×600 120fps 640×480 120fps
320×240 120fps
Specification
| Model No | hstd-13MP-OV13853-AF-mipi |
| Sensor | 1/3.06’’ OV13853 CMOS |
| Pixel | 13 Mega Pixel |
| Most effective pixels | 4208*3120 30FPS |
| Pixel Size | 1.12um*1.12um |
| Focus type | Auto Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
