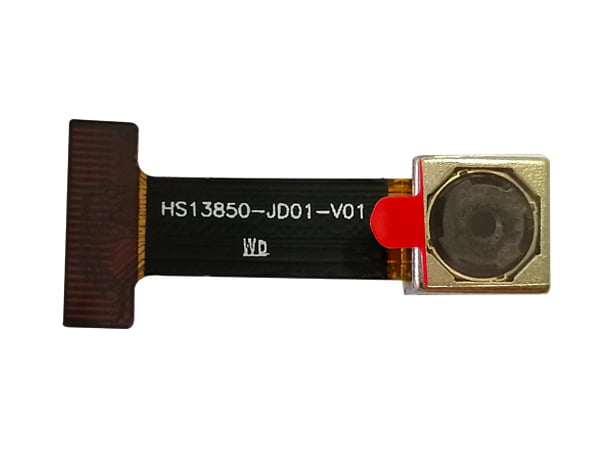

Optional lens angle FOV82° 30ps OV13853 MIPI camera module camera
- Ultra-Wide Angle for Capturing More: Equipped with an 82° field of view lens, it effortlessly captures more scenery, whether it’s family gatherings, breathtaking landscapes, or tight spaces, ensuring no detail is left out.
- High-Definition Clarity, Vivid Display: Featuring the OV13853 high-performance image sensor, it delivers stunningly sharp images with accurate color reproduction and rich detail levels, making every photo and video look as vivid as if you were there.
- Rapid Burst Mode, Freeze the Moments: Capable of 30 frames per second continuous shooting, it ensures you never miss a beat, capturing the joy of children’s laughter, pets’ antics, or the thrill of sports in crisp detail.
- Efficient MIPI Interface for Seamless Data Transfer: With MIPI interface, it facilitates high-speed and stable data transmission between the camera module and processor, minimizing latency and enhancing overall performance.
- Compact Design for Easy Integration: Boasting a compact module design, it seamlessly integrates into various smart devices, including smartphones, drones, and security surveillance systems, empowering product innovation and competitiveness.
Detail Information
| Type: | MIPI Camera Module | Sensor: | 1/3.06’’ OV13853 |
|---|---|---|---|
| Resolution: | 4208*3120 | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Lens |
Key Feature:
13MP resolution with 1/3.06’’ OV13853 CMOS sensor
Auto Focus
1.12µm x 1.12µm
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
4208*3120 30FPS 3840*2160 30fps
2592*1944 30fps2048*1536 60fps
1920×1080 60fps 1280×720 120fps
800×600 120fps 640×480 120fps
320×240 120fps
Specification
| Model No | hstd-13MP-OV13853-AF-mipi |
| Sensor | 1/3’’ OV13853 CMOS |
| Pixel | 13 Mega Pixel |
| Most effective pixels | 4208*3120 30FPS |
| Pixel Size | 1.12um*1.12um |
| Focus type | Auto Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
