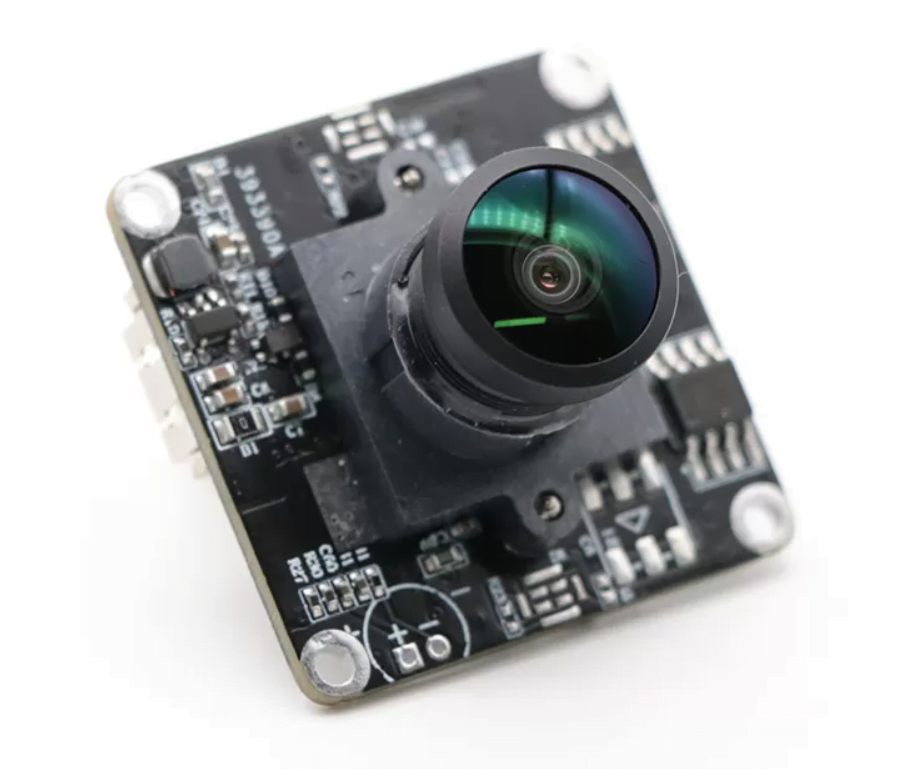

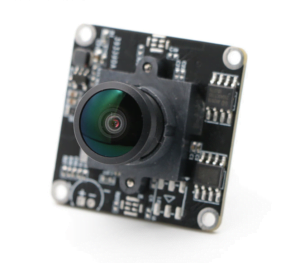

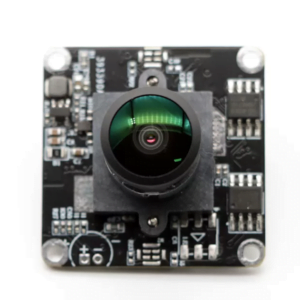

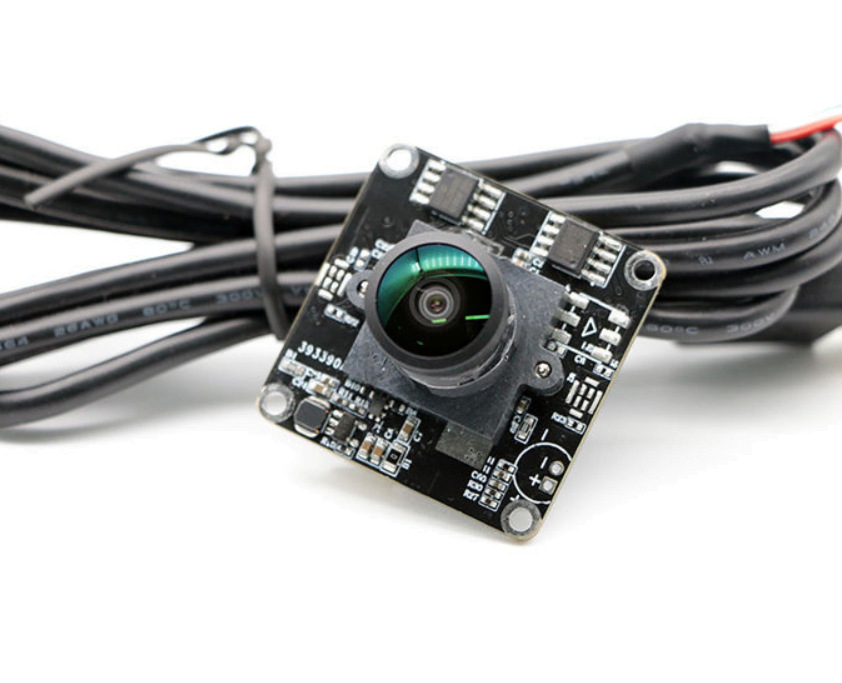

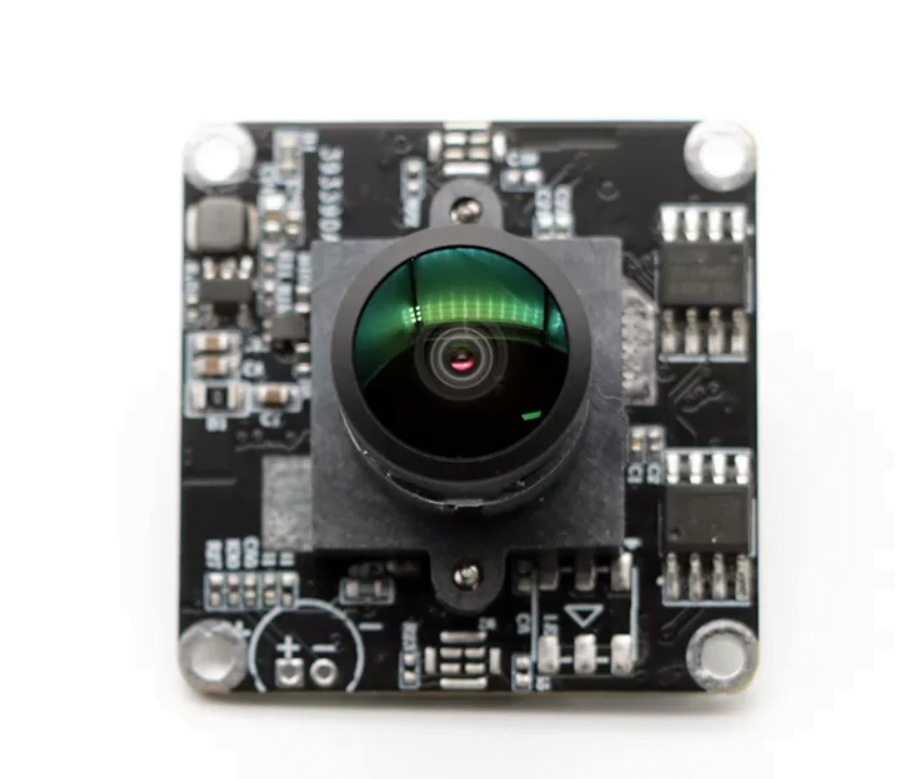

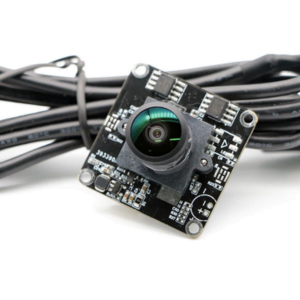

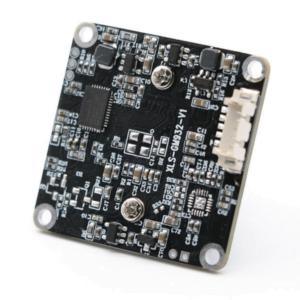

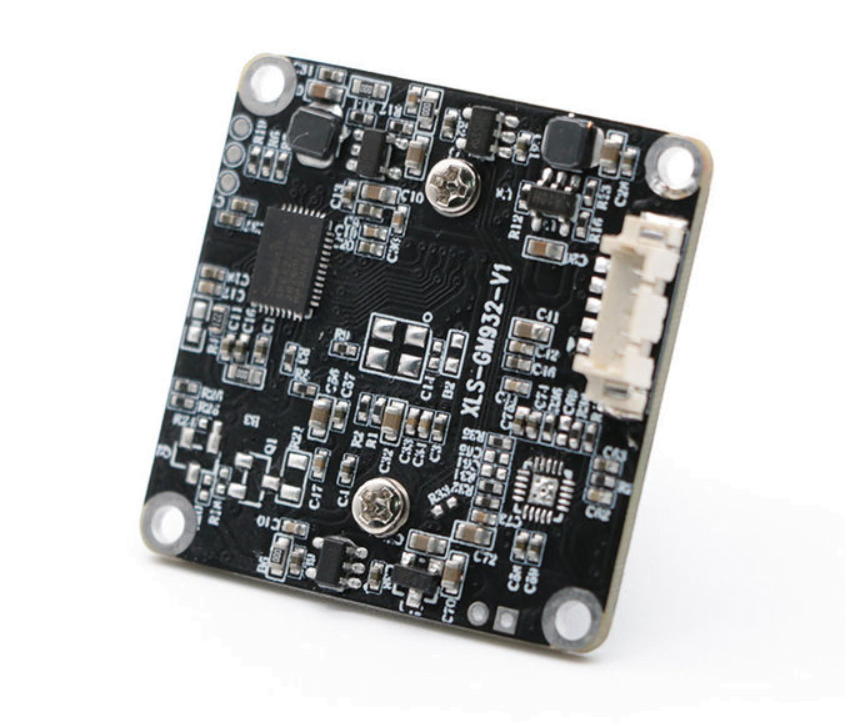

2MP Night Vision Camera Module, IMX307 Night Vision Camera Module, IMX307 machine vision camera module
Among the many night vision camera modules, this can be regarded as a relatively cheap and effective night vision camera module. We call it the low-profile version of IMX291. It also uses the IMX307 chip from Sony. Although the night vision effect is not comparable to IMX291, it is not much worse, especially when using our optimized firmware. Very good performance under illuminance environment. Most importantly, it is cheaper than IMX291.
In addition, it has some other advantages, such as low power consumption and high sensitivity. If you need a low-light camera module that performs well and don’t want to spend too much money, then IMX307 will be a very good choice.
It supports the below resolution & frame rate:
MJPG:
1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
YUY2:
1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
Key Feature:
Night Vision
Module size is small: 24MMx24MM
imx307 sensor
low-light camera module
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
A wide range of different FOV lenses are available
Specification
|
Model No |
HSTD-2MP-IMX307-V1.0 |
| Sensor | 1/2.8’’ SONY IMX307 CMOS |
| Pixel | 2 Mega Pixel |
| Most effective pixels | 1920(H) x 1080(V) |
| Pixel Size | 2.9µm x 2.9µm |
| Image area | 1937(H) x 1097(V) |
| Compression format | MJPEG / YUV2/H.264 |
| Resolution & Frame rate | 1920 x1080 @ 60fps
1280×960 @60fps 1280×720 @ 60fps 800×600 @ 60fps 640×480 @ 60 fps 320×240 @ 60fps |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus/Manually adjustable |
| S/N ratio | 52dB |
| Dynamic range | 72dB |
| Sensitivity | 7757 mV / lux-sec |
| Interface type | USB2.0 and SPI |
| Adjustable parameter | Brightness |
| Lens | Optical length: 18.6mm |
| F/NO: 2.4 | |
| FOV: D=130° | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 260mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | NOT Support |
| Auto White Balance (AEB) | NOT Support |
| Auto Gain Control (AGC) | NOT Support |
| Dimension | 32mm x 32mm |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
