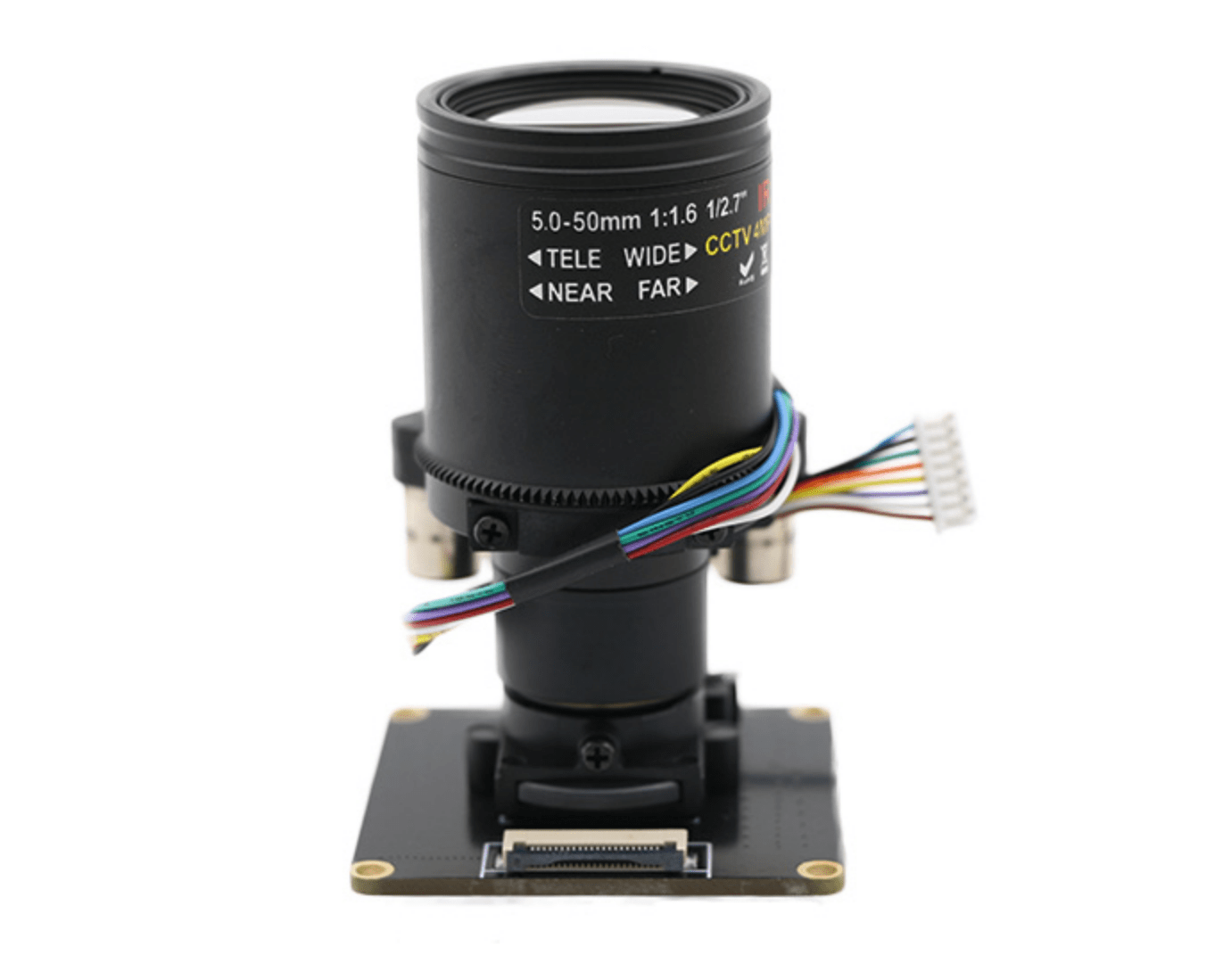

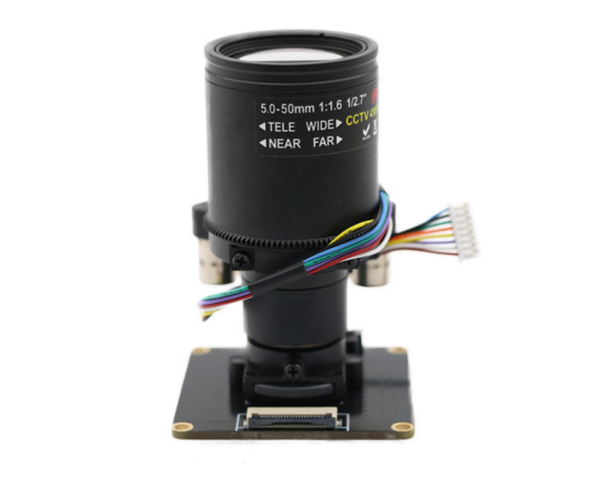

MIPI interface up to 48mp camera module, sony imx486 solution
- Ultra-HD Image Quality: Featuring the Sony IMX486 sensor solution, our camera module supports up to 48MP, capturing every intricate detail with stunning clarity and realism.
- Professional-Grade MIPI Interface: Equipped with an advanced MIPI interface, it ensures high-speed and stable data transmission, ideal for HD video recording and real-time image processing.
- Exceptional Imaging Performance: Boasting optimized image processing algorithms, it delivers outstanding color reproduction and detail retention, even in challenging lighting conditions, catering to professional photography needs.
- Wide Compatibility: Designed for seamless integration with various systems and platforms, it effortlessly connects to smart devices, providing high-performance visual solutions for smartphones, drones, security surveillance, and more.
- Compact Design for Easy Integration: With its small footprint and thoughtful structural design, this module is conveniently integrated into space-constrained devices, enhancing their functionality.
https://www.sony-semicon.com/en/products/is/camera/index.html
Detail Information
| Type: | High Resolution Camera Module | Sensor: | 1/2.4’’ sony imx486 |
|---|---|---|---|
| Resolution: | 8000*6000 30FPS | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Lens |
Key Feature:
20MP resolution with SONY IMX230 CMOS sensor
Fixed Focus
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
8000*6000 30FPS 4656*3496 30FPS
4208*3120 30FPS 3840*2160 30fps
2592*1944 30fps 2048*1536 30fps
1920*1080 30fps 1280*720 30fps
800*600 30fps 640*480 30fps
320*240 30fps
Specification
| Model No | hstd-48MP-imx486-FF-mipi |
| Sensor | 1/2’’ SONY IMX286 CMOS |
| Pixel | 48 Mega Pixel |
| Most effective pixels | 8000*6000 30FPS |
| Pixel Size | 0.8µm x 0.8µm |
| Focus type | Auto Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
#telecommunications #iot #robotics #ai #embedded #hardware #medicaldevice #drone #artificialintelligence #security #surveillance #video #imaging #3d #facialrecognition #camera #electronics #robot #consumerElectronics #machinevision #deeplearning #vr #ar #virtualreality #accesscontrol #tablet #smartphone
Shenzhen HSTD Import and Trade Co., Ltd.,
We customize all kinds of AHD /USB /MIPI /DVP /IPC camera module from 1 MP to 48 MP as per your request
Your most trusted partner for camera module solutions
