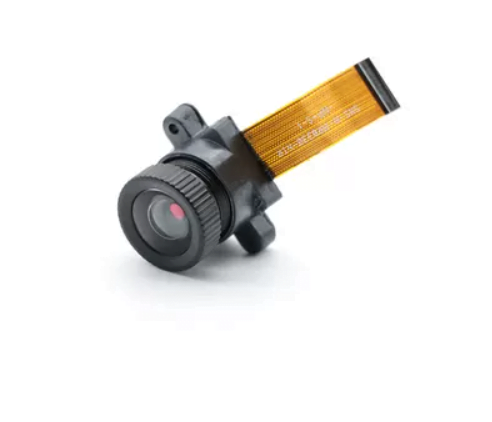

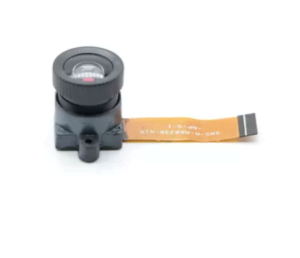

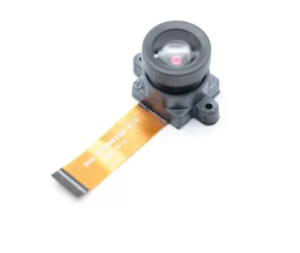

Low Light Wide Angle Lens mipi Camera Module With Aptina AR0330 Sensor
Detail Information
| Type: | Mipi Camera Module | Sensor: | 1/3″ Aptina AR0330 |
|---|---|---|---|
| Resolution: | 2048(H) X 1536(V) | Dimensions: | Customizable |
| Lens FOV: | 120°(optional) | Focus Type: | Fixed Focus |
| Interface: | Mipi | Feature: | Wide Angle |
| High Light: | 3MP DVP Camera Module, RoHS DVP Camera Module, 3MP ar0330 camera module | ||
Key Feature:
Night Vision,mipi,3MP
Module size is small: 24MMx24MM
AR0330 sensor
low-light camera module
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Low Light Wide Angle Lens
A wide range of different FOV lenses are available
It supports the below resolution & frame rate:
MJPG:
1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
YUY2:
1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
Specification
| Module No | HSTD-A-AR0330-NIR-NP-S-1 |
| Pixel Size | 2.2μm x 2.2μm |
| Effective Pixels | 2048×1536 |
| Video output | Raw Bayer10bit/8bit |
| Image Sensor | 1/3″ |
| Sensor Type | Aptina AR0330 |
| Lens view | FOV120°(optional),F/N(optional) |
| TV Distortion | <1% |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Operating voltage | AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
| Operating temperature | -30～70℃ |
| Storage temperature | 0～60℃ |
| Dimensions | Customizable |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
