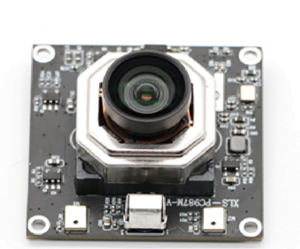

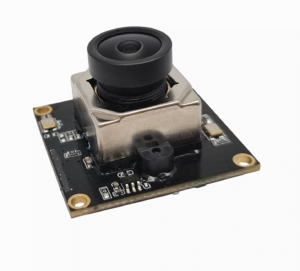

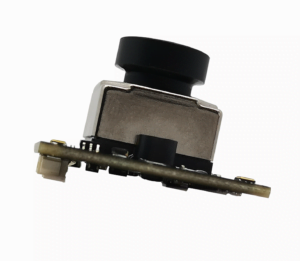

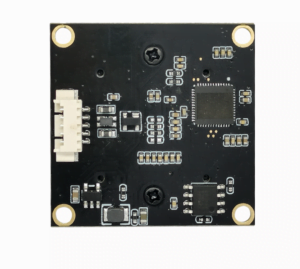

IMX415 4k 8mp auto tracking usb analog camera module mini cmos image sensor autofocus embedded ccd camera module
This is our market-leading camera module equipped with the SONY IMX415, offering 4K 8MP high-definition images that capture intricate details and render every frame captivating. This IMX415 camera module integrates a built-in automatic tracking functionality, precisely locking onto moving targets. Whether for video shooting or scene monitoring, it can manage effortlessly. It supports USB and analog output, flaunts strong compatibility, and facilitates seamless connection, being extensively employed in diverse devices and systems. Advanced autofocus technology ensures a prompt response, guaranteeing that the subject remains perpetually clear and sharp, augmenting shooting efficiency. Furthermore, a distinctive feature is the integrated design of the CCD camera module, featuring a compact configuration and stable performance, providing a reliable guarantee for professional imaging applications
https://www.sony-semicon.com/files/62/flyer_security/IMX415-AAQR_Flyer.pdf
Detail Information
| Type: | CCD shutter camera module | Sensor: | 1/2.8’’ sony imx415 |
|---|---|---|---|
| Resolution: | 3840*2160 | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | Lens |
Key Feature:
Pixel Size 3.0μm x 3.0μm
IMX415
4k 8mp auto tracking
usb analog camera module
mini cmos image sensor
autofocus embedded ccd camera module
It supports the below resolution & frame rate:
MJPG:
3840*2160 30FPS 2592*1944 30FPS
2048*1536 30FPS 1920×1080 30FPS
1280×720 30FPS 800×600 30FPS
640×480 30FPS 320×240 30FPS
Specification
| Model No | hstd-8MP-imx415-AF |
| Sensor | 1/2.8’’ SONY IMX415 CMOS |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3840*2160 |
| Pixel Size | 3µm x 3µm |
| Focus type | Auto Focus |
| Compression format | MJPG |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
#telecommunications #iot #robotics #ai #embedded #hardware #medicaldevice #drone #artificialintelligence #security #surveillance #video #imaging #3d #facialrecognition #camera #electronics #robot #consumerElectronics #machinevision #deeplearning #vr #ar #virtualreality #accesscontrol #tablet #smartphone
Shenzhen HSTD Import and Trade Co., Ltd.,
We customize all kinds of AHD /USB /MIPI /DVP /IPC camera module from 1 MP to 48 MP as per your request
Your most trusted partner for camera module solutions
