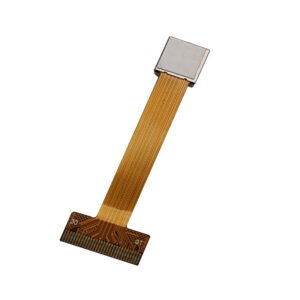

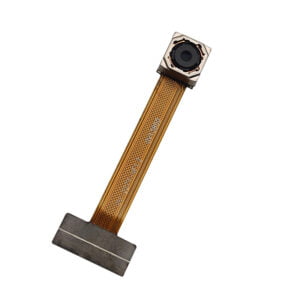

IMX214 Auto Focus High sensitivity 13MP camera module with MIPI interface for medicaldevice
- High Sensitivity Imaging: The IMX214 camera module boasts a state-of-the-art 1.4um*1.4um pixel design, delivering exceptional light sensitivity that ensures crisp, detailed images even in low-light conditions, ideal for medical devices requiring strict lighting requirements.
- Auto Focus Technology: Integrated with a high-precision auto-focus system, it swiftly and accurately adjusts the focal length, capturing fleeting moments with precision, enhancing diagnostic efficiency and accuracy in medical imaging.
- 13MP High-Resolution Imaging: Equipped with a 13-megapixel sensor, it outputs high-quality images rich in detail and accurate color reproduction, fulfilling the demand for high-definition images in medical image analysis.
- MIPI Interface Integration: Featuring a MIPI (Mobile Industry Processor Interface) interface design, it enables efficient data transmission with reduced signal attenuation, enhancing overall system performance and facilitating seamless integration and upgrades in medical equipment.
- Tailored for Medical Devices: Optimized for the unique demands of the medical field, it boasts stable and reliable performance over extended periods, providing robust support for medical imaging devices in challenging environments.
https://www.sony-semicon.com/en/products/is/camera/index.html
Detail Information
| Type: | MIPI Camera Module | Sensor: | 1/3’’ sony imx214 |
|---|---|---|---|
| Resolution: | 3840*2160 | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Lens |
Key Feature:
13MP resolution with SONY IMX214 CMOS sensor
Auto Focus
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
3840*2160 30fps 2592*1944 30fps
2048*1536 30fps 1920*1080 30fps
1280*720 30fps 800*600 30fps
640*480 30fps 320*240 30fps
Specification
| Model No | hstd-8MP-imx214-FF-mipi |
| Sensor | 1/3’’ SONY IMX214 CMOS |
| Pixel | 13 Mega Pixel |
| Most effective pixels | 3840*2160 20FPS |
| Pixel Size | 1.4µm x 1.4µm |
| Focus type | Fixed Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
#telecommunications #iot #robotics #ai #embedded #hardware #medicaldevice #drone #artificialintelligence #security #surveillance #video #imaging #3d #facialrecognition #camera #electronics #robot #consumerElectronics #machinevision #deeplearning #vr #ar #virtualreality #accesscontrol #tablet #smartphone
Shenzhen HSTD Import and Trade Co., Ltd.,
We customize all kinds of AHD /USB /MIPI /DVP /IPC camera module from 1 MP to 48 MP as per your request
Your most trusted partner for camera module solutions
