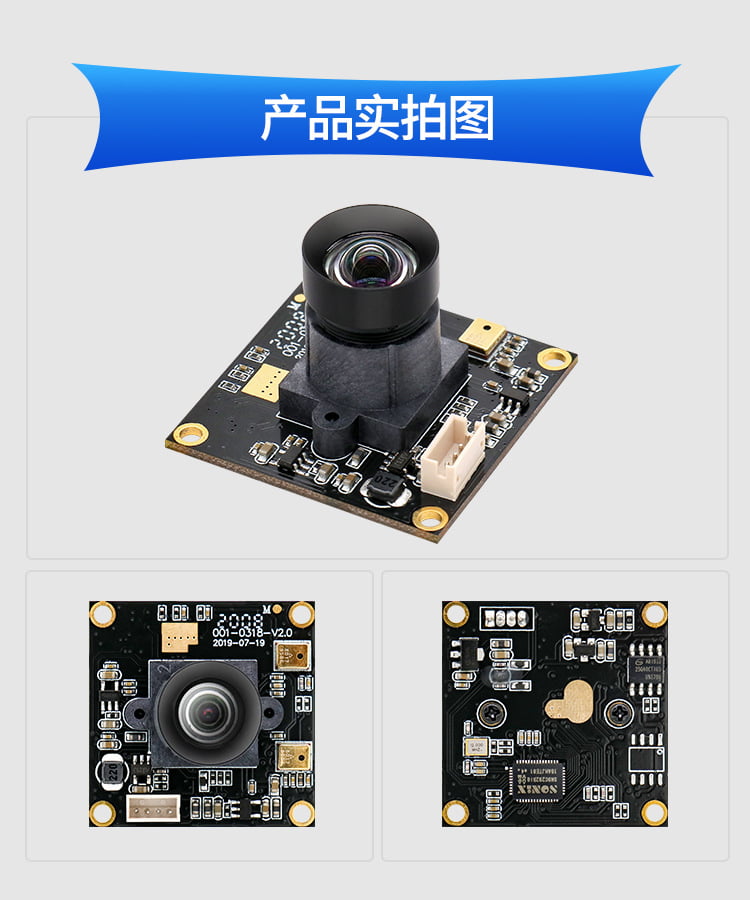

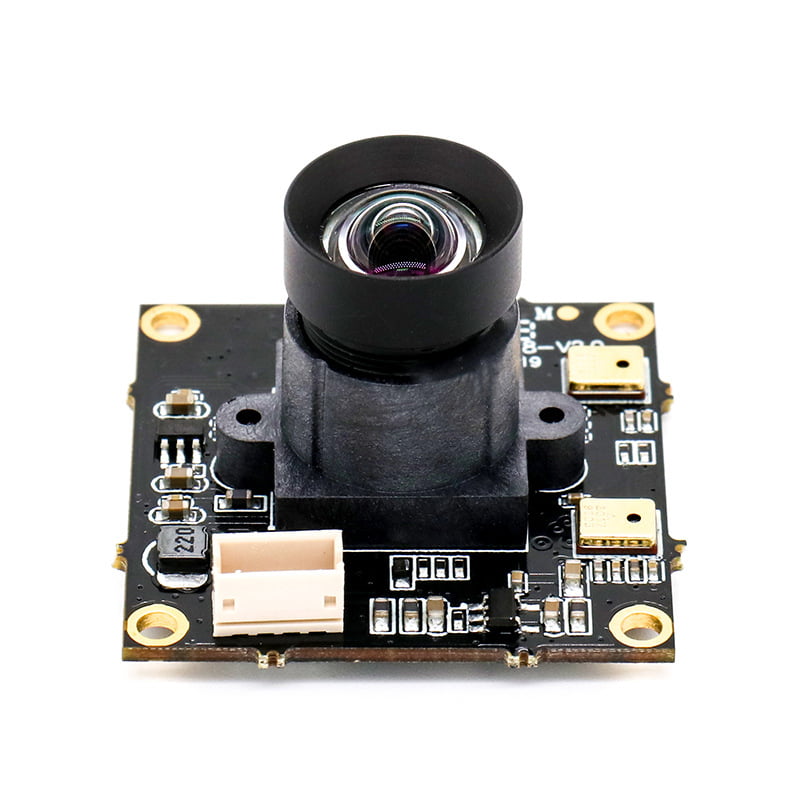

This is one of our hot selling camera modules, it is 2MP resolution with SONY STARVIS IMX291 CMOS sensor. The Starvis technology features a high sensitivity and realizes high picture quality in the visible-light and near infrared light regions. The sensor is also equipped with Sony’s Exmor R technology which provides an enhanced imaging performance especially a higher sensitivity and low noise.
The current module size is 38MMX38MM (compatible with 32MMX32MM), and customization is fully supported. What’s more, we have a wide range of different FOV lenses available, from 40 degree to 220 degree.
It supports the below resolution and frame rate:
MJPG
1920×1080@30FPS; 1280×720@30FPS; 848×480@30FPS; 640×360@30FPS; 320×180@30FPS
YUY2
1920×1080@5FPS; 1280×720@10FPS; 848×480@10FPS; 640×360@30FPS; 320×180@30FPS
Key Feature:
2MP resolution with Sony IMX291 CMOS sensor
Excellent low illumination performance
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Module size is 38MMX38MM ( 32MMX32MM)
Customization is fully supported
A wide range of different FOV lenses are available
Specification:
| Model No | HSTD-2MP-IMX291-C014 |
| Sensor | 1/2.8’’ SONY IMX291 Sensor |
| Resolution | 2 Mega Pixels |
| Most effective pixels | 1920(H) X 1080(V) |
| Pixel Size | 2.9μmx 2.9μm |
| Compression format | YUY2/MJPG |
| Frame | 30FPS |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 46dB |
| Dynamic range | 80dB |
| Min Illumination | 0.001 Lux |
| Interface type | USB2.0 |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
| Lens | Lens Size: 1/2.8 inch |
| H FOV: 96° | |
| Thread Size: M12*P0.5 | |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mA |
| Automatic Exposure Control (AEC) | Support |
| Automatic White Balance (AEB) | Support |
| Automatic Gain Control (AGC) | Support |
| Dimension | 38MMx38MM ( 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB Wire | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
