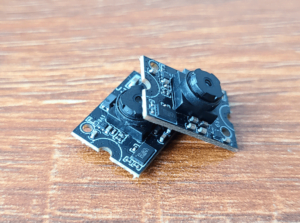

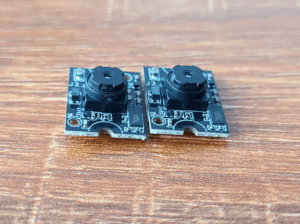

This is one of the smallest camera modules in the world with its size only 16MMx12MM, it is 1MP resolution with 1/4” OmniVision OV9732 sensor, which features Low-light sensitivity & Low-power consumption, all these features make our camera module unique and popular in the market.
It supports the below resolution & frame rate:
MJPG:
1280×720@30FPS; 1280×480@30FPS; 800×600@30FPS; 640×480@30FPS; 320×240@30FPS;
YUY2:
1280×720@5FPS; 1280×480@5FPS; 800×600@5FPS; 640×480@30FPS; 320×240@30FPS;
Key Feature:
1MP resolution with 1/4” with OmniVision OV9732 sensor
Small form factor: 16MMx12MM
Low-light sensitivity of 2.066V/Lux-sec
Low-power consumption of 110mA
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Specification:
| Model No | HSTD-1MP-OV9732-8889 |
| Sensor | 1/4’’ OMNIVISION OV9732 sensor |
| Pixel | 1 Mega Pixel |
| Most effective pixels | 1280 (H) x 720 (V) |
| Pixel Size | 3.0µm x 3.0µm |
| Resolution | 1280×720; 1280×480; 800×600; 640×480 |
| Frame Rate | 30FPS |
| Compression format | MJPEG / YUV2 (YUYV) |
| Shutter Type | Electronic rolling shutter |
| Image area | 3888umx2208um |
| Max S/N ratio | 39dB |
| Dynamic range | 72dB |
| Sensitivity | 2.066V/Lux-sec |
| Focus type | Fixed Focus (Manually adjustable) |
| Chroma | Color image |
| Interface type | USB 2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/
Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.29mm |
| View angle: 68° | |
| F.NO: 2.8 | |
| Power consumption | DC 5V, 110mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | 16MM x12MM |
| Operating temperature | -20°C to 70°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
