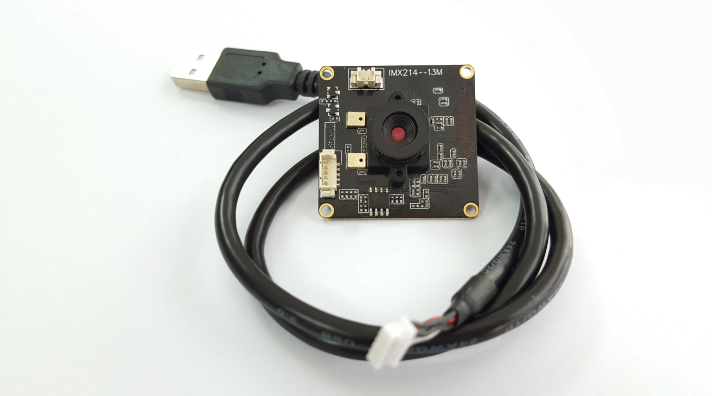

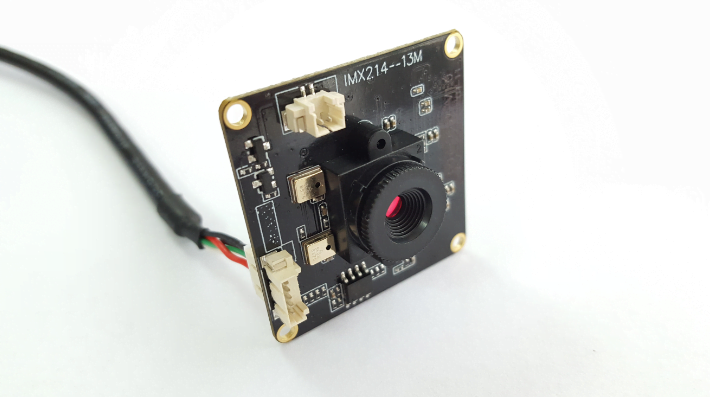

HSTD-13MP-IMX214-02

This is our latest camera module development, and also one of the highest resolution USB camera modules, it is 13 Mega Pixel with SONY IMX214 CMOS image sensor, image quality is very very high that you can see every details no matter how small it is. Unlike our previous 13 MP module which is auto focus, this one is fixed focus, and can be used for high-technology & high-end applications, such as intelligent machine, high-speed scanning, robotics, educational equipment, medical device, artificial intelligence, Internet of Things, embedded, imaging and others.

The current module size is standard 38mm*38mm, we can change its size and shape according to your requirement. The current lens FOV is 70° and is also changeable. Besides, there are 2 high quality microphones on this module. We can also put LEDs and IR CUT filter to make it day/night vision.

This module has high demand for operating system, you can still use standard WinXP/Vista/Win7/Win8, but it is better to use Win10 or equivalent to achieve the best result.

https://www.sony-semicon.com/cn/products/is/index.html

It supports the below resolution & frame rate:

MJPG:

4192×3104@6fps; 3840×2160@12fps; 3264×2448@15fps; 3264×1836@15fps; 2592×1944@15fps; 2048×1536@30fps; 1920×1080@15fps; 1600×1200@30fps; 1024×768@30fps; 1280×720@30fps; 800×600@30fps; 640×480@30fps;

YUY2:

4192×3104@1fps; 1920×1080@1fps

You can learn more about SONY IMX214 CMOS sensor at the below link:

https://www.sony-semicon.co.jp/products_en/IS/sensor1/img/products/ProductBrief_IMX214_20150428.pdf

https://www.sony-semicon.co.jp/products_en/new_pro/april_2014/imx214_e.html

Key Feature:

13MP resolution with SONY IMX214 CMOS image sensor

Fixed Focus

SME-HDR technology, outputting 13M-pixel HDR/High Dynamic Range images

High quality image, High sensitivity

UVC compliant, Plug & Play

Support Linux, Android, Mac and Windows

2 built-in high quality microphones

Night vision is supported with putting LEDs and IR CUT filter

Module size is 38MM x 38MM and customizable

Specification:

Model No	HSTD-13MP-IMX214-C200
Sensor	1/3.06’’ SONY IMX214
Pixel	13 Mega Pixel
Most effective pixels	4192 x 3104
Pixel Size	1.12µm x 1.12µm
Image area	6100μm x 4524μm
Compression format	MJPG / YUY2
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	33dB
Interface type	USB2.0 high speed
Sensitivity	1000mV / lux-sec
Night vision	Supported with IR CUT filter and LEDs
Lens structure	5P+IR
Lens FOV	optional
Lens mount	M12*P0.35
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/ Definition/Gamma/White balance/Exposure
Audio frequency	Support
Power supply	USB BUS POWER
Power consumption	DC 5V, 350mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control	Support
Auto White Balance	Support
Auto Gain Control	Support
Dimension	38MM x 38MM and customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC

Your most trusted partner for camera module solutions

#automotive #telecommunications #iot #robotics #ai #embedded #hardware #software #firmware #medical #drone #artificialintelligence #security #surveillance #video #imaging #3d #facialrecognition #camera #electronics #robot #consumerelectronics #machinevision #machinelearning #deeplearning #vr #ar #virtualreality #accesscontrol #vision

Shenzhen HSTD Import and Trade Co., Ltd.,

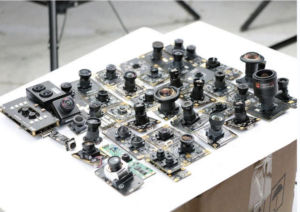

We customize all kinds of AHD /USB /MIPI /DVP /IPC camera module from 1 MP to 48 MP as per your request
