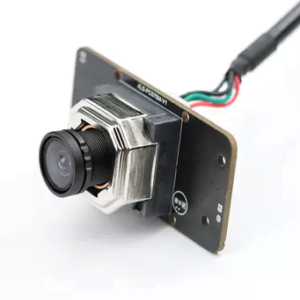

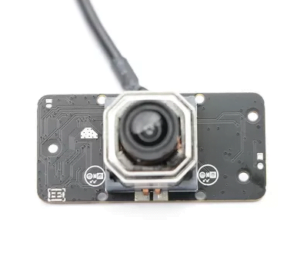

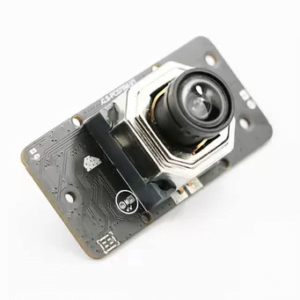

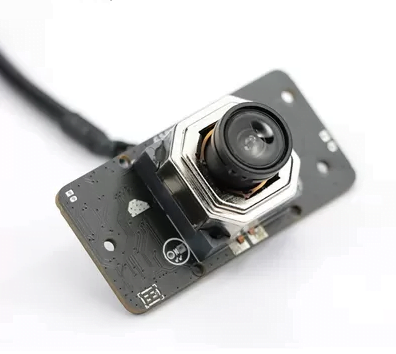

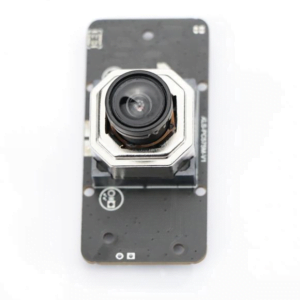

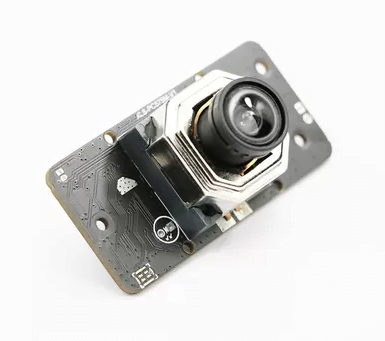

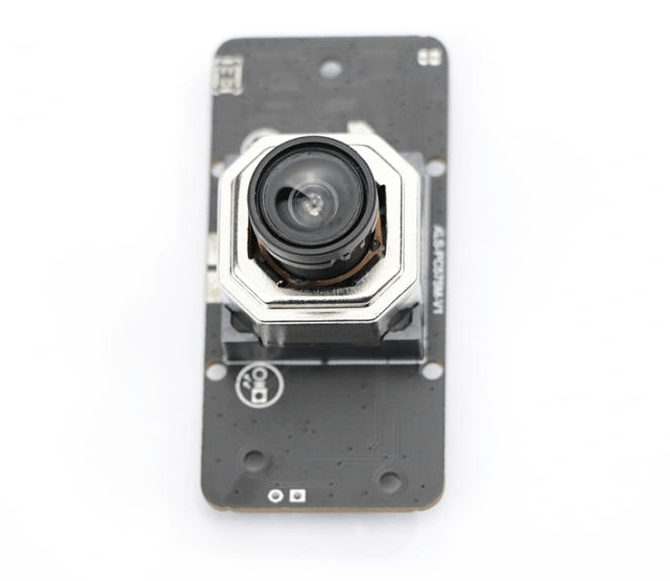

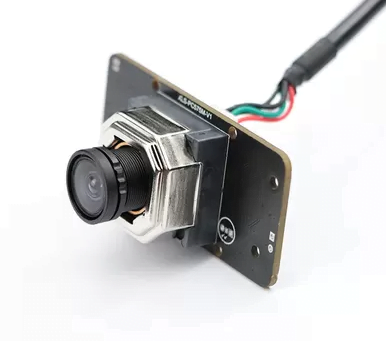

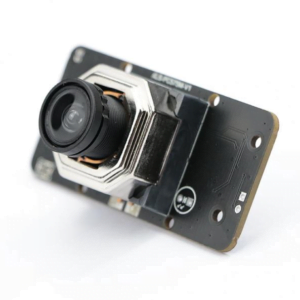

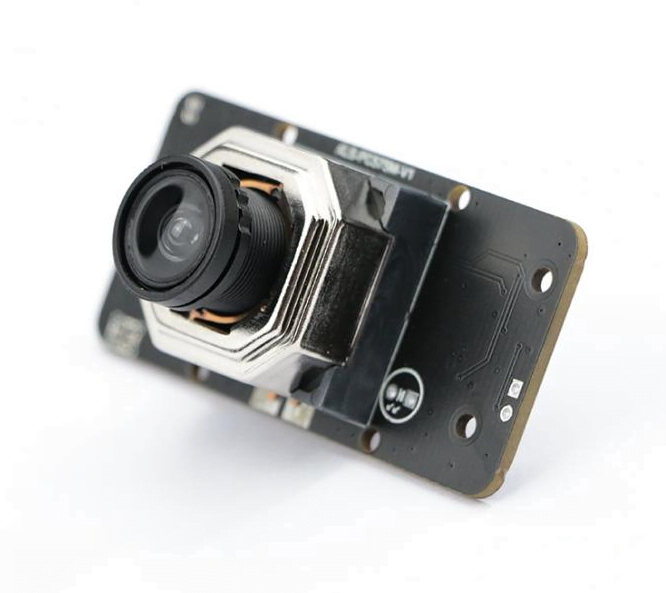

AR0144 Low Power Camera Module, M12 Lens Low Power Camera Module,AR0144 modul camera
This is one of our many outstanding global exposure camera modules, utilizing the AR0144 chip from ON Semiconductor. The AR0144 chip is available in both color and monochrome versions, and we are currently using the color version.
The AR0144 is a 1/4-inch, 1.0 Mp CMOS digital image sensor with an active pixel array of 1280H x 800V. It features an innovative global shutter pixel design optimized for accurately and quickly capturing moving scenes. This sensor produces clear, low-noise images in both low-light and bright scenes. It includes advanced camera functions such as automatic exposure control, windowing, row skip mode, column skip mode, pixel binning, and both video and single-frame modes.
The AR0144 can generate extremely clear and sharp digital images, and it is capable of capturing continuous video and single frames, making it an ideal choice for a variety of applications including scanning and industrial inspection. In this camera module, we use a powerful motor to drive the M12 lens for autofocus, ensuring that the camera delivers very clear and stable imaging performance.
Detail Information
| Type: | USB Camera Module | Sensor: | 1/4″ ON Semiconductor AR0144 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
Key Feature:
AR0144 Low Power Camera Module
Module size is small: 24MMx18MM
1/4″CMOS Image Sensor AR0144
autofocus
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
global shutter Camera Module
M12 lens
It supports the below resolution & frame rate:
MJPG:
1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
YUY2:
1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
Specification
|
Model No |
hstd-1MP-AR0144-AF12 |
| Sensor | 1/4’’ ON Semiconductor AR0144 |
| Pixel | 1 Mega Pixel |
| Most effective pixels | 1280H x 800V |
| Pixel Size | 3.0µm x 3.0µm |
| Chroma | COLOR Image |
| Compression format | MJPG/YUY2 |
| Resolution & Frame rate | See above |
| Shutter Type | Global shutter |
| Focus type | Auto focus |
| S/N ratio | 38dB |
| Dynamic range | 63.9dB |
| Protocol | Plug-&-Play (UVC compliant) |
| Interface type | USB2.0 high speed |
| Lens | Lens Size: 1/4 inch |
| FOV: 90° | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 180mW |
| Main chip | DSP/SENSOR/FLASH |
| Dimension | customizable |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/ Definition/Gamma/White balance |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
