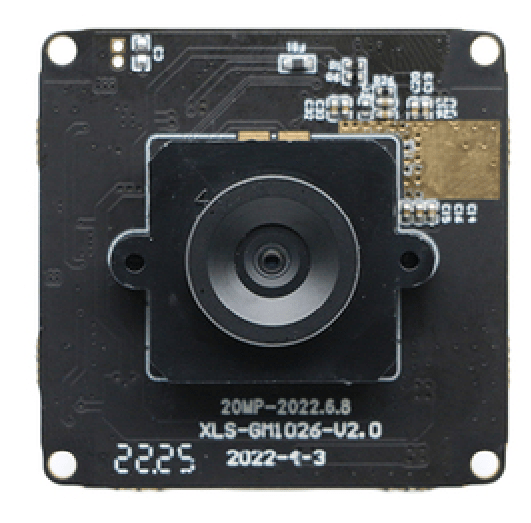

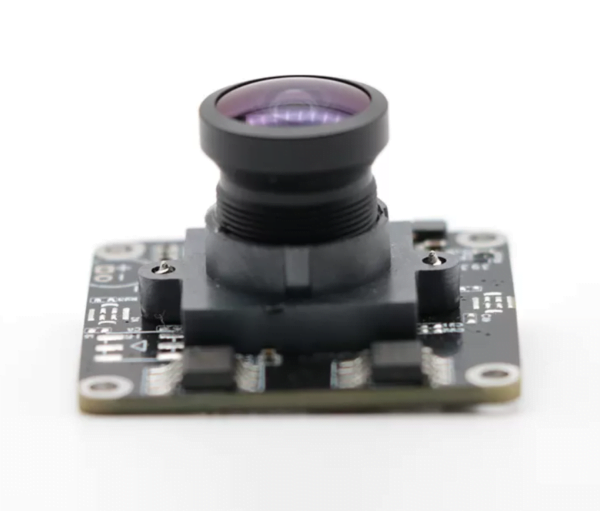

Fixed Focus Sony IMX230 CMOS 20mp camera module
- High-Resolution Imaging: Equipped with a Sony IMX230 CMOS sensor, boasting 20MP for ultra-sharp images that capture every intricate detail with clarity.
- Fixed Focus Precision: Featuring a fixed-focus design, eliminating the need for manual adjustments, ensuring professional-grade clarity across various shooting scenarios.
- Superior Low-Light Performance: Delivers exceptional image quality even in dimly lit environments, minimizing noise and preserving dark details for stunning results.
- Compact Modular Design: Its sleek and lightweight module is easy to integrate into diverse devices, saving space and enhancing overall aesthetic appeal.
- Broad Compatibility: Compatible with multiple system platforms, enabling seamless integration and rapid development, providing robust imaging support for a wide range of smart devices
https://www.sony-semicon.com/files/62/flyer_security/IMX415-AAQR_Flyer.pd
Detail Information
| Type: | High Resolution Camera Module | Sensor: | 1/2.4’’ sony imx230 |
|---|---|---|---|
| Resolution: | 5104*4000 | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Lens |
Key Feature:
20MP resolution with SONY IMX230 CMOS sensor
Fixed Focus
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
5104*4000 5FPS 5096*3822 5FPS
4608*3456 5FPS 4160*3120 10FPS
3264*2448 10FPS 3840*2160 10FPS
3264*2448 10FPS 2592*1944 20FPS
1600*1200 20FPS 1920*1080 25FPS
1280*720 25FPS 1024*768 20FPS
1024*576 20FPS 800*600 20FPS
640*480 20FPS 320*240 20FPS
Specification
| Model No | hstd-20MP-imx230-FF-usb |
| Sensor | 1/2.4’’ SONY IMX230 CMOS |
| Pixel | 20 Mega Pixel |
| Most effective pixels | 5104*4000 |
| Pixel Size | 1.12µm x 1.12µm |
| Focus type | Auto Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
#telecommunications #iot #robotics #ai #embedded #hardware #medicaldevice #drone #artificialintelligence #security #surveillance #video #imaging #3d #facialrecognition #camera #electronics #robot #consumerElectronics #machinevision #deeplearning #vr #ar #virtualreality #accesscontrol #tablet #smartphone
Shenzhen HSTD Import and Trade Co., Ltd.,

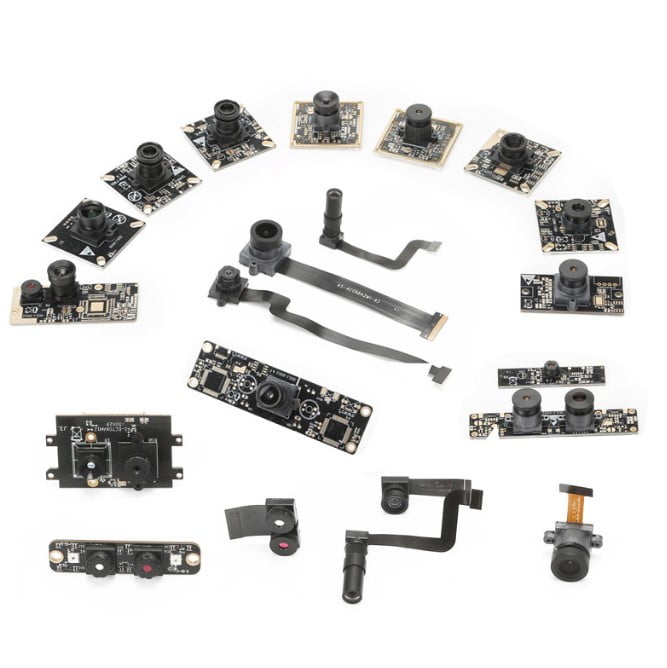

We customize all kinds of AHD /USB /MIPI /DVP /IPC camera module from 1 MP to 48 MP as per your request
