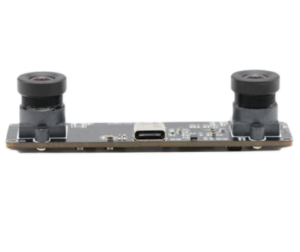

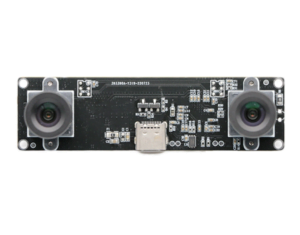

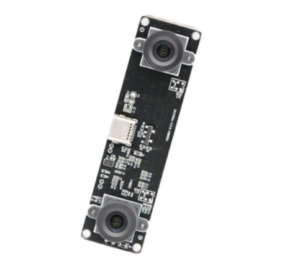

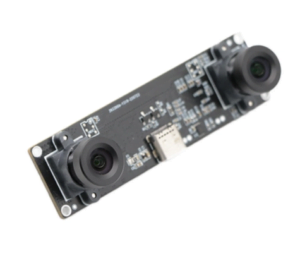

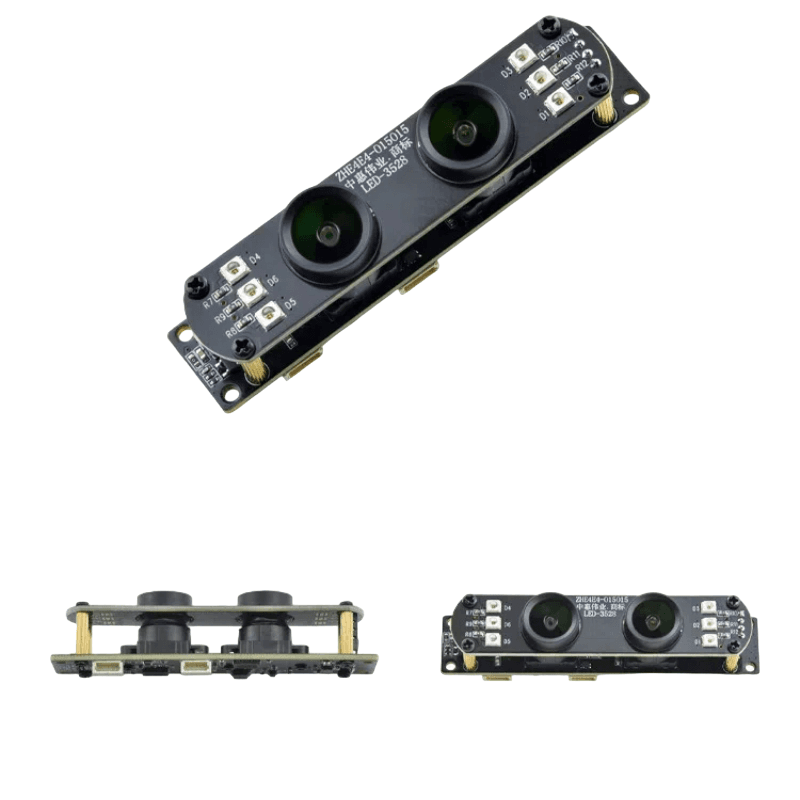

Dual Lens USB Camera Module Customized CMOS OG02B10 Low Light 2MP Fixed Focus 72.4 Degree for Windows Linux Android
- High-Performance MIPI Sensor:Equipped with the IMX462 MIPI sensor, supporting 2MP resolution, outputting 1080P HD video, and achieving a frame rate of up to 120fps for smoother dynamic capture.
- Precise Face Recognition:Built-in face recognition algorithm with fast recognition speed and high accuracy, suitable for scenarios such as access control and time attendance that require face recognition.
- HDR High Dynamic Range:Supports HDR functionality to automatically balance light in high-contrast scenes, ensuring both bright and dark parts of the image are clearly presented.
- Outdoor Durable Design:Features waterproof and dustproof design, adapting to complex outdoor environments and ensuring long-term stable operation.
- Compact Structural Design:With a compact size of 1/2.7″, it is easy to integrate into various devices, meeting diverse installation needs.
Detail Information
| Type: | Dual Camera Module | Sensor: | 1/2.9’’ OG02B10 |
|---|---|---|---|
| Resolution: | 1920*1080 | Dimensions: | Customizable |
| Lens FOV: | 120°(optional) | Focus Type: | Auto Focus/Fixec Focus |
| Interface: | USB | Feature: | Lens |
Key Feature:
2MP resolution with 1/2.9’’ OG02B10 CMOS sensor
Auto Focus
3.0µm x 3.0µm
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
1920×1080 120fps
It supports the below resolution & frame rate:
MJPG:
1920×1080 120fps 1280×720 30fps
800×600 30fps 640×480 30fps
320×240 30fps
Specification
| Specification | |
| Model No | HSTD-2MP-OG02B10-HQK1 |
| Sensor | 1/2.9’’ Omnivision OG02B10 |
| Pixel | 2 Mega Pixel |
| Most effective pixels | 1600(H) x 1200(V) |
| Pixel Size | 3.0µm x 3.0µm |
| Chroma | COLOR |
| Compression format | MJPG / YUY2 |
| Resolution & Frame rate | See above |
| Shutter Type | Global shutter |
| Focus type | Fixed Focus/Manually Adjustable |
| Clock Frequency | 6 to 27 MHz |
| Chief Ray Angle (CRA) | 15° |
| Microphone | Optional |
| Interface type | USB 2.0 high speed |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma |
| Lens | Lens Structure: 6G |
| Lens Size: 1/2.5 inch | |
| H FOV: 90° | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, <200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | (compatible ) |
| Storage temperature | -20°C to 75°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 |
| Linux with UVC(above linux-2.6.26) | |
| MAC-OS X 10.4.8 or later | |
| Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
#telecommunications #iot #robotics #ai #embedded #hardware #medicaldevice #drone #artificialintelligence #security #surveillance #video #imaging #3d #facialrecognition #camera #electronics #robot #consumerElectronics #machinevision #deeplearning #vr #ar #virtualreality #accesscontrol #tablet #smartphone
Shenzhen HSTD Import and Trade Co., Ltd.,

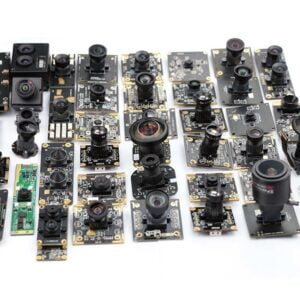

We customize all kinds of AHD /USB /MIPI /DVP /IPC camera module from 1 MP to 48 MP as per your request
