MIPI Face Recognition Camera Module, OEM Face Recognition Camera Module, MIPI mobile phone camera module

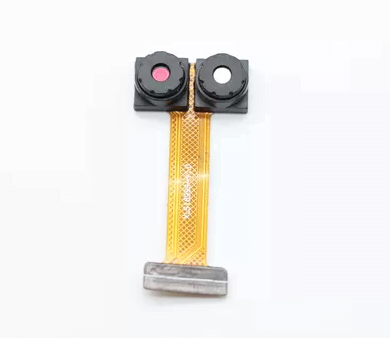

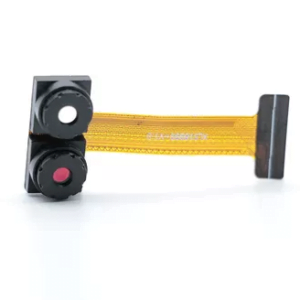

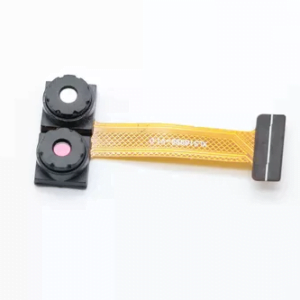

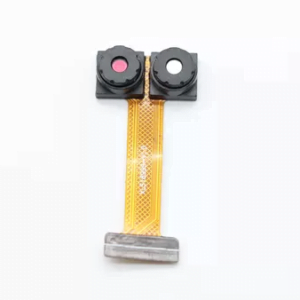

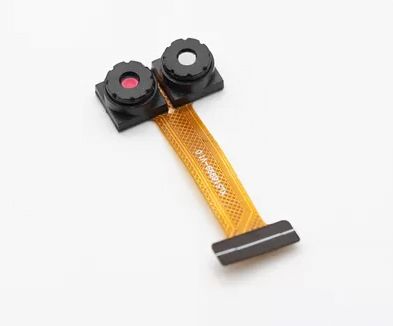

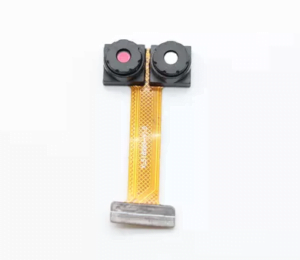

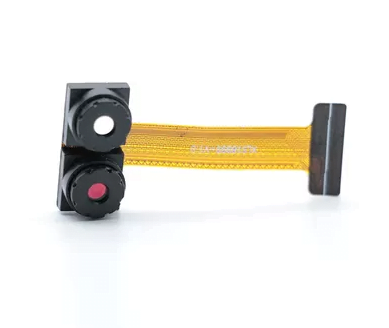

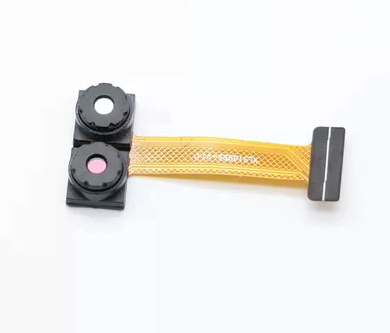

This is a binocular MIPI camera module. The image sensors are GC1054 and GC0308 from GalaxyCore.GC1054 is a high quality 720P CMOS image sensor,for mobile phone camera applications and digital camera products.GC1054 incorporates a 1280H x 720V pixel array.The full scale integration of high-performance and low power functions makes the GC1054 best fit the design,reduce implementation process,and extend the battery life of mothion camera,car DVR,and a wide variety of mobile application.
While the GC0308 features 640V x480H resolution with 1/6.5 inch optical format and 4-transistor pixel structure for high image quality and low noise variations.
This dual lens camera module is designed as a facial recognition camera for attendance machine.But we only manufacture the camera modules,regarding to the software for face recognition,you will need to solve it yourself.
Detail Information
| Type: | MIPI Camera Module | Sensor: | GalaxyCore GC1054+GC0308 |
|---|---|---|---|
| Resolution: | 1MP+0.3MP | Dimensions: | Customizable |
| Lens FOV: | 70°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | Dual Lens |
Key Feature:
GalaxyCore.GC1054 720P CMOS image sensor
Module size is small: 24MMx18MM
1280H x 720V pixel array
1/4” CMOS autofocus
mipi Camera Module
M8 lens D:70°H:65°V:40°/650IR
Support Linux, Android, Mac and Windows
UVC compliant, Plug & Play
Customization is fully supported
https://www.gophotonics.com/products/cmos-image-sensors/galaxycore-microelectronics/21-117-gc1054
It supports the below resolution & frame rate:
MJPG:
1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
YUY2:
1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
Specification
| Signal | 1MP | |
| Image sensor | GalaxyCore GC1054 | |
| Image sensor size | 1/4” CMOS | |
| Effective Pixels | 1280X720 | |
| Pixel Size | 3.0umX3.0um | |
| Optical distortion | ≤1% | |
| Image sensor Data output | Raw Data 10bits | |
| Video output | MPJG / YUY2 | |
| SNR max | ≤41.4dB | |
| Dynamic range | ≤70.7dB | |
| Lens view | M8/D:70°H:65°V:40°/650IR | |
| Lens view | M8/D:70°H:65°V:40°/850IR | |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
