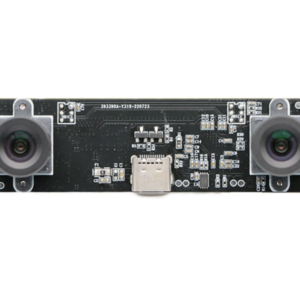

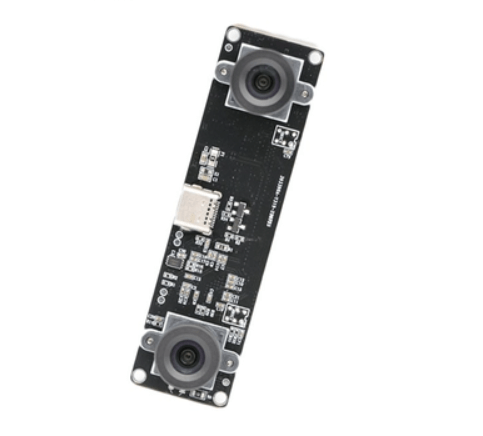

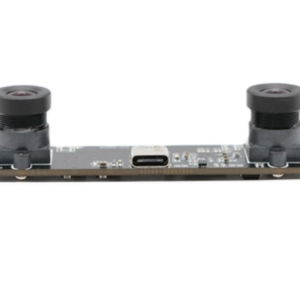

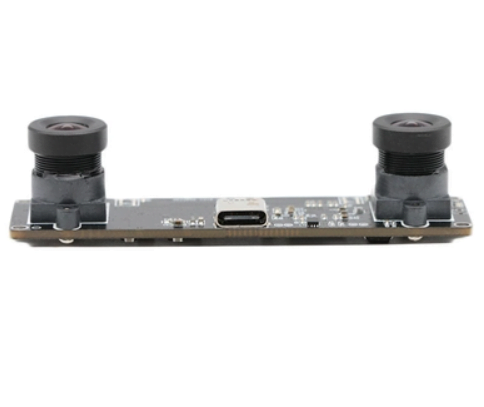

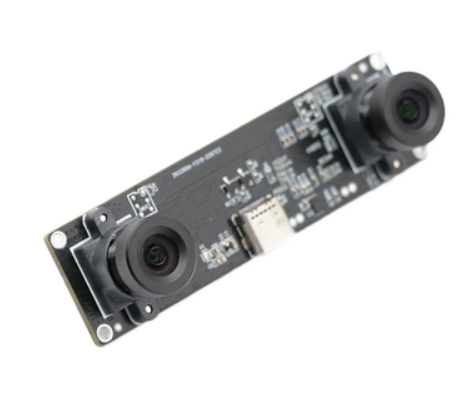

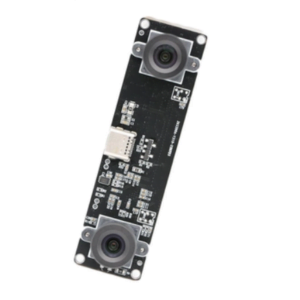

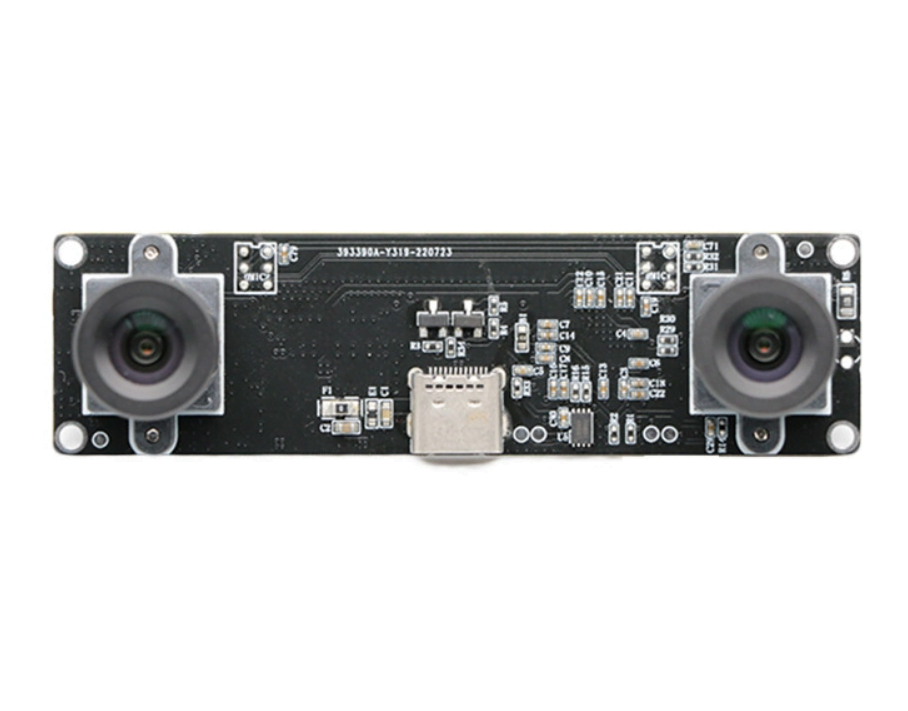

Dual Lens Camera Module For VR / AR Shooting OV2735 sensor

Binocular Sync Vibration Camera

This is a full featured HD 1080p/720p camera module with OV2735 sensor. Refers to devices that support IP cameras, HD analog cameras, or 1080p video capture at 30fps. Support low power consumption mode, maintain stable image quality in the operating temperature range of 0″C to 60%C, and significantly reduce power consumption. This module can be programmed to control: gain, exposure, frame rate, image size, horizontal mirroring, Vertical flip, crop and window.

It supports the below resolution & frame rate:



MJPG:

1080p: 1920×1080 Linear@ 60fps 1080p: 1920×1080 HDR+LTM @30fps



YUY2:

1080p: 1920×1080 Linear@ 60fps 1080p: 1920×1080 HDR+LTM @30fps





Key Feature:

Type C interface

Module size is small: 24MMx24MM

OV2735 sensor

HDR (high dynamic range) function improves image quality and contrast behavior

Binocular Sync Vibration Camera

UVC compliant, Plug & Play

Support Linux, Android, Mac and Windows

A wide range of different FOV lenses are available



Active array size	1920(H) x 1080(V)
Shutter type	Electronic rolling shutter (ERS)
Optical format	1/2.7-inch
Lens chief ray angle	17 degree
ADC	10-bit
Sensitivity	5800 mV/Lux-sec
SNRmax	TdB
Dynamic range	TdB
Scan mode	Progressive scan
Input clock	Max 50MHz
Pixel clock	Max 148.5MHz
Max. frame rate	1080p: 1920×1080 Linear@ 60fps 1080p: 1920×1080 HDR+LTM @30fps
Supply voltage	Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V
Power consumption	75mW@1080p30 (MIPI) 54.5mW@1080p30 (DVP w/o I/O) 124mW@HDR-LTM1080p30 (MIPI) 107mW@HDR-LTM 1080p30 (DVP w/o I/O)
Operating temperature	0～60℃
