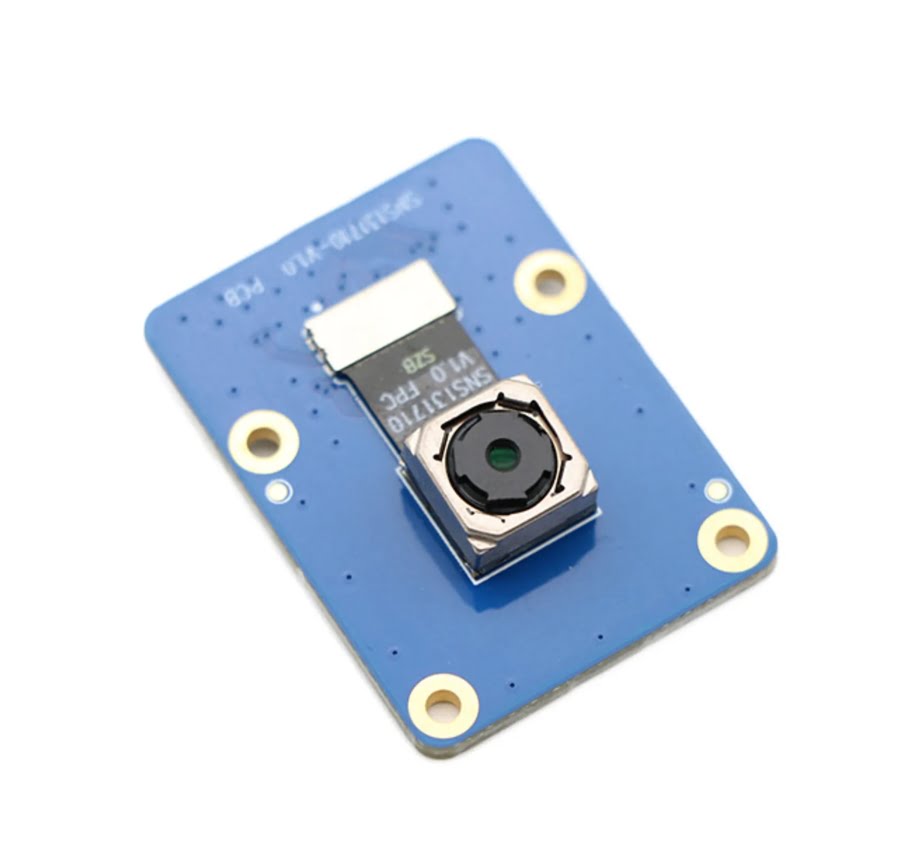

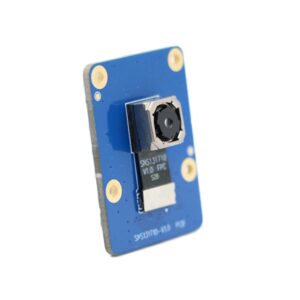

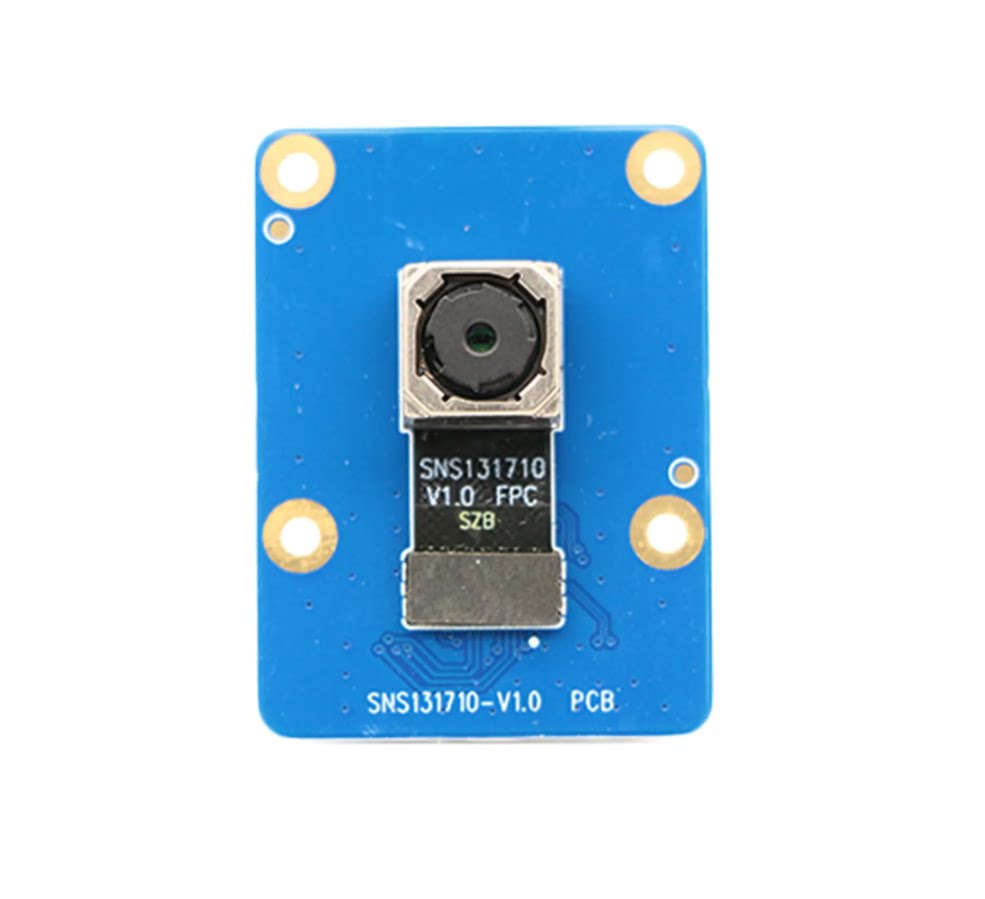

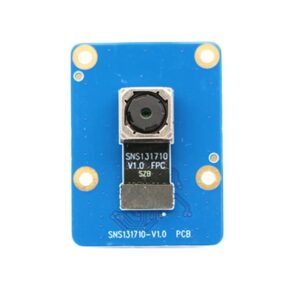

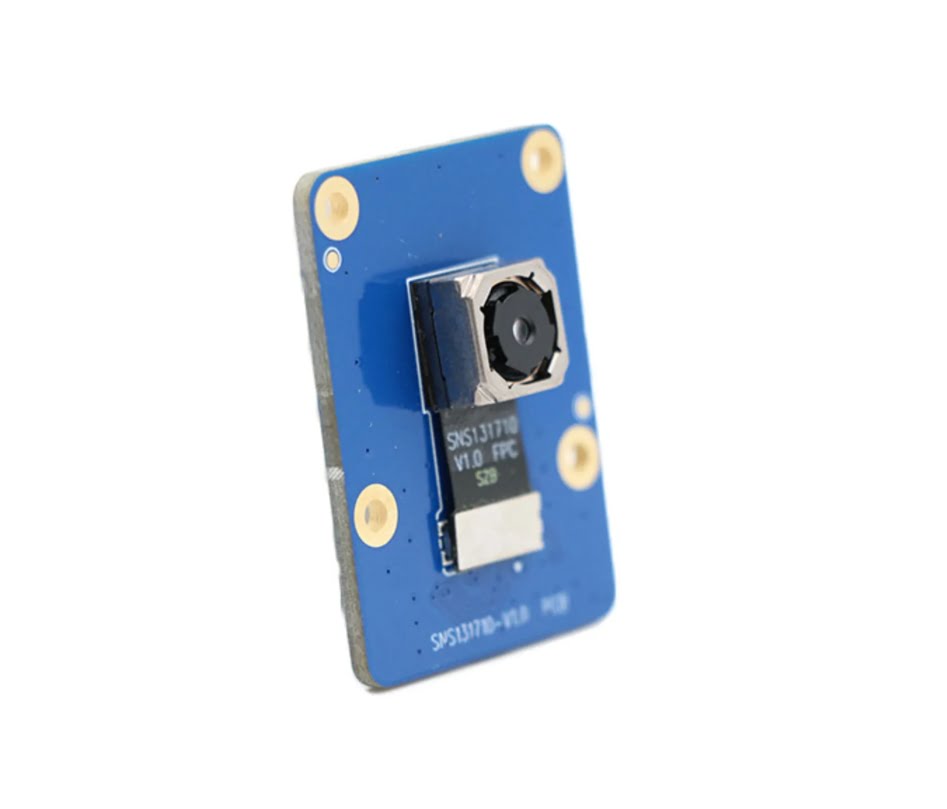

Autofocus 13MP Mipi Camera Module with Samsung S5K3L2 For Smartphones
- High-Definition Imaging, Precise Details：Equipped with the Samsung S5K3L2 sensor, this 13MP autofocus camera module delivers stunning photos and videos with vivid colors and crisp details, capturing every breathtaking moment.
- Rapid Autofocus, Seize Every Moment：Featuring an efficient autofocus system, it swiftly locks onto subjects, whether capturing dynamic scenes or serene landscapes, ensuring no moment escapes unnoticed.
- MIPI Interface, Wide Compatibility：Compatible with a variety of smartphone platforms through its MIPI interface, this module simplifies replacement or upgrade processes, enhancing your photography experience.
- Compact Design, Effortless Installation：Boasting a sleek and compact design, it is portable and straightforward to install, requiring no complex tools for seamless integration into smartphones or other smart devices.
- Stable & Reliable, Long-Lasting Use：Crafted from premium materials and rigorously tested, this camera module ensures stable operation under diverse conditions, extending its lifespan for years of enjoyment.
Detail Information
| Type: | MIPI Camera Module | Sensor: | 1/3.06’’ Samsung S5K3L2 |
|---|---|---|---|
| Resolution: | 4208*3120 | Dimensions: | Customizable |
| Lens FOV: | 78°(optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Lens |
Key Feature:
13MP resolution with Samsung S5K3L2 CMOS sensor
Auto Focus
Dimensions: 17.6*10.8
1.12µm x 1.12µm
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
4208*3120 30FPS 3840*2160 30fps 2592*1944 30fps
2048*1536 30fps 1920×1080 60fps 1280×720 120fps 800×600 120fps 640×480 240fps 320×240 240fps
Specification
| Model No | hstd-13MP-Samsung S5K3L2-AF-mipi |
| Sensor | 1/3.06’’ Samsung S5K3L2 CMOS |
| Pixel | 13 Mega Pixel |
| Most effective pixels | 4208*3120 30FPS |
| Pixel Size | 1.12um*1.12um |
| Focus type | Auto Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
