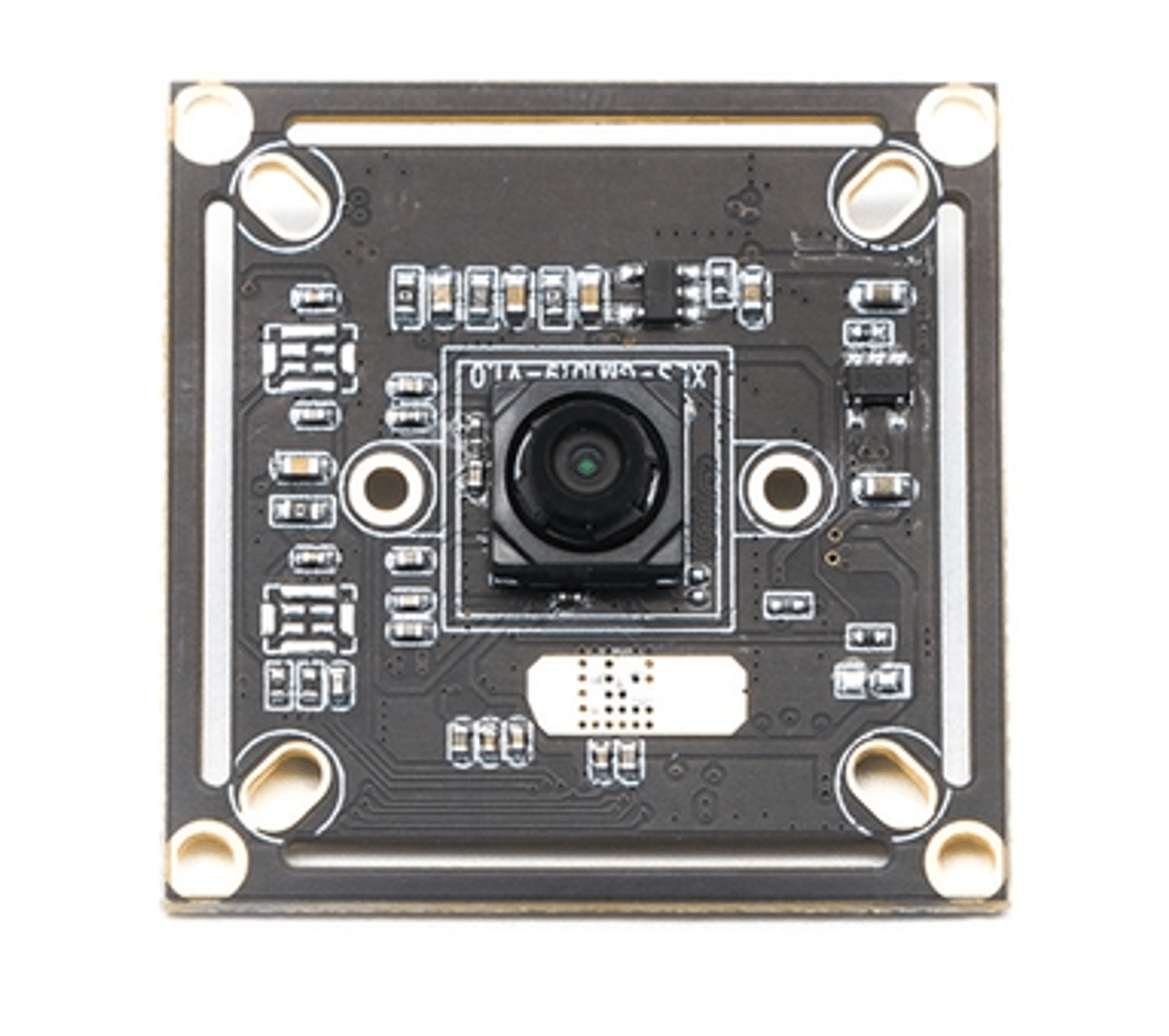

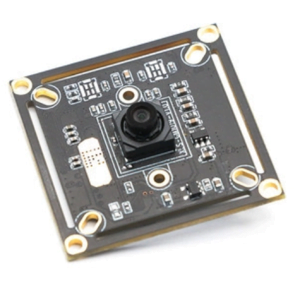

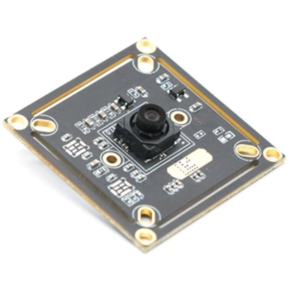

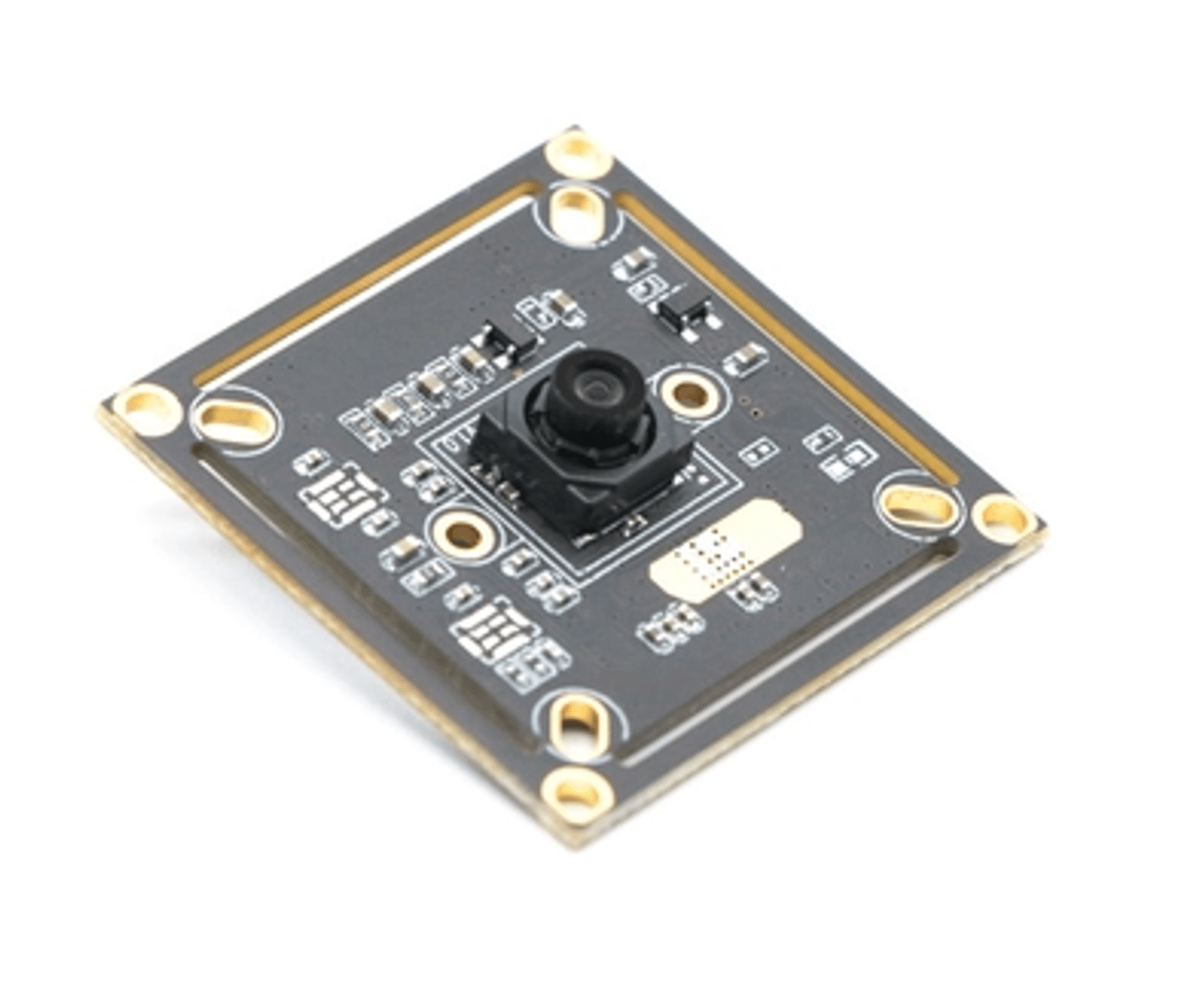

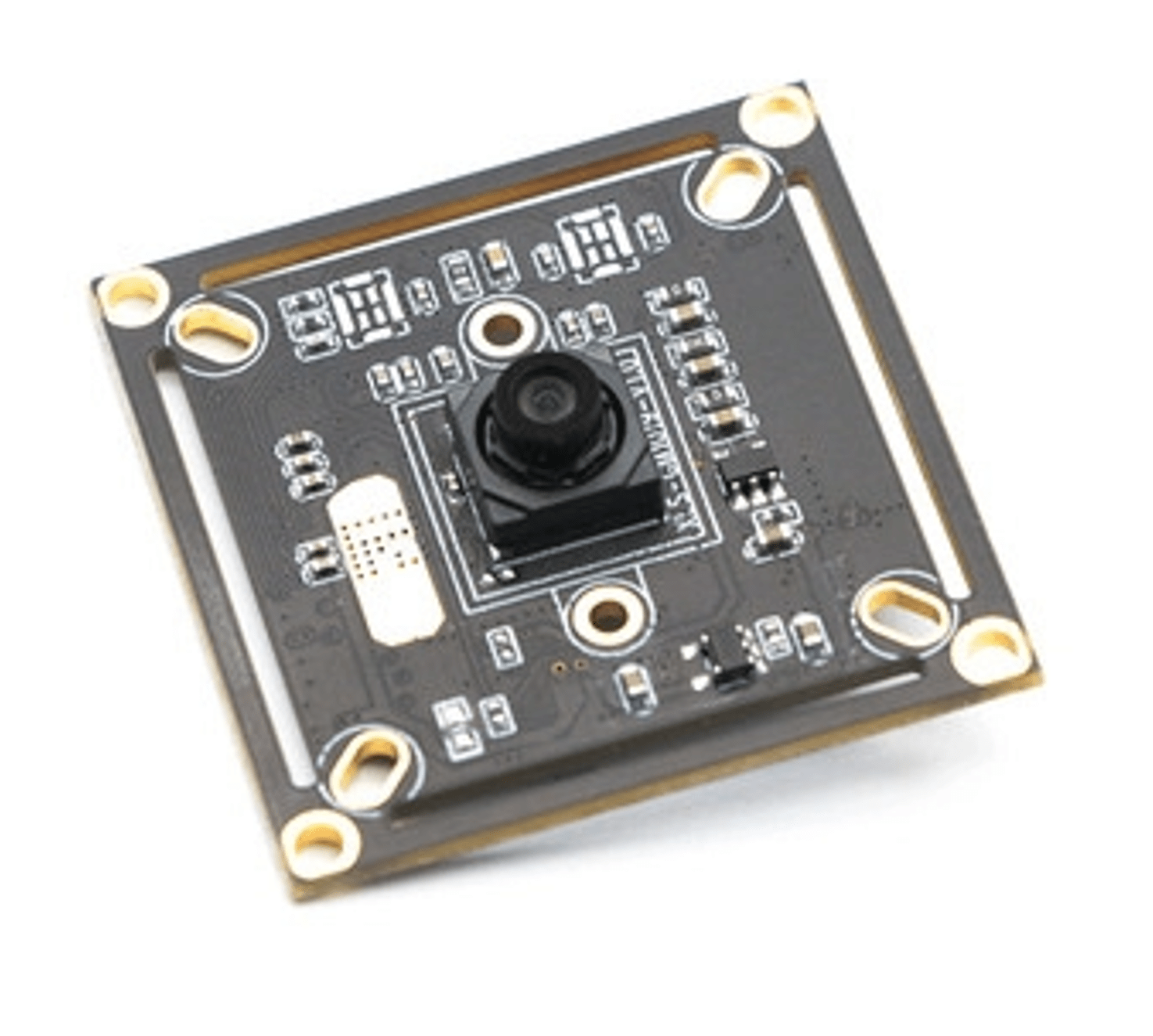

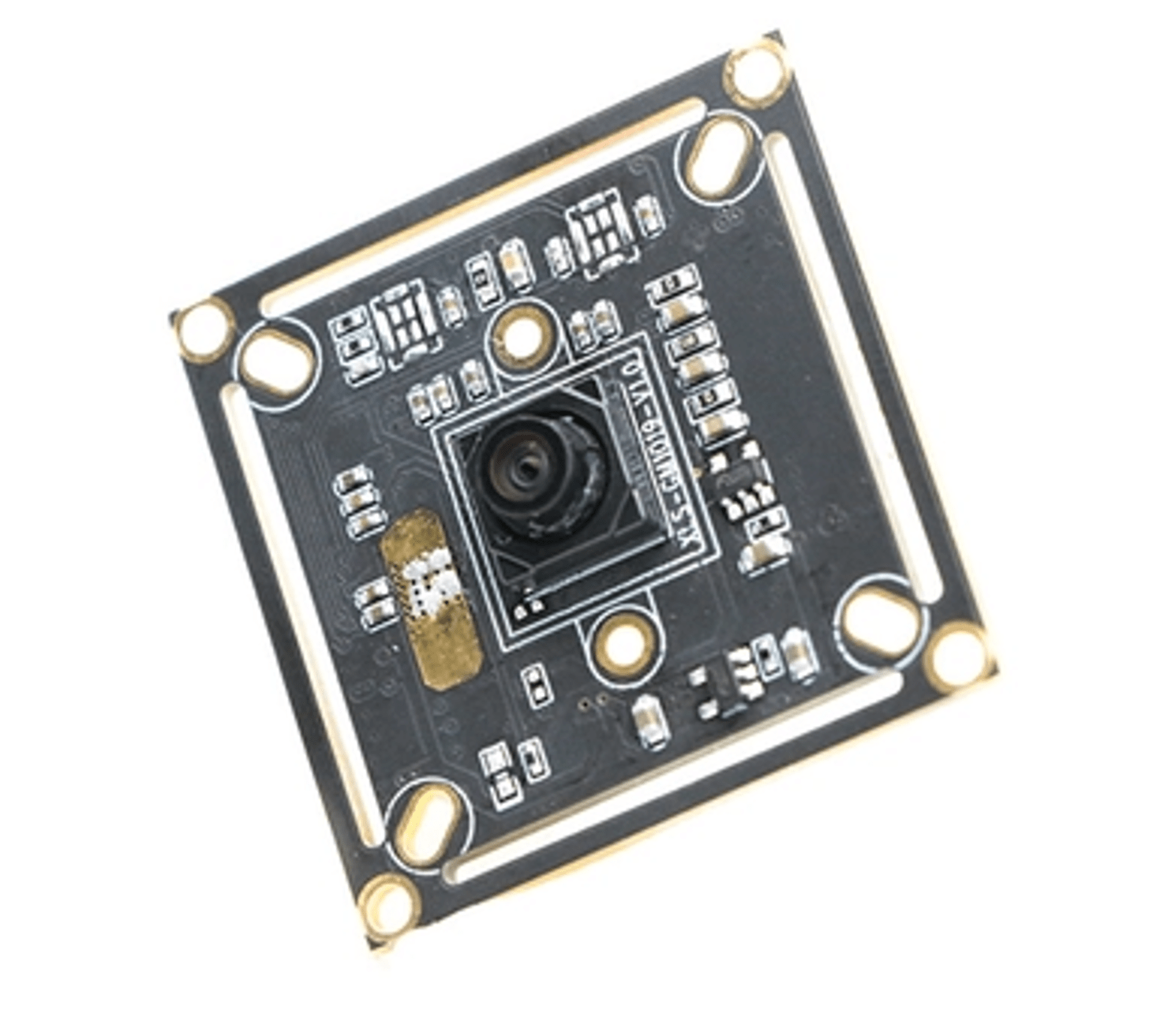

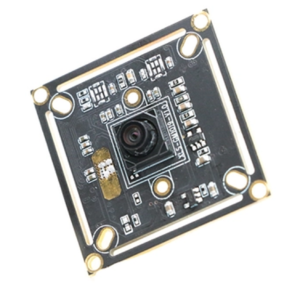

Auto Focus ,SONY IMX298, 16MP Camera Module,16MP high resolution,USB camera module
This 16MP camera module uses Sony IMX298 CMOS sensor, which has high resolution and high sensitivity. Its lens has auto focus function, with a focus range of 0-1023. The interface uses a fast and convenient USB interface, which is very competitive in various scene applications.
https://dlscorp.com/wp-content/uploads/2019/08/ProductBrief_IMX298_20160210.pdf
Detail Information
| Type: | USB Camera Module | Sensor: | 1/2.8’’ Omnivision imx298 |
|---|---|---|---|
| Resolution: | 16MP | Dimensions: | Customizable |
| Lens FOV: | 70°(optional) | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | Lens |
Key Feature:
16MP resolution with SONY IMX298 CMOS sensor
Fixed Focus
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
4656×3496@10FPS; 4208×3120@10FPS; 4000×3000@10FPS; 3264×2448@10FPS; 2592×1944@10FPS; 2320×1744@30FPS; 2304×1728@30FPS; 2048×1536@30FPS; 1920×1080@30FPS; 1280×720@30FPS; 800×600@30FPS; 640×480@30FPS;
Specification
| Model No | hstd-16MP-IMX298-AF |
| Sensor | 1/2.8’’ SONY IMX298 CMOS |
| Pixel | 16 Mega Pixel |
| Most effective pixels | 4656 (H) x 3496 (V) |
| Pixel Size | 1.12µm x 1.12µm |
| Focus type | Fixed Focus |
| Compression format | MJPG |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
