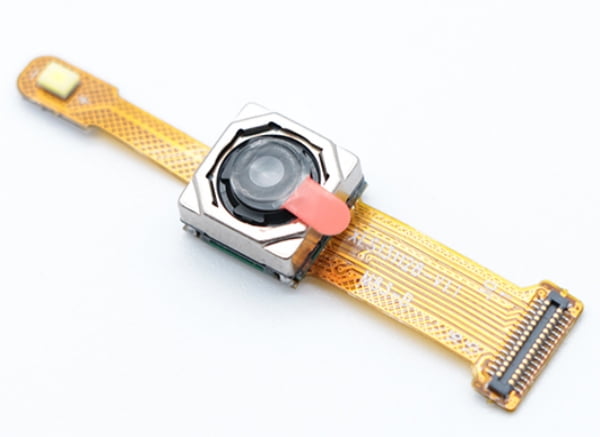

Auto Focus 1.4um*1.4um 13MP MIPI camera module with Sony imx214 CMOS for Customer customization
- Ultra-High Definition Imaging: Equipped with Sony IMX214 CMOS sensor, boasting 13MP resolution and 1.4um*1.4um large pixel size, delivering vivid, high-detail images and videos with stunning clarity.
- Advanced Auto Focus Technology: Featuring an integrated auto-focus system, it ensures swift and accurate focusing for both close-ups and long-range shots, capturing every memorable moment flawlessly.
- Efficient MIPI Interface: Supports MIPI interface for high-speed and stable data transmission, empowering real-time shooting and HD video streaming with ease.
- Customer-Tailored Customization: Designed with customer needs in mind, offering a range of customization services to cater to unique application scenarios, crafting one-of-a-kind camera modules.
- Outstanding Performance & Compatibility: Rigorously tested for reliable operation in diverse environments, compatible with multiple processors and operating systems, seamlessly integrating into a wide array of smart devices.
https://www.sony-semicon.com/en/products/is/camera/index.html
Detail Information
| Type: | MIPI Camera Module | Sensor: | 1/3’’ sony imx214 |
|---|---|---|---|
| Resolution: | 3840*2160 | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Lens |
Key Feature:
13MP resolution with SONY IMX214 CMOS sensor
Auto Focus
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
3840*2160 30fps 2592*1944 30fps
2048*1536 30fps 1920*1080 30fps
1280*720 30fps 800*600 30fps
640*480 30fps 320*240 30fps
Specification
| Model No | hstd-8MP-imx214-FF-mipi |
| Sensor | 1/3’’ SONY IMX214 CMOS |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3840*2160 20FPS |
| Pixel Size | 1.4µm x 1.4µm |
| Focus type | Fixed Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
