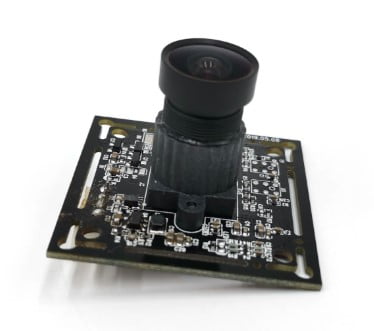

Appliance virtual reality camera with Sony IMX258 by usb interface Auto Focus camera module
- Sony IMX258 Sensor: Equipped with the premium Sony IMX258 image sensor, capturing exquisite image quality with precise color reproduction, ensuring every shot is crisp and lifelike.
- Auto Focus Technology: Features an advanced auto-focus camera module that swiftly locks onto subjects, capturing clear moments effortlessly, be it static or dynamic scenes.
- Virtual Reality Compatibility: Designed specifically for virtual reality applications, seamlessly integrating into the VR ecosystem to offer users an immersive visual experience, exploring unknown realms.
- USB Interface for Plug-and-Play: Comes with a convenient USB interface, allowing for hassle-free connection to computers or mobile devices, instantly initiating your creative photography journey.
- Compact & Portable Design: Boasts a sleek and compact body design, easy to carry and mount, suitable for both professional shooting and daily recording, catering to diverse needs with ease.
Detail Information
| Type: | USB Camera Module | Sensor: | 1/3.06’’ sony imx258 |
|---|---|---|---|
| Resolution: | 4208*3120 | Dimensions: | Customizable |
| Lens FOV: | FOV95°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Lens |
Key Feature:
13MP resolution with SONY IMX258 CMOS sensor
Fixed Focus
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
4208*3120 10fps 3840*2160 25fps
3264*1836 25fps 2048*1536 25fps
19201080 25fps 1280*960 25fps
1280*720 25fps 800*600 25fps 640×480 25fps 320×240 25fps
Specification
| Model No | hstd-13MP-imx258-FF-mipi |
| Sensor | 1/3.06’’ SONY IMX258 CMOS |
| Pixel | 13 Mega Pixel |
| Most effective pixels | 3840*2160 20FPS |
| Pixel Size | 1.4µm x 1.4µm |
| Focus type | Fixed Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 95° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
