Advanced 3D TOF Sensor and camera for Precision 3D Imaging
Our Advanced 3D Time-of-Flight (ToF) sensor and camera is a high-precision 3D imaging device that constructs millimeter-level precision depth maps in real time by measuring the time it takes for an infrared light pulse to travel from emission to return. This product features a high frame rate (e.g., 25 FPS), a wide field of view, and an effective ranging range of 0.4–5 meters, making it suitable for industrial automation, logistics sorting, robot navigation, and safety protection scenarios. It supports multiple image outputs, including point cloud, depth, and amplitude, and allows for flexible configuration of the Region of Interest (ROI) via software, enabling intelligent spatial perception and rapid response, significantly improving system safety and operational efficiency.
- High-Precision 3D Imaging: Advanced Time-of-Flight (TOF) sensor captures depth data with exceptional accuracy, delivering high-resolution 3D imaging for industrial inspection, robotics, and professional applications.
- Real-Time Processing: Low-latency data transmission and powerful processing enable millisecond-level 3D modeling, ideal for dynamic environments.
- Multi-Scenario Adaptability: Works reliably indoors/outdoors with anti-interference capabilities, suitable for security, autonomous vehicles, and AR/VR
- User-Friendly Integration: Comes with SDK/API support and mainstream platform compatibility for seamless system integration.
- Robust Durability: Industrial-grade protection (dust/water resistance) ensures stable performance in harsh conditions.
Detail Information
| Type: | DTOF Camera Module | Sensor: | A00BM188 |
|---|---|---|---|
| Sensor Type: | SPAD Image Sensor | Effective pixels: | 40*30,1.2K |
| Interface: | USB | Output: | Point Cloud/Depth/Histogram |
| Depth frame rate: | 40 × 30 @ max 15 fps | Depth of Field: | DFOV: 70° |
Key Feature:
- High-Precision Depth Sensing：Accuracy of ±1.5 cm at close range (5 cm–1 m) and ±1% at longer distances (1–5 m), meeting industrial-grade measurement requirements
- Compact Resolution with High Frame Rate: 40×30 (1.2K) effective pixels, supporting real-time depth output at up to 15 FPS for rapid response.
- All-Environment Performance: Reliable operation up to 5 meters indoors, and stable performance up to 3.5 meters outdoors under bright sunlight (50 klux, 50% reflectivity).
- Wide Field of View: 70° diagonal field of view (DFOV) for broader scene coverage.
- Eye-Safe & Reliable: Compliant with Class 1 laser eye safety standards, suitable for human-robot coexistence environments.
- Low Power & Plug-and-Play: Powered via USB 5V/500mA with power consumption <900 mW, and connects easily through a USB 2.0 interface.
- Multi-Platform Compatibility: Supports Windows 10/11, Linux, ARM Linux, and ROS, with C/C++ and ROS SDKs provided for fast integration into robotics, AR/VR, smart security, and more.
Specification
| DTOF 3D Camera Spec | |
| Specification | |
| Model | A00BM188 |
| Wave | 940nm |
| Sensor Type | SPAD Image Sensor |
| Effective pixels | 40*30,1.2K |
| Interface | USB2.0 |
| Output | Point Cloud/Depth/Histogram |
| Depth frame rate | 40 × 30 @ max 15 fps |
| Depth of Field | DFOV: 70° |
| Work distance range | Indoor：5cm-5m Outdoor：5cm-3.5m@50klux, 50%reflection |
| Accuracy | 1.5cm@range: 5cm-1m 1%@range: 1m-5m |
| Eye-safety | Class 1 |
| Power supply | USB 5V 500mA |
| Consumption | < 900mW@15fps |
| Working temperature | -20°C~60°C |
| Storage temperature | -40°C~85°C |
| Software Environment | C / C++ / ROS SDK |
| Operating system support | Windows 10/11, Linux, ARM Linux/ROS |

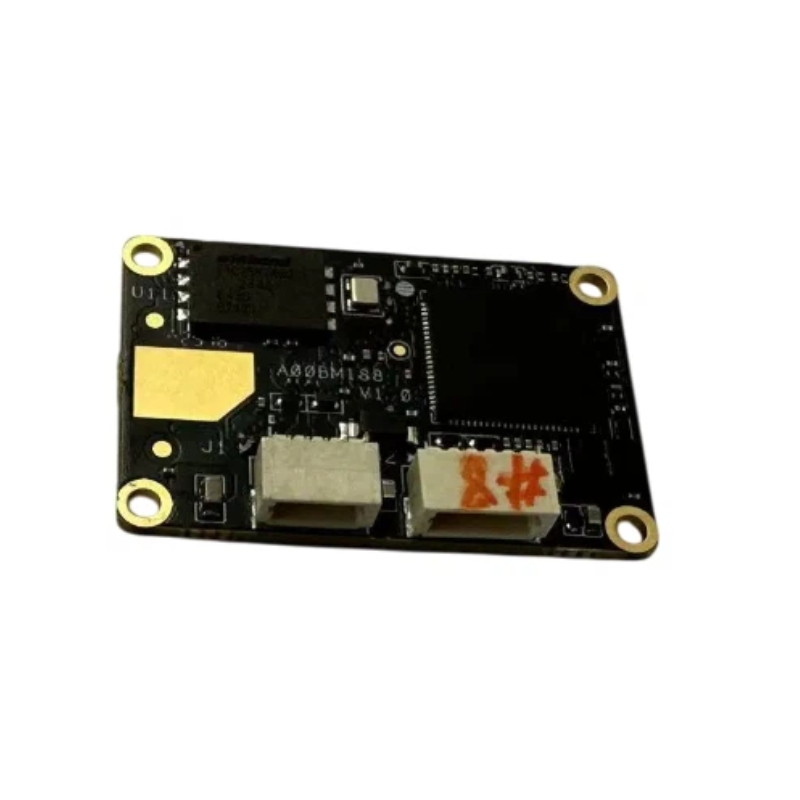

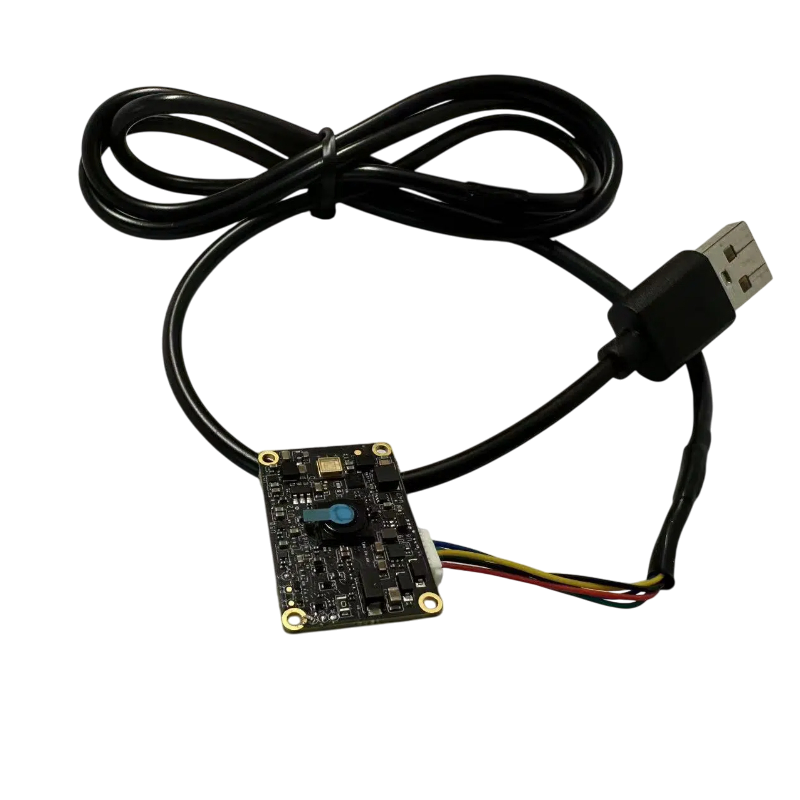

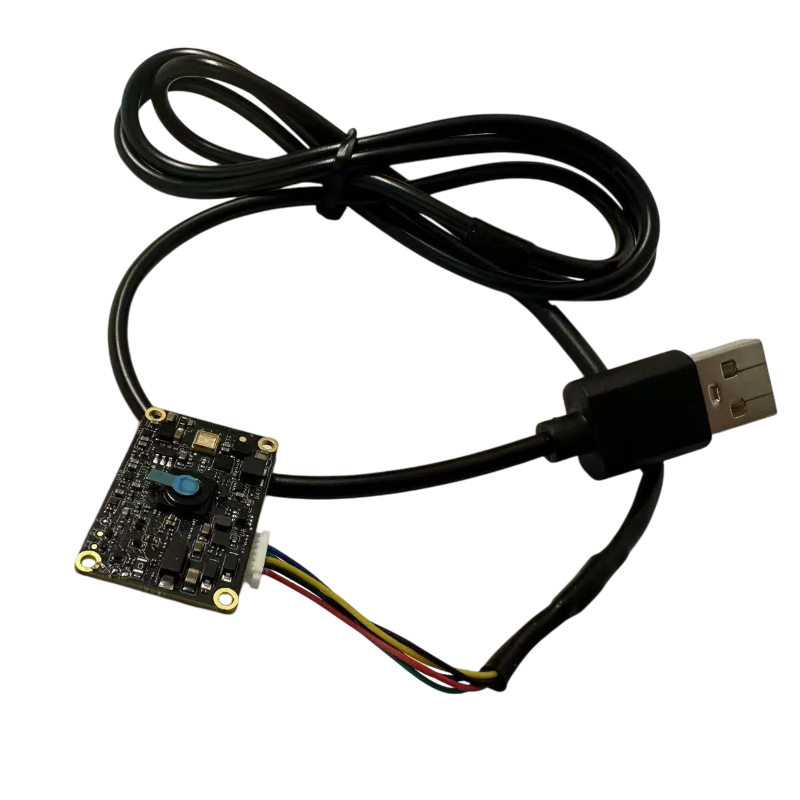

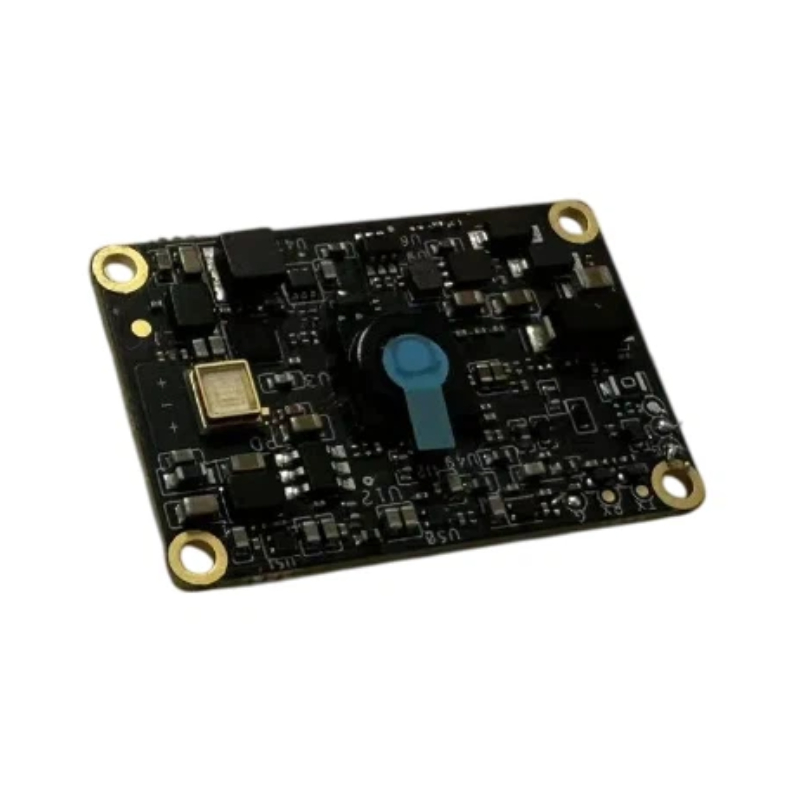

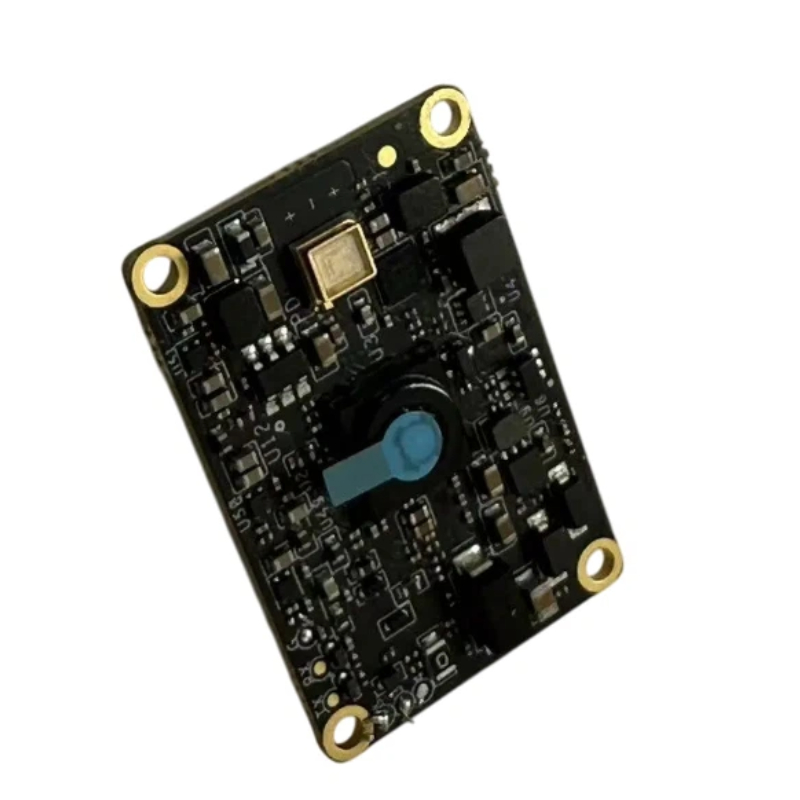

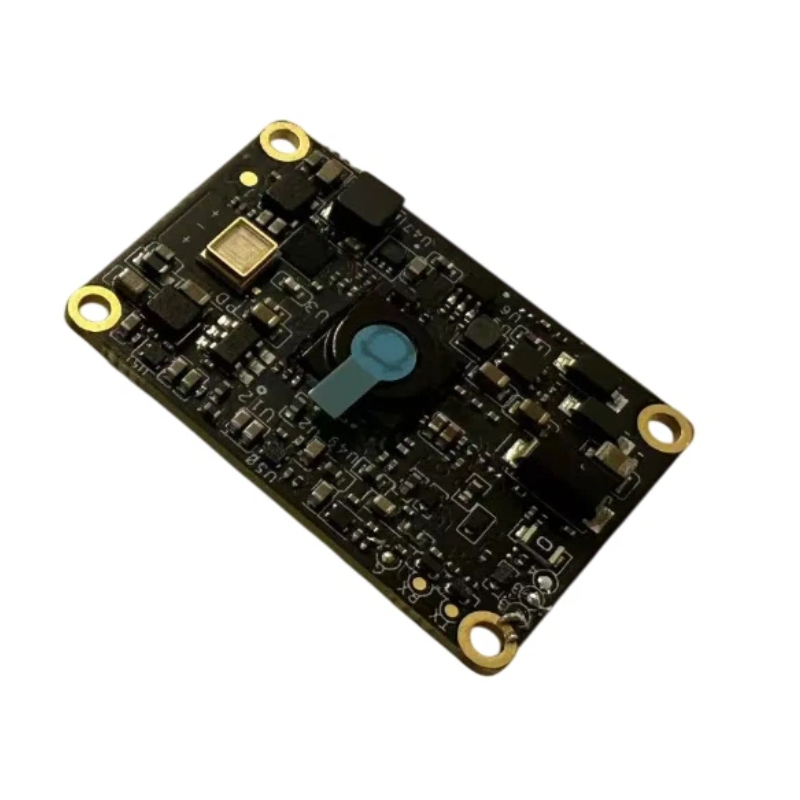

Product photos
