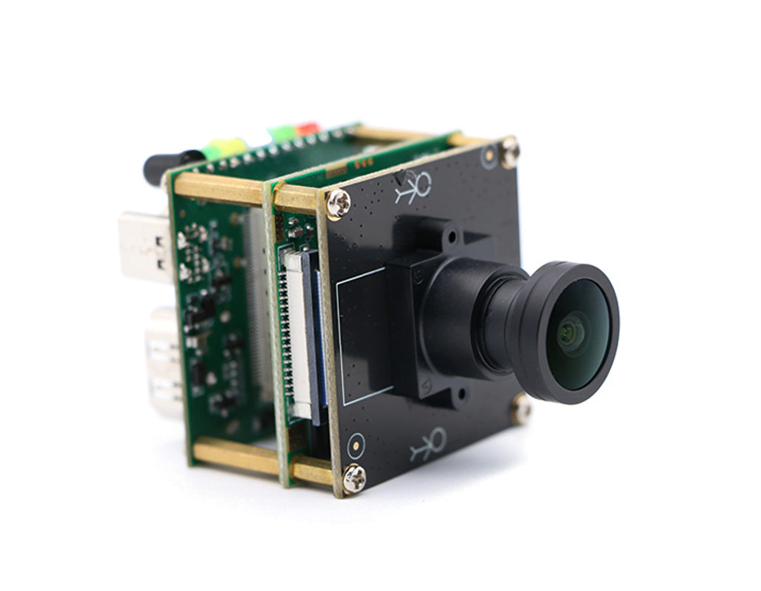

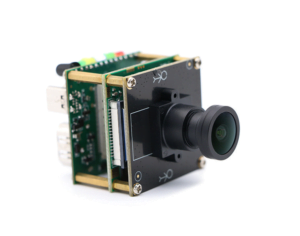

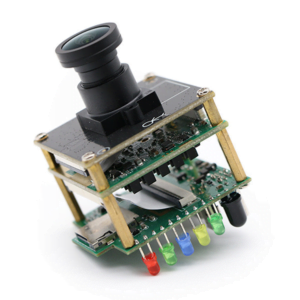

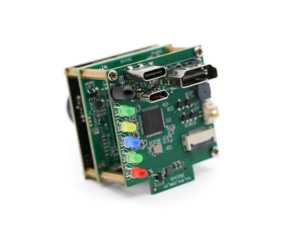

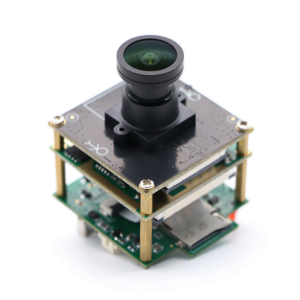

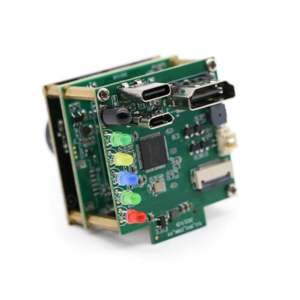

This is our latest 4k camera module, using the Sony imx415 module.
This product features an HDMI interface, driver-free, plug-and-play, 8 megapixels, FF fixed focus, up to 3840*2160 pixels, 30 frame rate.
Widely used in machine vision applications, industrial robot video conferencing, industrial cameras, etc.
Detail Information
| Type: | 8mp Camera Module | Sensor: | 1/2.8” SONY IMX415 CMOS |
|---|---|---|---|
| Resolution: | 8MP 3840(H) X 2160(V) | Dimensions: | (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | HDR |
| High Light: | IMX415 HDMI Camera Module, IMX415 CMOS Camera Module, 30fps Auto Focus Camera Module | ||
Key Feature:
Imx415 8MP CMOS image sensor
Module size is small: 24MMx24MM
3840H x 2160V pixel array
1/2.8” CMOS autofocus
HDMI Camera Module
M8 lens D:70°H:65°V:40°/650IR
Support Linux, Android, Mac and Windows
UVC compliant, Plug & Play
Customization is fully supported
https://www.gophotonics.com/products/cmos-image-sensors/galaxycore-microelectronics/21-117-gc1054
It supports the below resolution & frame rate:
MJPG:
3840 x2160 @ 30fps 2592×1944 @30fps 1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
YUY2:
3840 x2160 @ 30fps 2592×1944 @30fps 1920 x1080 @ 60fps 1280×960 @60fps
1280×720 @ 60fps 800×600 @ 60fps
640×480 @ 60 fps 320×240 @ 60fps
Specification
| Model No | HSTD-1mx415-4k8mp |
| Sensor | 1/2.8’’ SONY IMX415 CMOS |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3840(H) x 2160(V) |
| Pixel Size | 1.45µm x 1.45µm |
| Image area | 3864um (H) x 2196um (V) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| Chroma | Color, RGB |
| Clock Frequency | 6 to 72 MHz |
| Microphones | Built-in |
| Interface type | HDMI |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens | Focal length: 3.6mm |
| Lens construction: 5E+IR | |
| D FOV: 100 degree | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | HDMI POWER |
| Operating Voltage | DC 5V |
| Operating Current | 260mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | Customizable |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
