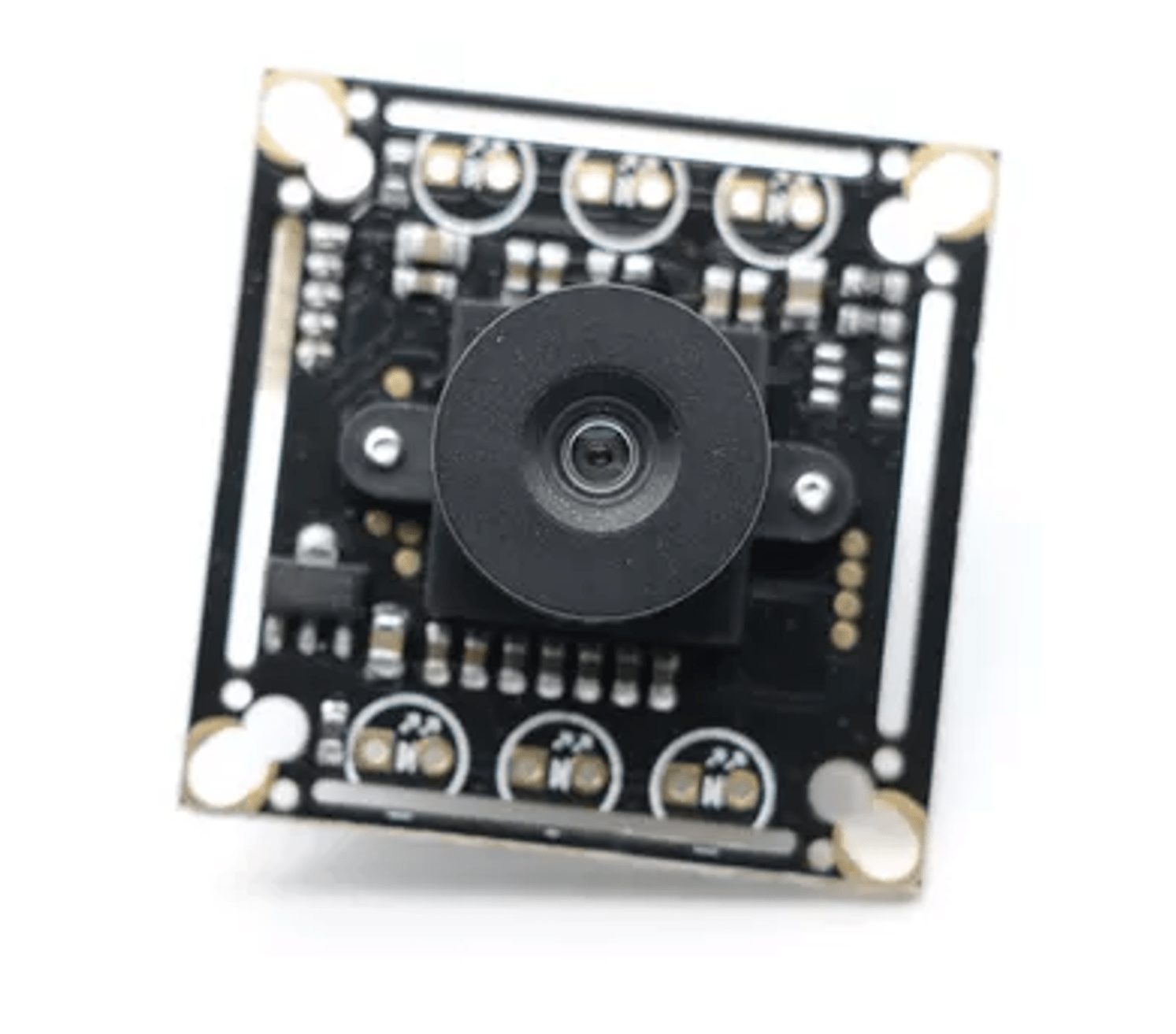

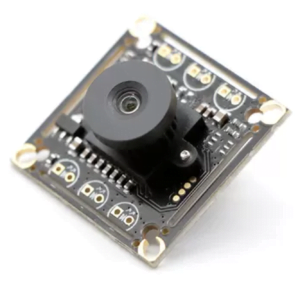

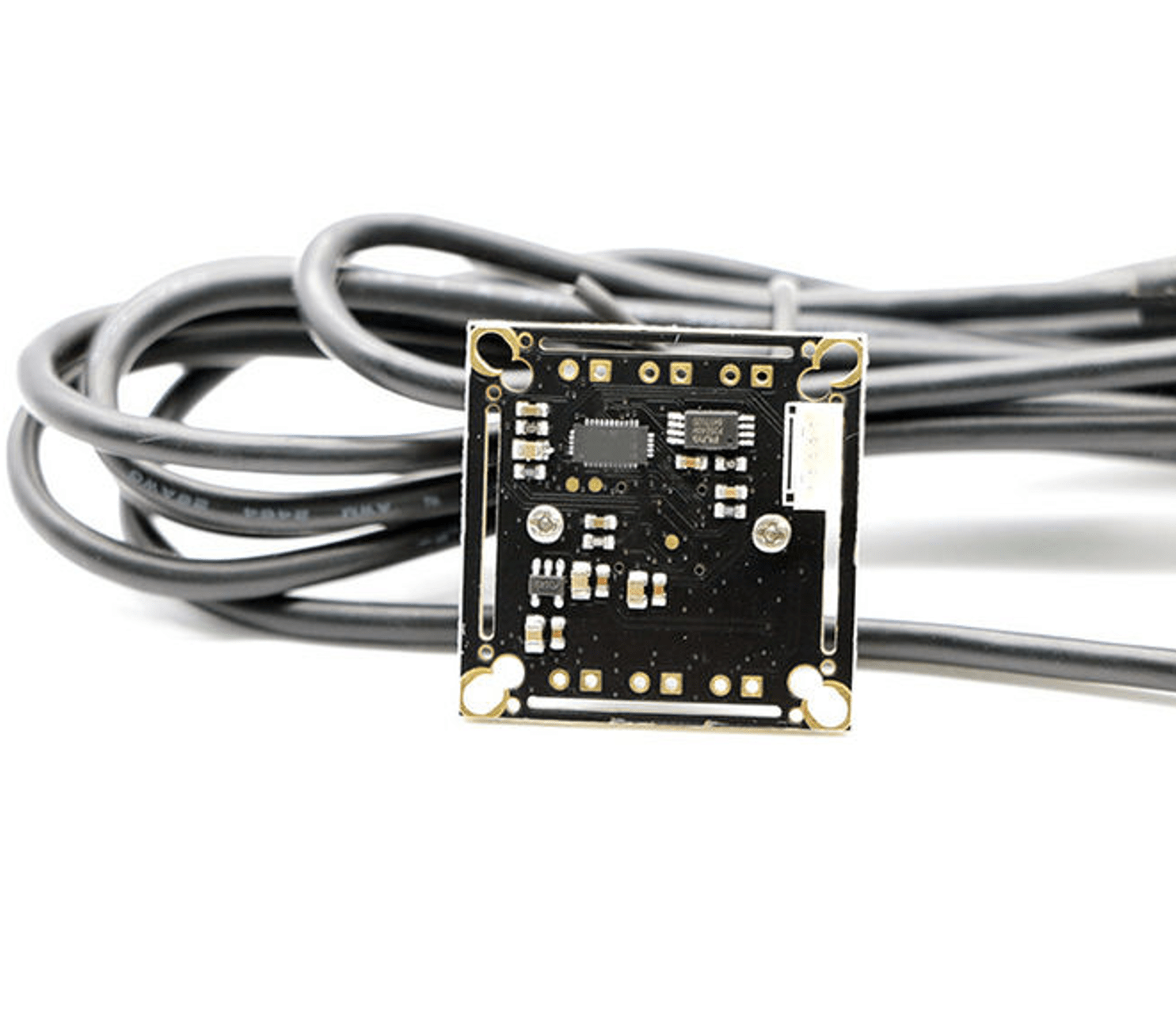

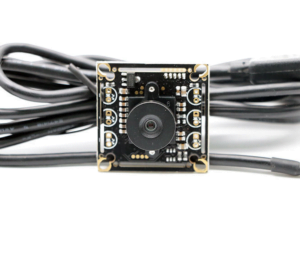

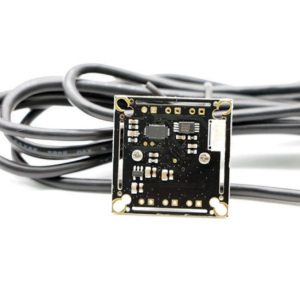

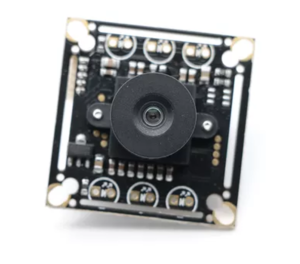

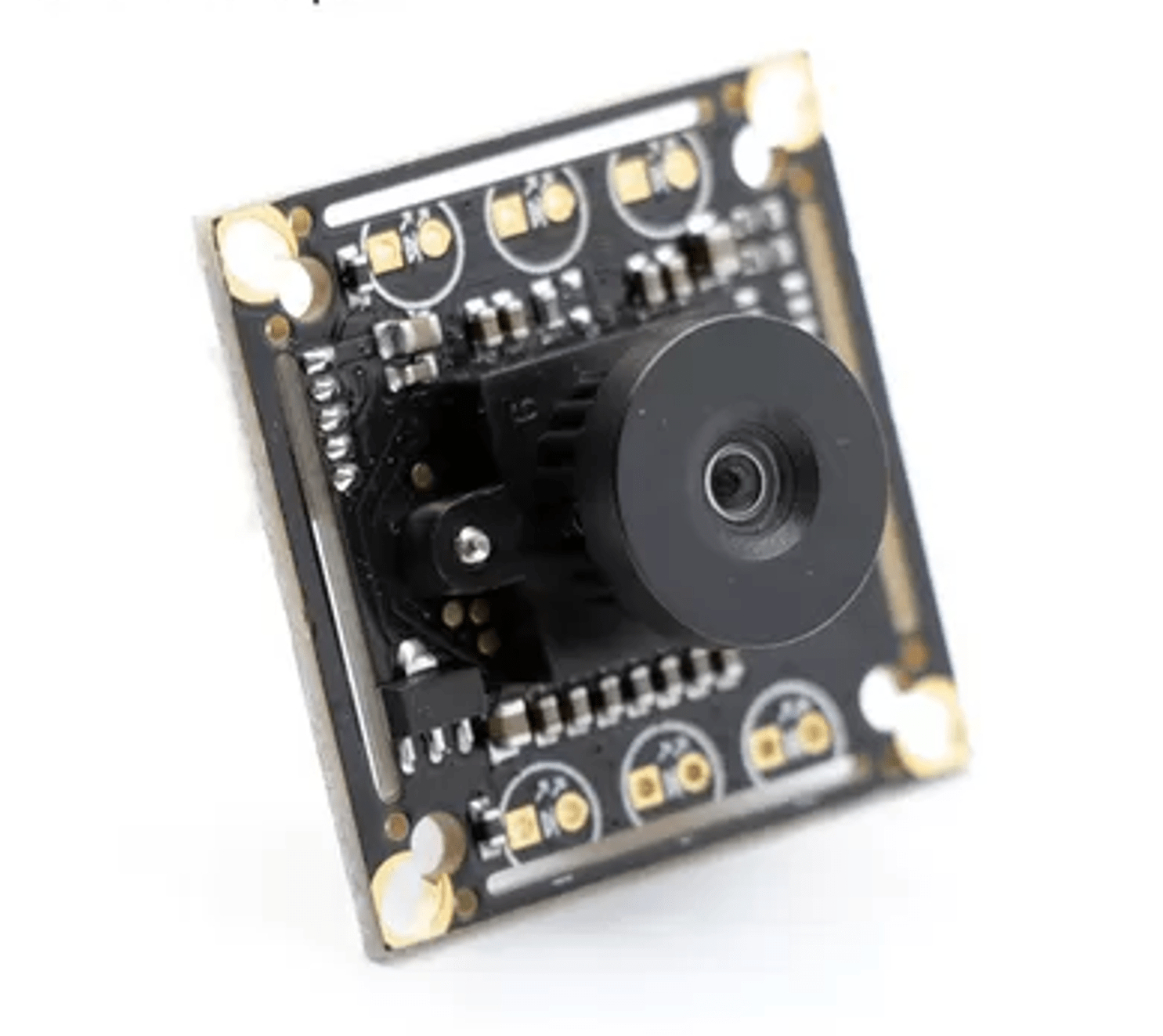

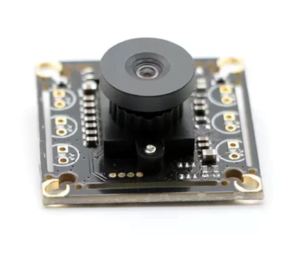

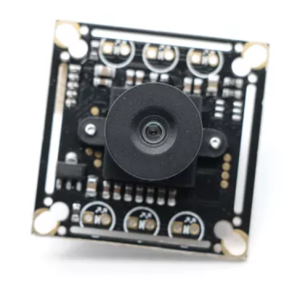

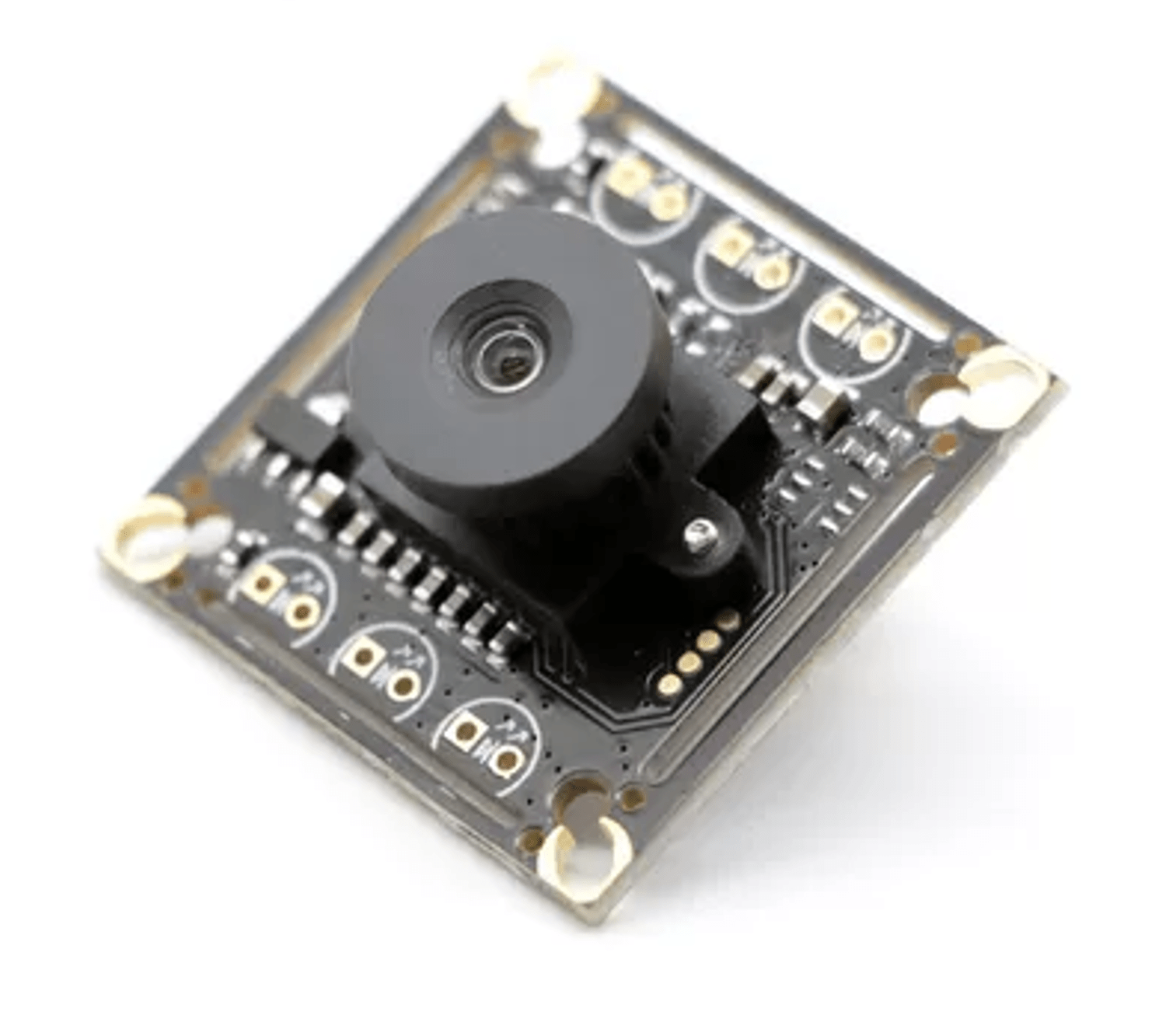

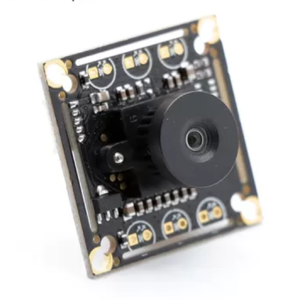

16MP,SONY IMX298 Camera Module,Fixed Focus
This is the highest pixel USB camera module we can currently make, it’s 16MP with SONY IMX298. Sony IMX298 CMOS was released in June 2015. Its photosensitive area is 1/2.8 inches, the unit pixel size is 1.12μm, and the maximum support is 16 million. Pixel (4608*3456 resolution) image output. In terms of features, IMX298 is an RGBW four-color architecture, supporting PDAF phase focusing and high dynamic range HDR recording.
https://dlscorp.com/wp-content/uploads/2019/08/ProductBrief_IMX298_20160210.pdf
Detail Information
| Type: | USB Camera Module | Sensor: | 1/2.8’’ Omnivision imx298 |
|---|---|---|---|
| Resolution: | 16MP | Dimensions: | Customizable |
| Lens FOV: | 70°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Lens |
Key Feature:
16MP resolution with SONY IMX298 CMOS sensor
Fixed Focus
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
4656×3496@10FPS; 4208×3120@10FPS; 4000×3000@10FPS; 3264×2448@10FPS; 2592×1944@10FPS; 2320×1744@30FPS; 2304×1728@30FPS; 2048×1536@30FPS; 1920×1080@30FPS; 1280×720@30FPS; 800×600@30FPS; 640×480@30FPS;
Specification
| Model No | hstd-16MP-IMX298 |
| Sensor | 1/2.8’’ SONY IMX298 CMOS |
| Pixel | 16 Mega Pixel |
| Most effective pixels | 4656 (H) x 3496 (V) |
| Pixel Size | 1.12µm x 1.12µm |
| Focus type | Fixed Focus |
| Compression format | MJPG |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
