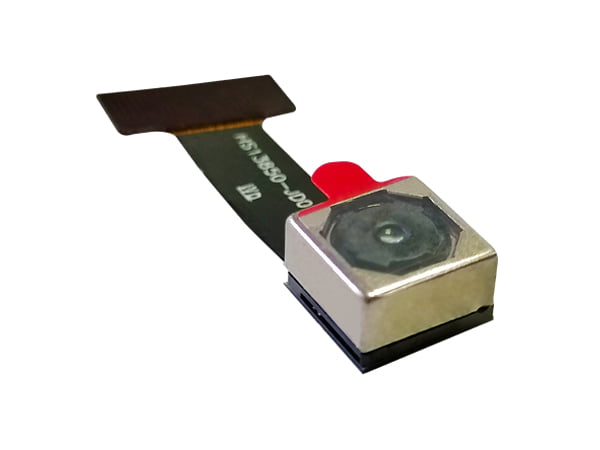

120fps MIPI camera module Auto Focus camera with OV13853
- Ultra-High Speed Frame Rate Capture: Equipped with advanced image processing technology, it achieves 120 frames per second (fps) high-speed continuous shooting, effortlessly capturing every dynamic detail, from sports events to cherished moments of your child’s growth.
- Precision Auto Focus Imaging: Featuring a built-in auto focus system, it quickly and accurately locks onto your subject, regardless of distance, ensuring every photo and video is crisp, sharp, and filled with details.
- High-Performance OV13853 Sensor: Armed with the industry-leading OV13853 image sensor, it boasts exceptional low-light sensitivity and a wide dynamic range, capturing bright and vibrant images even in dim environments.
- Efficient MIPI Interface Transmission: Utilizing the MIPI (Mobile Industry Processor Interface) for high-speed and stable data transmission, it minimizes latency and enhances the shooting experience, while supporting seamless integration with various embedded systems.
- Compact Design, Easy Integration: Boasting a compact and sleek design, it is conveniently integrated into a wide range of smart devices, such as drones, security surveillance systems, and intelligent robots, providing robust visual support for diverse application scenarios.
Detail Information
| Type: | MIPI Camera Module | Sensor: | 1/3.06’’ OV13853 |
|---|---|---|---|
| Resolution: | 4208*3120 | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Lens |
Key Feature:
13MP resolution with 1/3.06’’ OV13853 CMOS sensor
Auto Focus
1.12µm x 1.12µm
High sensitivity, high dynamic range
UVC compliant, Plug & Play
Support Linux, Android, Mac and Windows
Customization is supported
It supports the below resolution & frame rate:
MJPG:
4208*3120 30FPS 3840*2160 30fps
2592*1944 30fps2048*1536 60fps
1920×1080 60fps 1280×720 120fps
800×600 120fps 640×480 120fps
320×240 120fps
Specification
| Model No | hstd-13MP-OV13853-AF-mipi |
| Sensor | 1/3’’ OV13853 CMOS |
| Pixel | 13 Mega Pixel |
| Most effective pixels | 4208*3120 30FPS |
| Pixel Size | 1.12um*1.12um |
| Focus type | Auto Focus |
| Compression format | MJPG(optional) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Chroma | Color, RGB |
| Interface type | USB2.0 |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
|
Adjustable Parameters |
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens |
H FOV: 100° |
| F/NO=2.4 | |
| Focal length: 2.8mm | |
| Thread size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 300mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AEB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Dimension | 38MMx38MM (Compatible with 32MMx32MM) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Camera Module Application Areas：
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
#telecommunications #iot #robotics #ai #embedded #hardware #medicaldevice #drone #artificialintelligence #security #surveillance #video #imaging #3d #facialrecognition #camera #electronics #robot #consumerElectronics #machinevision #deeplearning #vr #ar #virtualreality #accesscontrol #tablet #smartphone
Shenzhen HSTD Import and Trade Co., Ltd.,

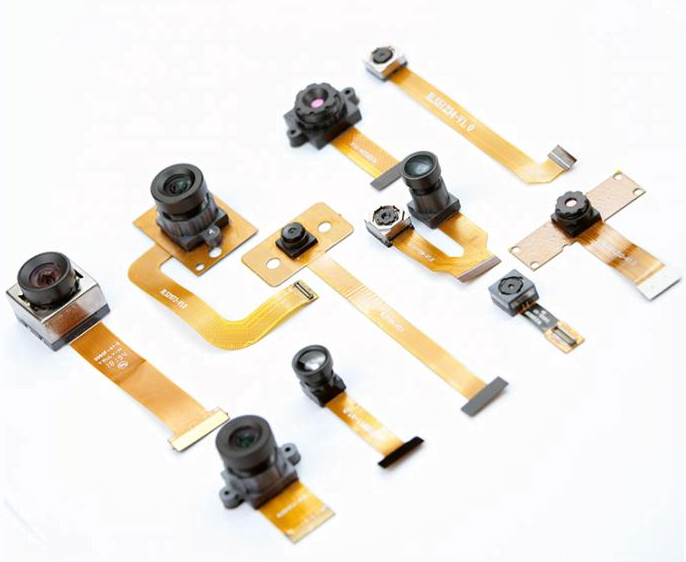

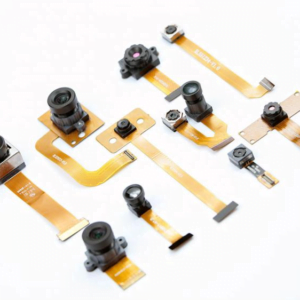

We customize all kinds of AHD /USB /MIPI /DVP /IPC camera module from 1 MP to 48 MP as per your request
